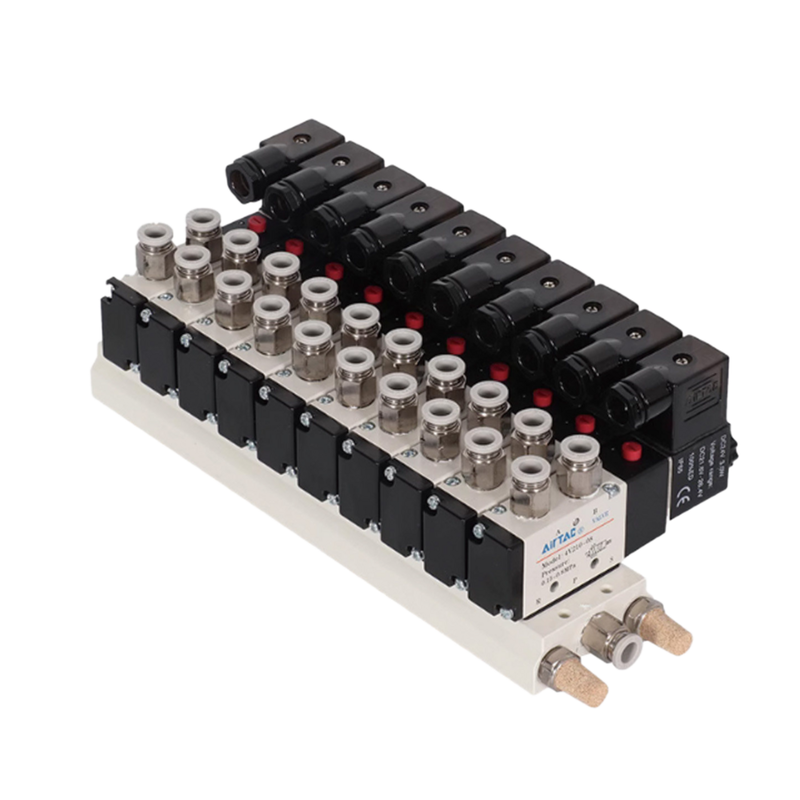

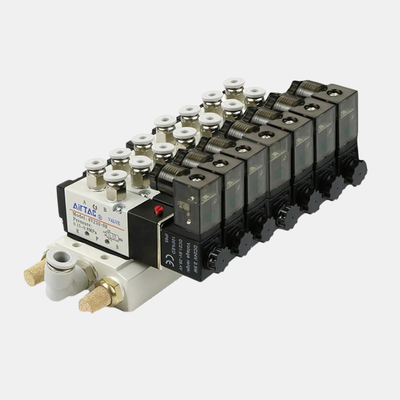

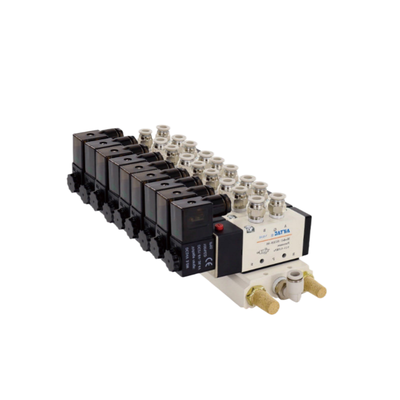

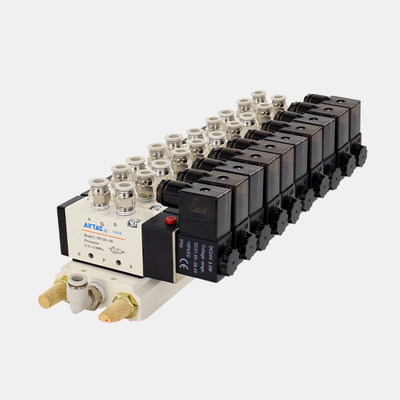

Airtac 4V310-10 Solenoid Valve Manifold Group 7 8 9 10 Station Central Air Inlet Aluminum Alloy Base Unified Exhaust Layout For Multi Channel Air Control

Product Description:

The 4V series represents a versatile collection of pilot-operated 5/2-way pneumatic solenoid valves. This series includes individual replacement coils and pre-assembled multi-station manifold kits designed to provide dependable directional control of compressed air in various industrial automation applications. The valves come in port sizes ranging from M5 and 1/8″ up to 1/2″. Their effective cross-sectional areas vary from 12 mm² to 50 mm², and flow coefficients (Cv) range between 0.56 and 2.80, allowing them to accommodate different actuator dimensions and speed demands.

These valves are available in several configurations: as complete single or double solenoid units, as valve bodies for manifold integration or replacements, and as individual AC220V or DC24V replacement coils intended for on-site maintenance. Multi-station manifold kits come pre-configured with 2 to 10 stations for the 4V210-08 and 4V110-06 models, while special kits are offered for the 4V310-08 and 4V310-10 series. The integrated manifold layout merges multiple valves onto a single, robust base, which eases installation procedures and conserves space within compact control panels. Moreover, centralized supply and exhaust ports minimize the need for external fittings and reduce potential leak points in comparison to piping each valve separately. Each station supports independent wiring, enabling a combination of AC and DC voltages on the same manifold block. This feature adds flexibility for systems that integrate PLC controls alongside manual safety stations.

The valve bodies are made from aluminum alloy and feature a sliding column design that ensures excellent sealing and quick responsiveness. The internal bores are precisely machined to decrease friction, facilitating low starting pressure and extending the service life of the valves. These valves operate without the need for oil lubrication; however, if lubricated air is used, it must be supplied continuously, with ISO VG32 or equivalent recommended. A manual override function is provided as standard, allowing installation and debugging without electrical power. The coils are rated at IP65, consuming about 3 VA for AC versions and 3 W for DC variants. The standard operational pressure spans from 0.15 to 0.8 MPa (21 to 114 psi), with a maximum proof pressure of 1.2 MPa (175 psi). The valves can function reliably within a temperature range of -20°C to +70°C.

Features:

The valve port sizes range from M5 and 1/8″ up to 1/2″, accommodating various models such as 4V110-M5, 4V110-06, 4V210-06, 4V210-08, 4V310-08, 4V310-10, and 4V410-15. This versatility ensures compatibility with a broad spectrum of pneumatic applications.

Featuring a 5/2-way pilot-operated directional control, these valves deliver reliable switching performance for double-acting cylinders and pneumatic actuators. Both single and double solenoid options are available, where the double solenoid designs offer a memory function that maintains position holding.

For users seeking integration flexibility, a valve body only option is provided, which is ideal for manifold integration or replacement scenarios where coils and wiring are already installed. Additionally, individual replacement coils in AC220V and DC24V are available, enabling field servicing without the necessity to replace the entire valve assembly.

Multi-station manifold kits are offered, featuring pre-assembled configurations ranging from 2 to 10 stations for models such as 4V210-08 and 4V110-06. Kits for the 4V310-08 and 4V310-10 models are also available, helping to reduce both installation space and assembly time significantly.

The integrated manifold base consolidates multiple valves onto a single solid base, incorporating centralized supply and exhaust ports. This design allows for voltage blending on a single manifold since independent station wiring supports mixing AC and DC voltages within one compact block.

Constructed from an aluminum alloy, the valve body offers a lightweight yet durable solution suitable for industrial environments. Its sliding column structure ensures excellent sealing and a sensitive response with minimal friction. The valves operate lube-free, which simplifies maintenance and helps prevent oil mist contamination that could affect food processing or electronics assembly.

A manual override is standard on these valves, facilitating installation, debugging processes, and emergency operation when required. The coils have an IP65 protection rating, making them dust-tight and resistant to water jets, thus capable of withstanding demanding environmental conditions.

With an operating pressure range of 0.15 to 0.8 MPa, these valves are suitable for a wide variety of industrial pneumatic systems. They also feature a proof pressure of up to 1.2 MPa, providing a reliable safety margin against pressure surges. Finally, their wide operating temperature range from -20°C to +70°C ensures performance across standard industrial ambient conditions.

Technical Parameters:

Applications:

The double-acting cylinder control utilizes a 5/2-way function to efficiently manage the extend and retract operations of pneumatic actuators. This setup ensures precise and reliable movement for various industrial applications.

Multi-cylinder automation panels include manifold kits that centralize air supply and wiring. These panels are designed for compact control cabinets, accommodating up to ten valve stations, which facilitates streamlined control and maintenance.

Mixed-voltage control systems offer versatility by allowing a single manifold to support both DC 24V PLC-driven stations and AC 220V manual safety stations. This integration enhances operational flexibility within complex automation environments.

In the realm of industrial automation, directional control plays a crucial role in manufacturing, assembly, and packaging machinery. These control systems contribute to improved efficiency and precision throughout production processes.

For material handling applications, the control of grippers, clamps, and positioning actuators is essential. These components enable secure and accurate manipulation of materials, supporting various industrial tasks.

The food and electronics assembly sectors benefit from lube-free operation, which prevents oil contamination on production lines. This feature is critical for maintaining product cleanliness and meeting stringent quality standards.

Field maintenance and retrofit options are designed for convenience and cost-effectiveness. By offering replacement coils and valve body-only parts, targeted repairs can be performed without the need to replace the entire manifold assembly.

Customization:

Our AirTac 4V210-08 pneumatic valve offers exceptional customization services to meet your specific needs. As a high-quality solenoid valve manufactured in China, it is CE certified, ensuring reliable performance and safety.

The 5/2-way pilot-operated directional control valve is designed for air fluids filtered to 40 μm, with a fast response time of ≤0.03 seconds. The standard seal material is NBR, providing durability and excellent sealing performance.

We provide multiple coil voltage options including DC24V, AC110V, and AC220V to suit various applications. The solenoid valve is packaged securely in cartons to ensure safe delivery.

With a minimum order quantity of just 1 piece and a supply ability of 5000 pieces per month, we offer flexible pricing through negotiation. Delivery time ranges from 1 to 7 work days after payment, supporting payment terms via T/T, Western Union, and Paypal.

Choose our AirTac pneumatic valve customization services for a reliable solenoid valve solution tailored to your operational requirements.

Support and Services:

Our Pneumatic Solenoid Valve product is designed to offer reliable and efficient control of air flow in various pneumatic systems. For technical support, we provide comprehensive assistance including installation guidance, troubleshooting, maintenance tips, and performance optimization.

If you encounter any issues with the Pneumatic Solenoid Valve, our support team is ready to help diagnose problems related to electrical connections, valve operation, and system integration. We recommend reviewing the user manual and wiring diagrams before contacting support.

We also offer customized services such as product selection advice, system compatibility checks, and training sessions to ensure optimal use of the Pneumatic Solenoid Valve in your applications.

To maintain peak performance, regular inspection and cleaning of the valve components are advised, along with adherence to the specified operating conditions outlined in the product documentation.

Our commitment is to provide timely and effective technical support and services to maximize the lifespan and functionality of your Pneumatic Solenoid Valve.
