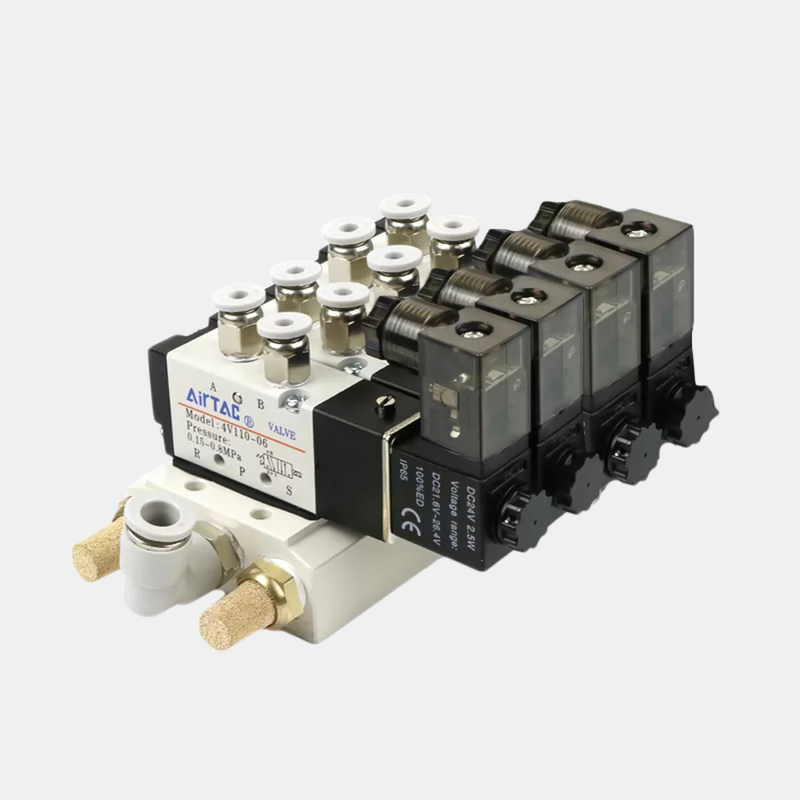

Airtac 4V310-08 Multi Station Solenoid Valve Manifold Kit 2 / 3 / 4 / 5 / 6 Position Integrated Valve Group Internal For Multi Channel Pneumatic Circuit

Product Description:

The 4V series offers a versatile selection of pilot-operated 5/2-way pneumatic solenoid valves, including individual replacement coils and pre-assembled multi-station manifold kits. These products are meticulously designed to ensure dependable directional control of compressed air within industrial automation systems. The series supports a range of port sizes from M5 and 1/8″ up to 1/2″, featuring effective cross-sectional areas that expand from 12 mm² to 50 mm². Additionally, flow coefficients (Cv) span from 0.56 to 2.80, catering to varying actuator dimensions and speed demands.

Valves in this series are available as complete single or double solenoid units, valve bodies intended for manifold integration or replacement, and individual replacement coils compatible with AC220V or DC24V power sources, ideal for on-site maintenance. The multi-station manifold kits come pre-configured with 2 to 10 stations for the 4V210-08 and 4V110-06 models. There are also specialized kits for the 4V310-08 and 4V310-10 series. This integrated manifold design streamlines the installation process by consolidating multiple valves on one robust base, saving valuable space in compact control cabinets. It also features centralized supply and exhaust ports, which minimize the need for external fittings and reduce potential leakage compared to separate valve piping. Moreover, the independent station wiring design permits the combination of AC and DC voltages within a single manifold block, offering great flexibility for systems that integrate PLC controls alongside manual safety stations.

Constructed from durable aluminum alloy, the valve body utilizes a sliding column structure that ensures tight sealing and responsive operation. Its internal bore is precisely machined to lower friction levels, which results in a low starting pressure and extends the valve's service life. Notably, these valves do not require oil lubrication; however, if lubricated air is used, it must be supplied continuously (ISO VG32 or an equivalent lubricant is recommended). A manual override feature is standard, facilitating installation and testing without the need for electrical power. The coils are rated at IP65 for protection and have power consumption around 3 VA for AC variants or 3 W for DC versions, depending on the model.

The standard operating pressure range for the 4V series valves spans from 0.15 to 0.8 MPa (21 to 114 psi), with a maximum proof pressure of 1.2 MPa (175 psi). These valves are also designed to operate reliably within a temperature range of -20°C to +70°C, making them suitable for a wide range of industrial environments.

Features:

The port size options range from M5 and 1/8″ up to 1/2″, accommodating a variety of models including the 4V110-M5, 4V110-06, 4V210-06, 4V210-08, 4V310-08, 4V310-10, and 4V410-15 series. This range ensures compatibility across multiple applications.

Designed as a 5/2-way pilot-operated directional control valve, it offers reliable switching capabilities tailored for double-acting cylinders and pneumatic actuators. Users can choose between single and double solenoid configurations, where the double solenoid versions feature a memory function to maintain position holding.

For more flexible installation options, there is a valve body only version available, ideal for manifold integration or replacement scenarios where coils and wiring are pre-existing. Additionally, individual replacement coils in AC220V and DC24V are offered for convenient field servicing without the need to replace the entire valve assembly.

Multi-station manifold kits come pre-assembled in configurations ranging from 2 to 10 stations, specifically designed for models such as 4V210-08 and 4V110-06, with additional kits supporting the 4V310-08 and 4V310-10 models. These kits help reduce installation space and shorten assembly time significantly.

An integrated manifold base further streamlines setup by consolidating multiple valves onto a single rugged base, which features centralized supply and exhaust ports. Independent wiring on each station enables voltage blending on one compact manifold block, allowing both AC and DC voltages to coexist efficiently.

Constructed from durable aluminum alloy, the valve body is lightweight yet robust, suitable for demanding industrial environments. The sliding column structure ensures excellent sealing and a highly sensitive response with minimal friction.

The valve operates without lubrication, simplifying maintenance procedures and preventing oil-mist contamination, which is critical in food processing or electronics assembly. A manual override is included as a standard feature to assist with installation, debugging, and emergency operations.

Coils are protected to IP65 standards, making them dust-tight and resistant to water jets, ensuring reliable performance in harsh conditions. The operating pressure range spans from 0.15 to 0.8 MPa, suitable for a broad spectrum of industrial pneumatic systems, while a proof pressure rating of 1.2 MPa offers a safe margin against pressure surges.

Finally, the valve is designed to operate efficiently within a wide temperature range from -20°C to +70°C, accommodating typical industrial ambient temperature requirements.

Technical Parameters:

Applications:

Customization:

AirTac offers customized G1/4 pneumatic solenoid valve solutions with the model number 4V210-08, designed to meet diverse application needs. Manufactured in China and CE certified, this pneumatic valve ensures reliable performance and high quality. We provide a minimum order quantity of just 1 unit, with pricing available through negotiation to suit your project requirements.

Our pneumatic valve features a 5/2-way pilot-operated directional control valve type, made from durable aluminum alloy body material and equipped with standard NBR seal material. It is optimized for use with filtered air up to 40 μm, ensuring efficient and long-lasting operation.

Customers can choose from multiple coil voltage options including DC24V, AC110V, and AC220V to best fit their system specifications. Packaging is handled securely in cartons to ensure safe delivery.

With a strong supply ability of 5000 pieces per month, we guarantee prompt delivery within 1-7 working days after payment. Payment terms are flexible, accepting T/T, Western Union, and PayPal.

Trust AirTac for your G1/4 pneumatic solenoid valve needs, combining quality, customization, and excellent service to support your pneumatic valve applications.
