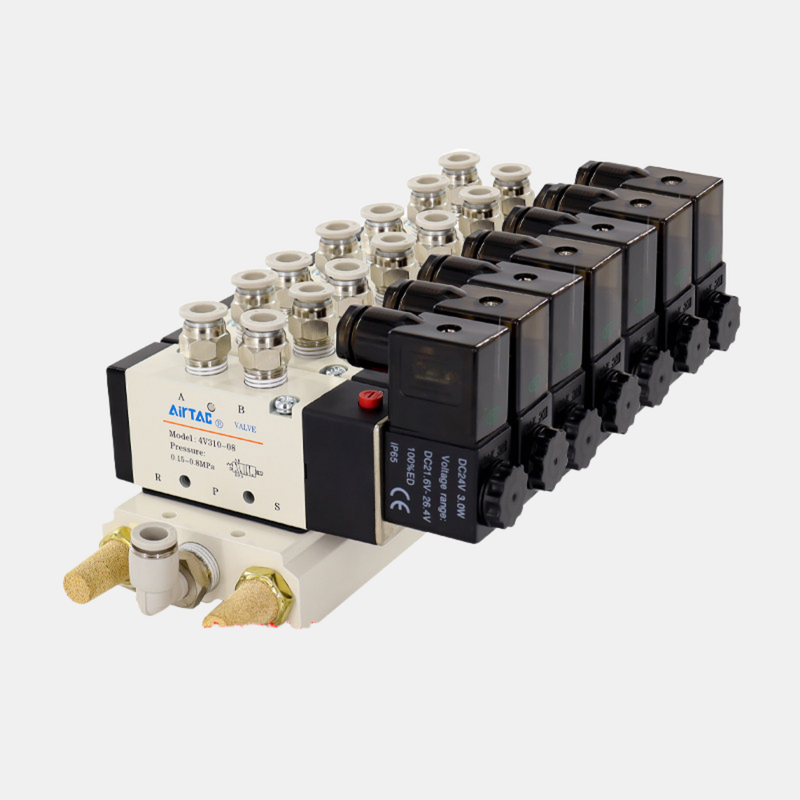

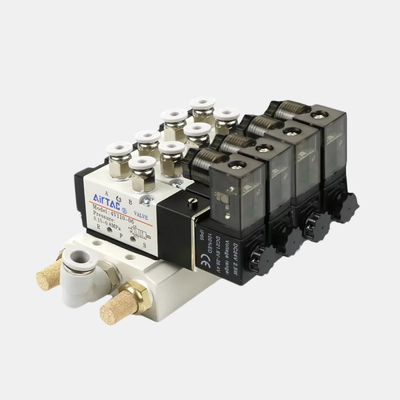

Airtac 4V310-10 Pneumatic Control Solenoid Valve Manifold Kit 2 3 4 5 6 Station Manual Override For Debugging Fast Response Large Flow Pneumatic Valve Unit

Product Description:

The 4V series offers a wide selection of pilot-operated 5/2-way pneumatic solenoid valves, including individual replacement coils and pre-assembled multi-station manifold kits, all designed to ensure reliable directional control of compressed air in industrial automation applications. This series features valves with port sizes ranging from M5 and 1/8″ up to 1/2″. Their effective cross-sectional areas vary from 12 mm² to 50 mm², and the flow coefficients (Cv) range from 0.56 to 2.80, allowing compatibility with various actuator sizes and speed requirements.

These valves are offered as complete single or double solenoid assemblies, valve bodies for manifold integration or replacement, and individual replacement coils for AC220V or DC24V, suitable for on-site servicing. The multi-station manifold kits come pre-configured in arrangements of 2 to 10 stations for the 4V210-08 and 4V110-06 models. Dedicated kits are also available for the 4V310-08 and 4V310-10 series. The integrated manifold design merges multiple valves on a robust single base, simplifying installation and conserving space within compact control cabinets. Centralized supply and exhaust ports minimize the need for external fittings, reducing potential leakage points compared to separate valve piping. Additionally, independent station wiring supports the combination of AC and DC voltages within a single manifold block, providing flexibility for systems that integrate PLC controls alongside manual safety stations.

Constructed from aluminum alloy, the valve body incorporates a sliding column mechanism that ensures effective sealing and a responsive operation. The internal bore is precisely machined to lower friction, which leads to a low starting pressure and extended service life. These valves do not require oil lubrication; however, if lubricated air is used, it must be supplied continuously with a recommended viscosity equivalent to ISO VG32. A manual override feature is standard, allowing for installation and troubleshooting without the need for electrical power. The solenoid coils have an IP65 rating and consume approximately 3 VA for AC variants or 3 W for DC variants.

The standard operating pressure range for the 4V series valves is from 0.15 to 0.8 MPa (21 to 114 psi), and they boast a proof pressure capability of up to 1.2 MPa (175 psi). Their operating temperature spans from -20°C to +70°C, ensuring reliable performance in a variety of environmental conditions.

Features:

The valve port sizes range from M5 and 1/8″ up to 1/2″, accommodating various models including 4V110-M5, 4V110-06, 4V210-06, 4V210-08, 4V310-08, 4V310-10, and 4V410-15. This wide range allows for versatile application across different pneumatic systems.

Featuring a 5/2-way pilot-operated directional control design, these valves ensure reliable switching performance when used with double-acting cylinders and pneumatic actuators. This makes them suitable for precise control in automation processes.

Customers can choose between single and double solenoid configurations. Double solenoid models offer a memory function that holds positions securely, enhancing operational stability. Additionally, a valve body only option is available, designed for manifold integration or replacements where coils and wiring are already installed.

For maintenance and servicing needs, individual replacement coils are offered. Both AC220V and DC24V coils can be replaced in the field without the necessity to swap out the entire valve, improving cost efficiency and reducing downtime.

Multi-station manifold kits come pre-assembled with configurations from 2 to 10 stations for models like 4V210-08 and 4V110-06. Kits are also available for the 4V310-08 and 4V310-10 models. These kits minimize installation space requirements and shorten the assembly time.

The integrated manifold base design consolidates multiple valves onto a single robust base. This setup centralizes supply and exhaust ports, optimizing space and streamlining pneumatic connections.

Voltage blending capability on a single manifold allows independent station wiring that supports mixing of AC and DC voltages within one compact block. This flexibility caters to varied power supply needs in industrial environments.

Constructed from aluminum alloy, the valve body is lightweight yet highly durable, making it ideal for demanding industrial settings. The sliding column structure ensures excellent sealing and sensitive response with minimal friction.

Designed for lube-free operation, these valves reduce maintenance requirements and prevent oil-mist contamination, which is especially beneficial in food and electronics manufacturing applications. A manual override feature is included as standard, facilitating installation, debugging, and emergency usage.

The coils are rated with IP65 protection, making them dust-tight and resistant to water jets, thus suitable for harsh working conditions. The valves operate efficiently within a pressure range of 0.15 to 0.8 MPa and have a proof pressure rating of 1.2 MPa to provide a safety margin against pressure surges.

Finally, these valves can function effectively across a wide temperature range from -20°C to +70°C, accommodating most standard industrial ambient environments.

Technical Parameters:

Applications:

The double-acting cylinder control utilizes a 5/2-way valve function, enabling precise extend and retract operations for pneumatic actuators. This configuration ensures efficient and reliable control in various industrial applications.

Multi-cylinder automation panels incorporate manifold kits that centralize both the air supply and wiring. This design supports compact control cabinets featuring up to ten valve stations, streamlining installation and maintenance processes.

A single manifold can accommodate mixed-voltage control systems, hosting both DC 24V PLC-driven stations and AC 220V manual safety stations simultaneously. This flexibility enhances system integration and operational safety.

These control solutions play a vital role in directional control within manufacturing, assembly, and packaging machinery. They ensure smooth operation and precise actuation, facilitating efficient industrial automation.

The control systems are used to operate grippers, clamps, and positioning actuators in material handling processes. Their reliable performance supports accurate and repeatable movement in automated handling tasks.

With lube-free operation, these systems prevent oil contamination on production lines, making them especially suitable for food processing and electronics assembly applications where cleanliness is critical.

Maintenance and retrofit are simplified with options to replace only coils or valve bodies, allowing targeted repairs without the need to replace the entire manifold assembly. This approach reduces downtime and maintenance costs.

Customization:

Our AirTac 4V210-08 pneumatic solenoid valve offers comprehensive product customization services to meet your specific needs. As a high-quality G1/4 pneumatic solenoid valve made from durable aluminum alloy, it is designed for reliable performance in various industrial applications.

We provide flexible options for coil voltage, including DC24V, AC110V, and AC220V, allowing you to select the best fit for your system. The valve type is a 5/2-way pilot-operated directional control valve, suitable for controlling air flow precisely, with filtered air (up to 40 μm) compatibility.

Seals made from standard NBR material ensure a tight and efficient operation. Our solenoid valves are CE certified, guaranteeing compliance with international safety and quality standards.

With a minimum order quantity of just 1 piece, we accommodate both small and large orders. Pricing is negotiable to offer you the best value. Packaging is secure in cartons to protect the product during shipment.

We maintain a strong supply ability of 5000 pieces per month and ensure fast delivery within 1-7 work days after payment. Payment terms include T/T, Western Union, and PayPal for your convenience.

Choose our AirTac pneumatic valve customization services for reliable, efficient, and tailored pneumatic solenoid valve solutions.
