Product Description:

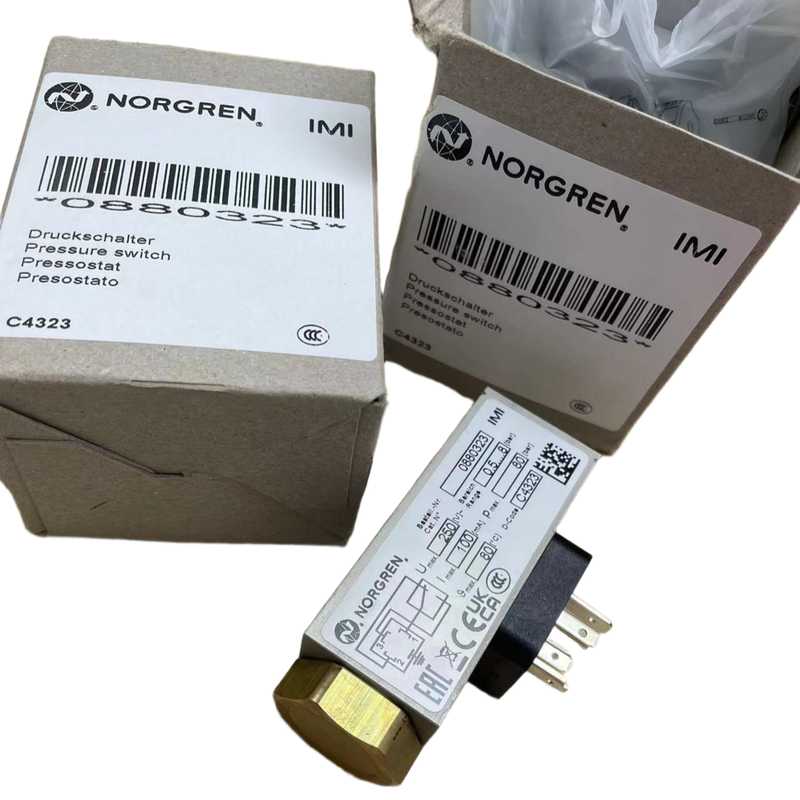

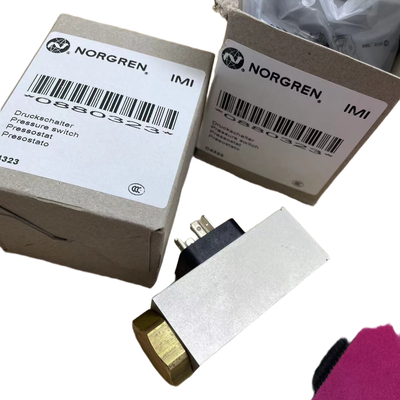

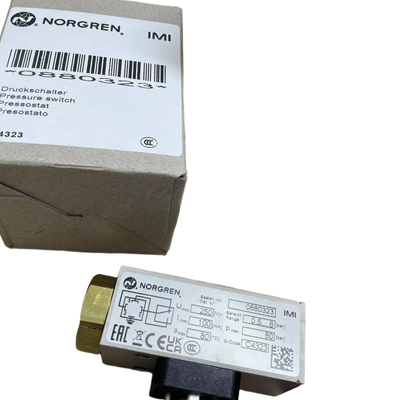

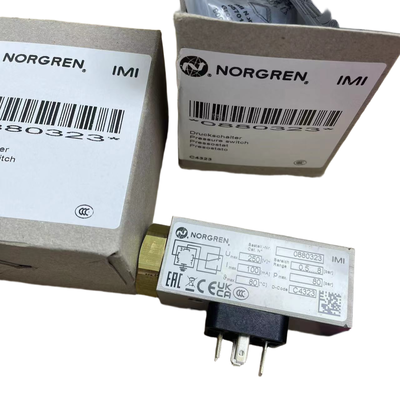

NORGREN 18D Series Electro-Mechanical Pneumatic Pressure Switch
The NORGREN 18D Series (Model 0880 / 0881) electro-mechanical pneumatic pressure switch is a reliable diaphragm-actuated pressure monitor designed for industrial automation applications. It is widely used for pressure alarm systems, interlock functions, and loop control in various automated processes. This series supports vacuum pressures up to 30 bar and offers multiple port options, including G1/4, 1/4 NPT, and flange mounting configurations.
Users can choose between two electrical connection styles: DIN EN 175301-803 Form-A or M12×1 IEC 947-5-2. Additionally, the product lineup includes LABS-free variants and special brass-body versions specifically intended for water service applications. These variations make the switch suitable for handling neutral gases, liquids, and water-based media under different working conditions.
The pressure switch features a gold-plated contact microswitch that has been certified by UL and CSA, ensuring intrinsic safety and reliable operation even under challenging conditions. It is built to withstand vibrations up to 15 g and boasts a mechanical service life of up to 10 million switching cycles, delivering excellent repeatability. The standard housing material is aluminium alloy, with brass housing available for models designed for water applications. Sealing options include NBR and FPM to accommodate various environmental requirements. Its maximum ingress protection rating is IP67, making it suitable for harsh factory environments.
When the system pressure reaches the designated set-point, the single-pole double-throw (SPDT) micro-switch outputs an electrical signal. This feature enables machine interlock, alarm triggering, and on-off control for pneumatic machinery, hydraulic circuits, and water-treatment equipment.
Note: It is recommended that set-points be set within the middle of the pressure range. Avoid exceeding the rated pressure indicated on the nameplate. When dealing with inductive loads, appropriate spark-quenching protection circuits are necessary. Connectors must be purchased separately, as DIN or M12 plugs are not included.
Features:
Experience authentic NORGREN IMI quality with the comprehensive 18D‑0880 series, offering a variety of pressure ranges and port options to suit your specific application needs.
This diaphragm-operated system handles operating pressures from ‑1 to 30 bar (‑14 to 435 psi) and can withstand a maximum over-pressure of 80 bar, ensuring reliable performance under demanding conditions.
Equipped with a gold-plated contact micro-switch, the device features UL and CSA approvals and boasts an impressive mechanical lifespan of 10 7 switching cycles, guaranteeing durability and safety.
Designed for high vibration resistance up to 15 g, it supports intrinsically safe operation, making it suitable for use in challenging environments.
The product offers excellent ingress protection ratings: IP65 for DIN connectors and IP67 for M12×1 connections, providing reliable sealing against dust and water ingress.
It is compatible with neutral, non-flammable gases and liquids, and features a dedicated brass body variant specifically for water service. The system accommodates media with viscosities of up to 1000 mm 2 /s.
The switch output is SPDT with fixed hysteresis, and the device allows for unrestricted mounting positions, enhancing installation flexibility.
Seal materials are available in NBR or FPM, with LABS-free versions offered as well, covering the full vacuum range according to your application requirements.
Two electrical interfaces are supported: DIN EN175301‑803 Form‑A and M12×1 IEC947‑5‑2, providing versatile connectivity options.
Technical Parameters:
| Operating Pressure |
-1 … 30 Bar (-14 … 435 Psi) |
| Port Size |
G1/4, 1/4 NPT, Flange Mounting |
| Actuation |
Diaphragm Type |
| Ingress Rating |
IP65 (DIN) |
| Brand |
IMI NORGREN |
| Series |
18D Series, 0880 / 0881 Model Family |
Applications:
This product offers reliable pressure monitoring and alarm functions specifically designed for industrial pneumatic automation systems. It ensures that any irregular pressure conditions are promptly detected and addressed to maintain system safety and efficiency.
Additionally, it provides interlock protection for compressors and vacuum pumps, safeguarding these critical components from operational hazards by preventing improper pressure conditions.
The system also facilitates accurate pressure signal feedback within hydraulic fluid power systems, enabling precise control and monitoring of hydraulic operations across various industrial applications.
Suitable for water-treatment and water-supply equipment, this solution includes brass water-service variants that are designed to withstand the specific demands of these environments, ensuring durability and reliable performance.
It is ideal for pressure detection in packaging machinery, machine tools, and conveyor equipment, contributing to the smooth operation and safety of these machines by continuously monitoring pressure levels.
The product also supports over-pressure alarm functions and machine start-stop control for industrial fluid pipelines, providing critical protection against pressure-related failures and assisting in automated operational control.
Furthermore, it offers general-purpose vacuum monitoring and control tailored for various machinery, enhancing system performance and preventing vacuum-related issues in industrial settings.
