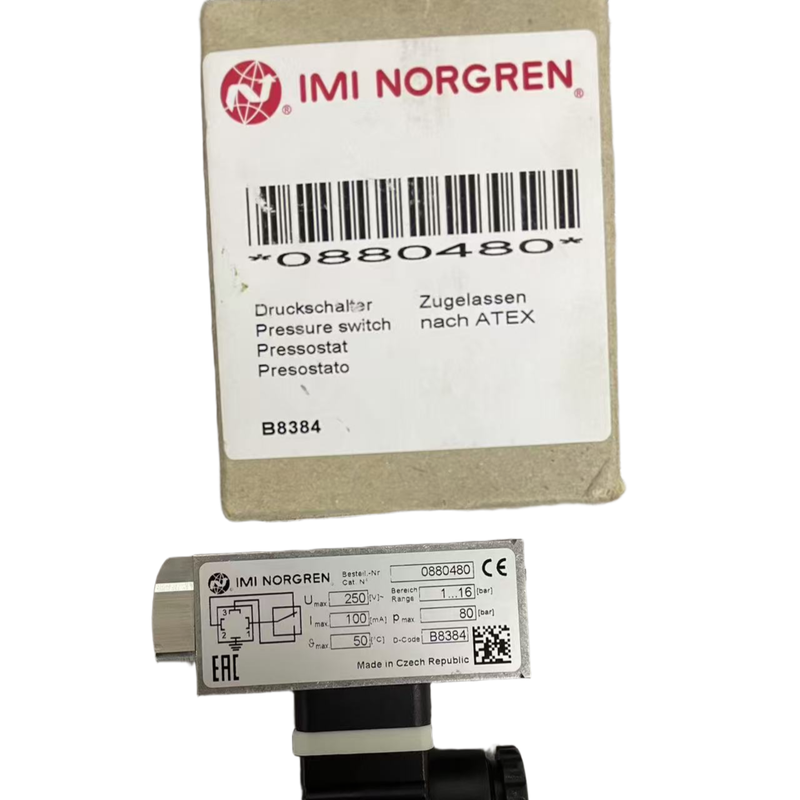

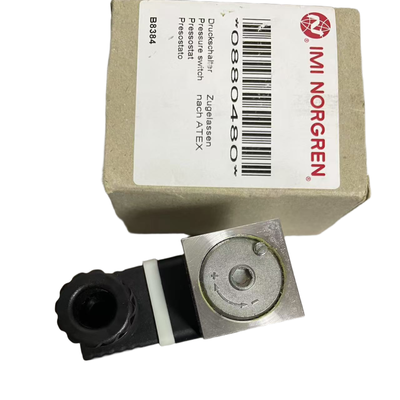

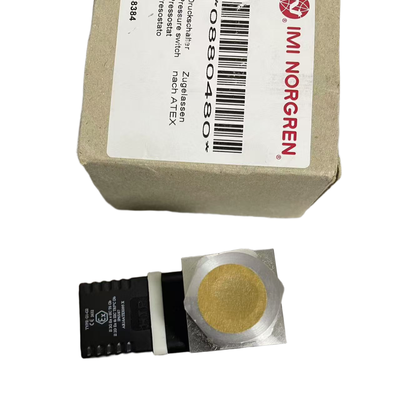

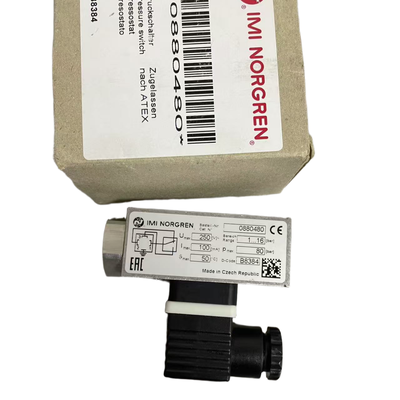

Explosion Proof NORGREN 0880480 Pressure Switch G1/4 Thread 1 to 16bar Pressure Control Switch for Hazardous Location

Product Description:

The NORGREN 18D Series (Model 0880 / 0881) is an electro-mechanical pneumatic pressure switch designed for industrial automation applications. This proven diaphragm-actuated pressure monitor is ideal for pressure alarm, interlock, and loop control systems. Manufactured by IMI NORGREN, it supports a wide pressure range from vacuum levels up to 30 bar working pressure. Users can choose from multiple port options including G1/4, 1/4 NPT, and flange mounting to suit various installation needs.

For electrical connectivity, the pressure switch offers two types of connections: DIN EN 175301-803 Form-A and M12×1 IEC 947-5-2. Additionally, there are LABS-free variants available along with brass-body special versions tailored for water service. These options make the series suitable for neutral gases, liquids, and water-based media under different working conditions.

The device is equipped with a gold-plated contact microswitch that is UL and CSA certified, ensuring intrinsically safe operation. It can resist vibrations up to 15 g and provides an outstanding mechanical service life of up to 10 ⁷ switching cycles while maintaining excellent repeatability. The standard housing is made of aluminum alloy, whereas models intended for water applications feature a brass housing. Seal materials include both NBR and FPM, and the pressure switch is rated with a maximum ingress protection of IP67, making it suitable for harsh factory environments.

When the system pressure reaches the preset set-point, the SPDT micro-switch activates, outputting an electrical signal used for machine interlocking, alarms, and on-off control of pneumatic machines, hydraulic circuits, and water-treatment equipment.

Note: It is recommended that the set-points be positioned preferably in the middle of the pressure range. Do not exceed the rated pressure indicated on the device nameplate. For inductive loads, spark-quenching protection circuits are required. Connectors such as DIN or M12 plugs are sold separately and are not included with the switch.

Features:

Discover the full range of the 18D‑0880 series, featuring genuine NORGREN IMI quality. This series offers various pressure ranges and port options to suit a wide array of applications.

The diaphragm-operated mechanism supports an operating pressure from -1 to 30 bar (-14 to 435 psi), with a maximum over-pressure tolerance of up to 80 bar. Each unit is equipped with a gold-plated contact micro-switch that comes with UL and CSA approvals, ensuring reliability with a mechanical life rated at 10 ⁷ switching cycles.

Designed to withstand high vibration environments, the switch can handle vibrations up to 15 g and features intrinsically safe operation for increased safety. The product also offers excellent ingress protection, with an IP65 rating for DIN connectors and IP67 for M12×1 connections.

Compatible with neutral, non-flammable gases and liquids, the 18D‑0880 series includes dedicated brass bodies specifically designed for water service. It accommodates media with viscosities up to 1000 mm²/s, ensuring versatile use across different industries.

This model provides an SPDT switch output along with fixed hysteresis, allowing unrestricted mounting positions for installation flexibility. Seal materials are selectable between NBR and FPM, with LABS-free versions available to meet full vacuum-range requirements.

Two electrical interface options are available: the DIN EN175301‑803 Form-A and the M12×1 IEC947‑5‑2, catering to diverse connection standards and user preferences.

Technical Parameters:

Applications:

Our systems provide precise pressure monitoring and alarm functions specifically designed for industrial pneumatic automation setups. This ensures safe and efficient operation by detecting any pressure anomalies promptly.

Additionally, we offer interlock protection for compressors and vacuum pumps, safeguarding equipment from potential damage caused by pressure irregularities. This feature helps maintain continuous and reliable performance.

For hydraulic fluid power systems, pressure signal feedback is integrated to allow accurate control and real-time monitoring of fluid pressure, enhancing the operation of hydraulic machinery.

The water-treatment and water-supply sector benefits from our brass water-service variants that are tailored to withstand the specific conditions in these applications, ensuring robust and long-lasting pressure detection.

Our solutions also cater to packaging machines, machine tools, and conveyor equipment, providing effective pressure detection to maintain optimal operation and prevent malfunctions.

Over-pressure alarms and machine start-stop control functions are implemented for industrial fluid pipelines, guaranteeing safety and operational efficiency by managing pressure levels accurately.

Furthermore, our general-purpose machinery solutions include vacuum monitoring and control capabilities, making them versatile for various industrial applications that require precise vacuum management.

Support and Services:

Norgren is committed to providing comprehensive technical support and services for its Solenoid Valve products to ensure optimal performance and customer satisfaction. Our technical support team is available to assist with product selection, installation guidance, troubleshooting, and maintenance advice. We provide detailed product documentation, including datasheets, installation manuals, and CAD files, to facilitate easy integration into your systems.

In addition to support, Norgren offers repair and refurbishment services to extend the life of your solenoid valves. Our experts can help diagnose issues and recommend the best solutions, whether it involves part replacement or complete servicing. We also provide training sessions and webinars to educate customers on the best practices for using and maintaining Norgren solenoid valves.

For custom applications, Norgren’s engineering team can collaborate with you to develop tailored solenoid valve solutions that meet specific requirements. Our commitment to quality and innovation ensures that you receive reliable, efficient, and durable products backed by expert service throughout the product lifecycle.

Packing and Shipping:

The Norgren Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is individually sealed in an anti-static bag to prevent moisture and dust contamination. The product is then placed in a custom-fit foam insert within a sturdy cardboard box to minimize movement and absorb shocks.

For shipping, the packaged valves are grouped in durable outer cartons labeled with handling instructions and product details. We use reliable courier services to guarantee timely and safe delivery. All shipments include tracking information and are insured to provide peace of mind to our customers.
