ASCO 1.5-inch Diaphragm C113826 SCG353A046 Pulse Valve Diaphragm Repair Kit

Product Description:

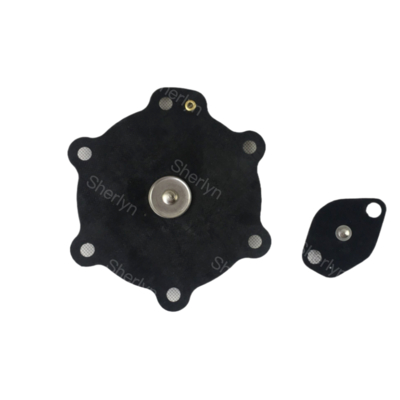

1-1/2" C113825 C113-825 NBR Diaphragm For ASCO Pulse Jet Valve

C113825, C1138-25 Diaphragm (Membrane) for ASCO pulse valve G353A045; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃.

Pulse Jet Valve is a solenoid pilot operated diaphragm valve specially designed to deliver extremely fast pulsing in reverse-jet dust collector systems. With its high flow rates, higher peak pressure and the fastest response times on the market it delivers optimal filter cleaning performance, while using significantly less air. This results in energy savings for the user.

Applications:

Industrial Bag-type Dust Removal System
Function: Control compressed air pulse blowing to remove the accumulated dust on filter bags

Industry Cases:
- Cement Plant: Dust collector at the kiln tail (smoke temperature < 80°C)
- Steel Plant: Dust removal at the sintering machine (requires pre-cooler)
- Wood Processing: Sawdust collection system

Powder Pneumatic Conveying Blockage Clearing
Install pulse valves at pipeline blockage points, triggering instantaneous airflow impact using C113825 diaphragms to clear obstructions (e.g., food-grade calcium carbonate, plastic granules conveying)

Silo Arch Breaking Device
Break material arch in coal powder silos/grain silos (operating frequency: ≤30 times/minute)

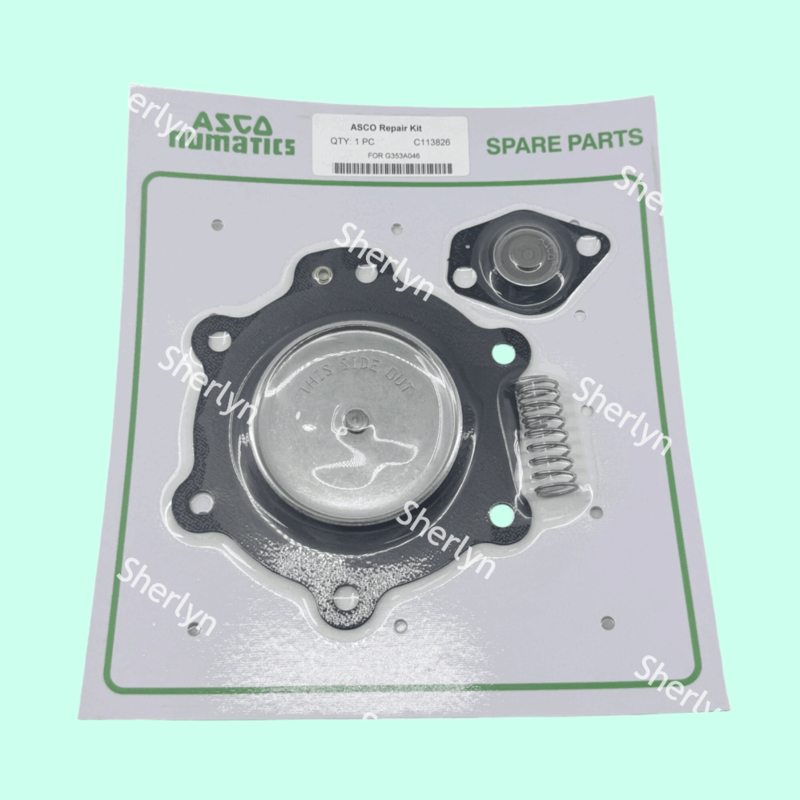

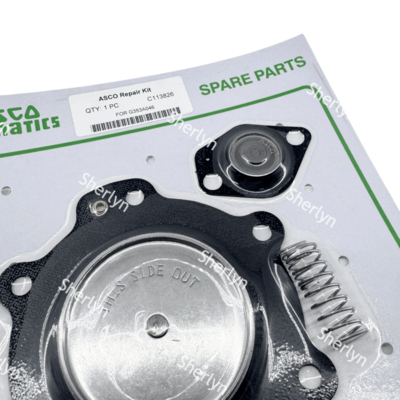

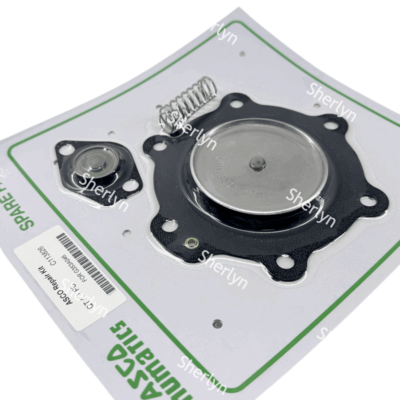

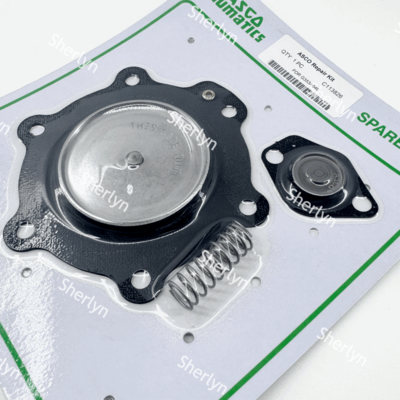

1.5'' C113826 Diaphragm Repair Kit For ASCO G353A046 Remote Pilot Valve

The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.

Ordering Code of Diaphragm For ASCO Pulse Valve:

Support and Services:

The Product Technical Support and Services for the Pulse Valve Diaphragm product include troubleshooting assistance, repair and maintenance guidance, and product-related inquiries. Our team of experts is dedicated to ensuring the optimal performance of your pulse valve diaphragm, providing comprehensive support throughout the product lifecycle. Whether you need assistance with installation, operation, or troubleshooting, our technical support team is here to help.

Packing and Shipping:

Product: Pulse Valve Diaphragm

Description: High-quality diaphragm designed for pulse valves to ensure reliable performance.

Package Includes: 1 Pulse Valve Diaphragm

Shipping Information:

- Shipping Method: Standard Shipping

- Estimated Delivery Time: 5-7 business days

- Shipping Cost: $5.99
