Product Description:

C113825, C1138-25 Diaphragm (Membrane) for ASCO pulse valve G353A045; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃.

Pulse Jet Valve is a solenoid pilot operated diaphragm valve specially designed to deliver extremely fast pulsing in reverse-jet dust collector systems. With its high flow rates, higher peak pressure and the fastest response times on the market it delivers optimal filter cleaning performance, while using significantly less air. This results in energy savings for the user.

Applications:

Function: Control compressed air pulse jetting to remove dust accumulation on filter bags.

• Cement Plant: Tail-end dust collector (exhaust gas temperature <80°C)
• Steel Plant: Sintering machine head dust removal (requires pre-cooler)
• Wood Processing: Sawdust collection system

Install pulse valves at blockage points in pipelines to trigger momentary air flow impact using C113825 diaphragms for clearance (e.g., food-grade calcium carbonate, plastic pellet conveying).

Break material arches in coal powder bins/grain silos (operating frequency: ≤30 times/minute).

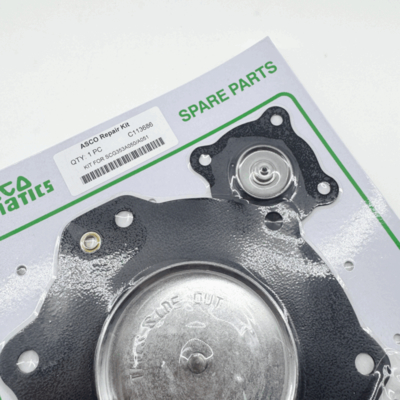

2'' C113685 2.5'' C113686 Diaphragm Repair Kit For SCG353A050 SCG353A051

C113685, C113686, C113-685, C113-686 Diaphragm (Membrane) for ASCO pulse valve SCG353A050, SCG353A051; NBR material is standard, working temperature range is -5 to +80 ℃; VITON material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse jet valves are indirect operated solenoid valves especially designed for dust collector systems. When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened. When the solenoid is de-energized, air escapes through a hole to the chamber above the diaphragm which balances the pressure and instantly closes the valve.

Ordering Number of Diaphragm For ASCO Pulse Valve:

Support and Services:

Our Product Technical Support and Services for the Pulse Valve Diaphragm include:

- Installation guidance and support

- Troubleshooting assistance for any operational issues

- Maintenance recommendations to ensure optimal performance

- Product training and user manuals for easy usage

- Warranty coverage and repair services

Packing and Shipping:

Product Name: Pulse Valve Diaphragm

Description: High-quality diaphragm for pulse valves, made of durable material for long-lasting performance.

Package Includes: 1 Pulse Valve Diaphragm

Package Dimensions: 5 x 5 x 1 inches

Shipping Method: Standard Shipping

Shipping Cost: $5.99
