Product Description:
DB116 ( DB116/C ) Diaphragm ( Membrane ) for Mecair pulse valve VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse Jet valves are indirect type solenoid valves. When the solenoid of pulse jet valves gets energized, air trapped in the diaphragm is exhausted causing pressure difference in the diaphragm. Then the diaphragm is suddenly opened. When it is de-energized, air passes through the hole to the chamber which can balance the air pressure and close the valve. The opening and closing of the valve are done very fast for filter cleaning and consumption of compressed air effectively.
Applications:
Industrial Baghouse Dust Removal System
Function: control compressed air pulse blowing to remove accumulated dust on filter bags
Industry Examples:
Cement Plant: dust collector at kiln end (gas temperature < 80°C)
Steel Plant: dedusting at sintering machine head (to be used with pre-cooler)
Wood Processing: sawdust collection system
-------------------------------
Powder Pneumatic Conveying Clearing Blockage
Install pulse valve at pipe blockage point, trigger instant air flow impact through C113825 diaphragm to clear (e.g. food-grade calcium carbonate, plastic pellet conveying)
-------------------------------
Silo Arch Breaking Device
Break material arching in coal powder silo/grain silo (working frequency: ≤30 times/minute)

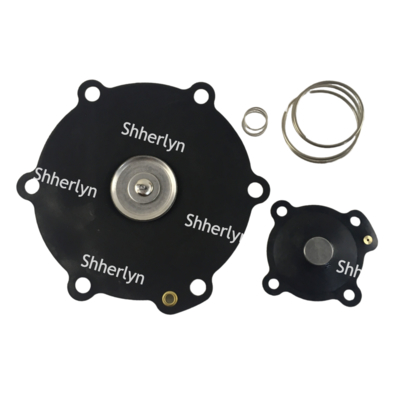

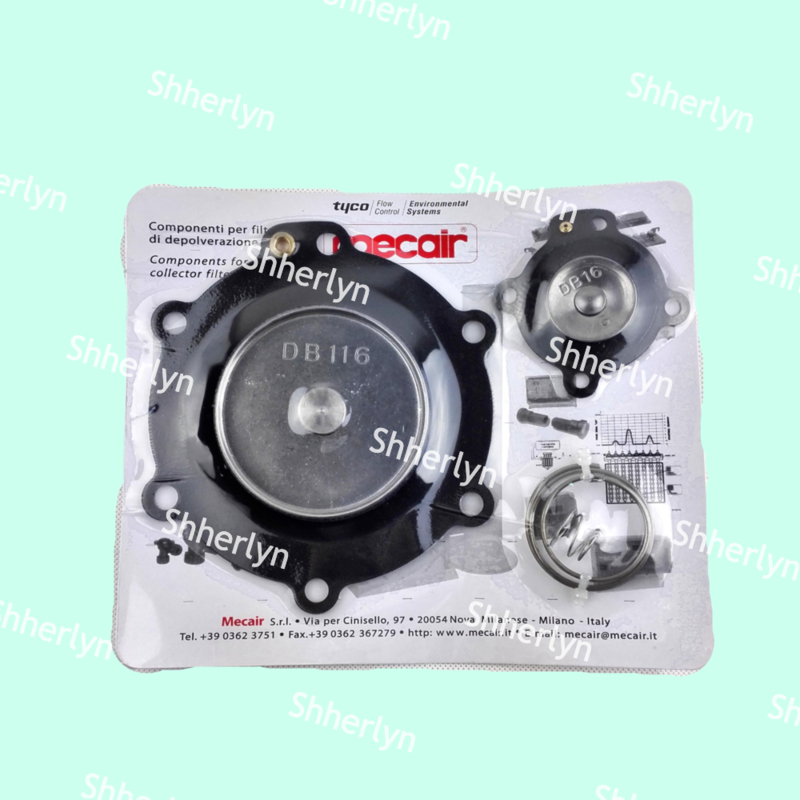

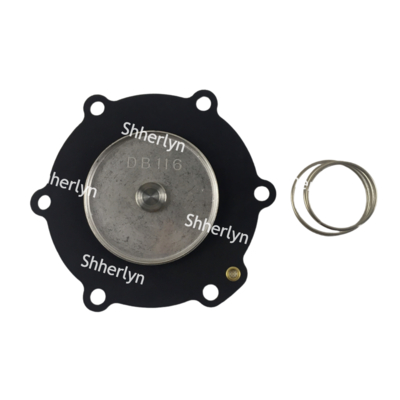

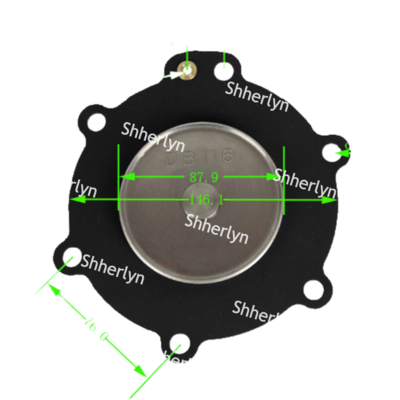

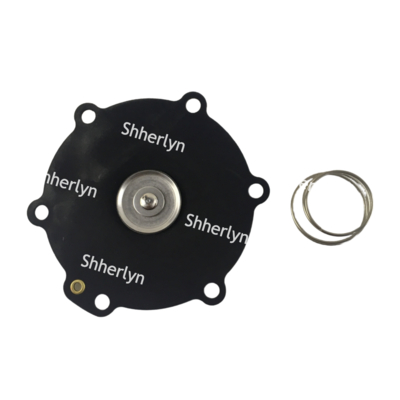

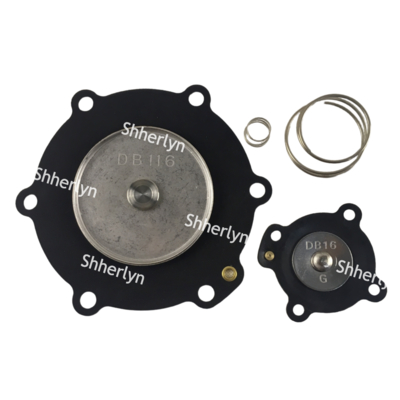

DB116 Mecair Type 2'' Inch Pulse Jet Valve Diaphragm Repair Kit
This is DB116/C diaphragm repair kit for Mecair 2 inch VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716 pulse jet valve.DB116 NBR diaphragm repair kits Mecair 2″ VNP216 VEM216 dust collector valve. Diaphragm repair kit DB116 was suit for MECAIR 2″ pulse valve VNP216 VEM216. Diaphragm Material: Proprietary high performance engineering thermoplastic elastomer or Viton. If you need a large quantity, we can give big discount for you. The products we have many in store, it will be sent out ASAP when we received the payments.
1. Diaphragm Repair Kit: DB16/G, DB18/G, DB112/G, DB114/C, DB116/C, DB120/C.
2. Fitted Valves: VNP206, VEM206, VNP306, VEM306, VNP208, VEM208, VNP308, VEM308, VNP408, VEM408, VNP608, VEM608, VNP708, VEM708, VNP212, VEM212, VNP312, VEM312, VNP412, VEM412, VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714, VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716, VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720.
Ordering Code of Mecair Type Diaphragm Repair Kit:
| Ordering code |
Fitted valve code |
Valve port size |
Material |
| DB16 |
VNP206, VEM206, VNP306, VEM306 |
3/4'' |
Nitrile/Buna |
| DB18 |
VNP208, VEM208, VNP308, VEM308, VNP408, VEM408, VNP608, VEM608, VNP708, VEM708 |
1'' |
Nitrile/Buna |
| DB112 |
VNP212, VEM212, VNP312, VEM312, VNP412, VEM412 |
1-1/2'' |
Nitrile/Buna |
| DB114 |
VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714 |
1-1/2'' |
Nitrile/Buna |
| DB116 |
VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716 |
2'' |
Nitrile/Buna |
| DB120 |
VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720 |
2-1/2'' |
Nitrile/Buna |
| Tips: EPDM, FKM all available. |
Support and Services:
The Product Technical Support and Services for the Pulse Valve Diaphragm product include:
- Providing troubleshooting assistance for installation and operation issues
- Offering guidance on maintenance and replacement of diaphragms
- Conducting product training sessions for proper usage and handling
- Providing warranty support and assistance with product returns or exchanges
- Offering customization services to meet specific customer requirements
Packing and Shipping:
Product Packaging:
The Pulse Valve Diaphragm is carefully packaged to ensure its safety during transportation. It is enclosed in a protective plastic bag and placed in a sturdy cardboard box with ample cushioning material to prevent any damage.
Shipping:
For shipping the Pulse Valve Diaphragm product, we use reliable carriers to deliver your order safely and promptly. The product will be shipped in accordance with your selected shipping method, and you will receive a tracking number to monitor the status of your delivery.
