Detailed Product Description
| Product Name: |
Pulse Valve Diaphragm |
1 Set: |
1PC, Diaphragm, 1PC Spring |
| Seat Material: |
Rubber, Nylon |
Diaphragm Material: |
NBR, FKM |
| Packaging: |
Plastic Bag |
Fitted Pulse Valve Model: |
RCAC25T3, RCAC25DD3, RCA25FS3, RCAC25FH3 |
| Highlight: |
Goyen K2529 Diaphragm
,
k2529 Membrane Repair Kit
,
K2529 Solniod Valve Diaphragm
|
Product Description:

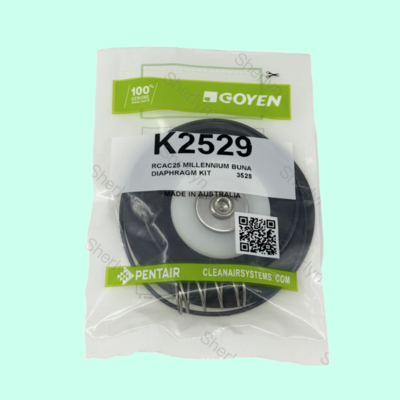

K2529 25 Millennium Buna Diaphragm Kit for Goyen pulse valve RCAC25T3, RCAC25DD3, RCA25FS3, RCAC25FH3; The diaphragm has strong oil resistance, acid resistance, high temperature resistance, alkali resistance and other characteristics, which can easily ensure the complete synchronous operation with other control components and control the injection of pulse compressed air. Even in extremely harsh working environment, it can ensure its normal operation and long service life.
Applications:
Industrial Dust Removal System
The industrial dust removal system features a bag/filter cartridge dust collector with pulse cleaning mechanisms. It is commonly utilized in various industries including cement plants for kiln tail dust removal and steel plants for blast furnace dust removal.
Within the system, each valve is responsible for controlling 20 to 50 filter bags, while the membrane functions at a high frequency, performing at least once per minute.
High Temperature/Corrosive Gas Treatment
It is capable of managing high temperature and corrosive gases effectively.
- Waste incineration flue gas is handled using an FKM film resistant to temperatures of up to 200°C.
- For acidic and alkaline waste gases from chemical plants, an EPDM membrane resistant to pH values ranging from 3 to 11 is employed.
Special Medium Environment
When operating in special medium environments:
- In the food and pharmaceutical industry, an EPDM food grade film provides anti-pollution capabilities.
- For systems containing oil-infused compressed air, an NBR diaphragm ensures oil resistance and guarantees a proper seal.
Strict Physical Conditions
When facing stringent physical conditions:
- For high-pressure impact scenarios, the system is equipped with a CA62T/CA76T double diaphragm structure capable of withstanding pressures of up to 0.85MPa.
- In high humidity environments like cement raw material grinding operations, the system provides dust removal and anti-condensation measures.

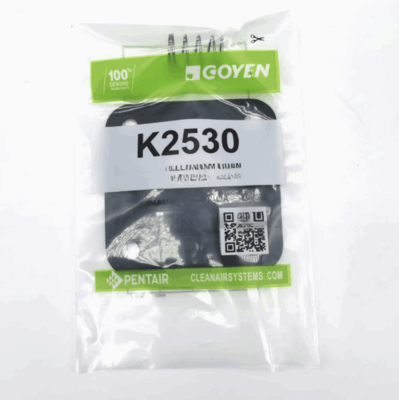

K2529 K2530 Diaphragm For Goyen Pulse Valve RCAC25T3 RCAC25DD3
Products Description
K2529 25 Millennium Buna Diaphragm Kit for Goyen pulse valve RCAC25T3, RCAC25DD3, RCA25FS3, RCAC25FH3; The diaphragm has strong oil resistance, acid resistance, high temperature resistance, alkali resistance and other characteristics, which can easily ensure the complete synchronous operation with other control components and control the injection of pulse compressed air. Even in extremely harsh working environment, it can ensure its normal operation and long service life.
Main Dimension

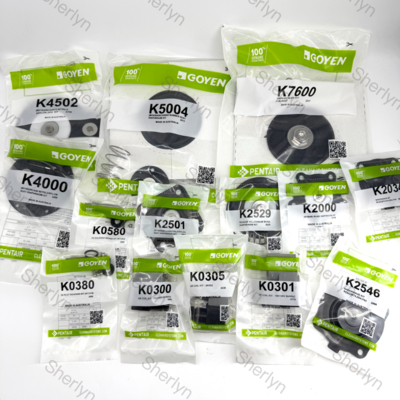

Ordering Number of Diaphragm For Goyen Dust Collector Pulse Valve:
| Pulse Valve Model |
NBR Diaphragm Model |
FKM Diaphragm Model |
Low Temprature Diaphragm Model |
| RCA10-6T |
K1001 |
K1002 |
/ |
| CA20T |
RCA20T |
K2000 (M1204B) |
K2007 |
/ |
| CA20DD |
RCA20DD |
K2002 (M764) |
| CA25T |
RCA25T |
K2501 (M1183B) |
K2503 (M1887) |
K2504 |
| CA25DD |
RCA25DD |
K2502 (M736) |
| CAC25FS |
RCA25FS |
|
| CA25MM |
RCA25MM |
|
| CA32T |
RCA32T |
K2500 (M1183) |
K2503 (M1887) |
/ |
| K2522 (M736) |
| CA35T |
RCA35T |
K3500 (M1581) |
K3501 |
K3502 (M1591) |
| CA40T |
RCA40T |
K4000 (M1182) |
K4007 |
/ |
| CA40MM |
RCA40MM |
| CA45T |
RCA45T |
K4502 (M2162) |
K4503 |
K4522 |
| CA45DD |
RCA45DD |
K4504 (M2187) |
| CA45FS |
RCA45FS |
|
| CA40MR |
RCA40MR |
|
| CA50T |
RCA50T |
K5004 (M1638A) |
K5000 |
/ |
| CA62T |
RCA62T |
K5005 (M1639A) |
| CA76T |
RCA76T |
K7600 |
K7601 |
/ |
| CA76MM |
RCA76MM |
| CA76MR |
RCA76MR |
| CA102MM |
RCA102MM |
K10200 |
K10201 |
/ |
| CA62MR |
RCA62MR |
K7604 |
K7602 |
/ |
| RCA20M |
K2003 (M1174B) |
/ |
/ |
| RCAC20T3, ST3, DD3, FS3 |
K2016 |
K2017 |
/ |
| RCAC25T3, DD3, FS3 |
K2529 |
K2530 |
|
| RCAC25FH3 |
K2531 |
/ |
/ |
|
| Pulse Valve Model |
Shockwave Diaphragm Model |
FKM Diaphragm Model |
/ |
| RCAC20T4, ST4, DD4, FS4 |
K2034 |
K2033 |
/ |
| RCAC25T4, ST4, DD4, FS4 |
K2546 |
K2551 |
/ |
| RCAC25FH3 |
K2545 |
/ |
/ |
| RCAC25T3, DD3, FS3 |
K2549 |
/ |
/ |
Support and Services:
Our Product Technical Support and Services team for the Pulse Valve Diaphragm product is dedicated to providing assistance with installation, troubleshooting, and maintenance of the product. Whether you have questions about product specifications, operation, or performance, our team is here to help.
Packing and Shipping:
Product Name: Pulse Valve Diaphragm
Description: High-quality replacement diaphragm for pulse valves.
Package Includes: 1 Pulse Valve Diaphragm
Shipping Details: - Ships within 1-2 business days. - Standard shipping rates apply. - Tracking information will be provided once the order is shipped.
