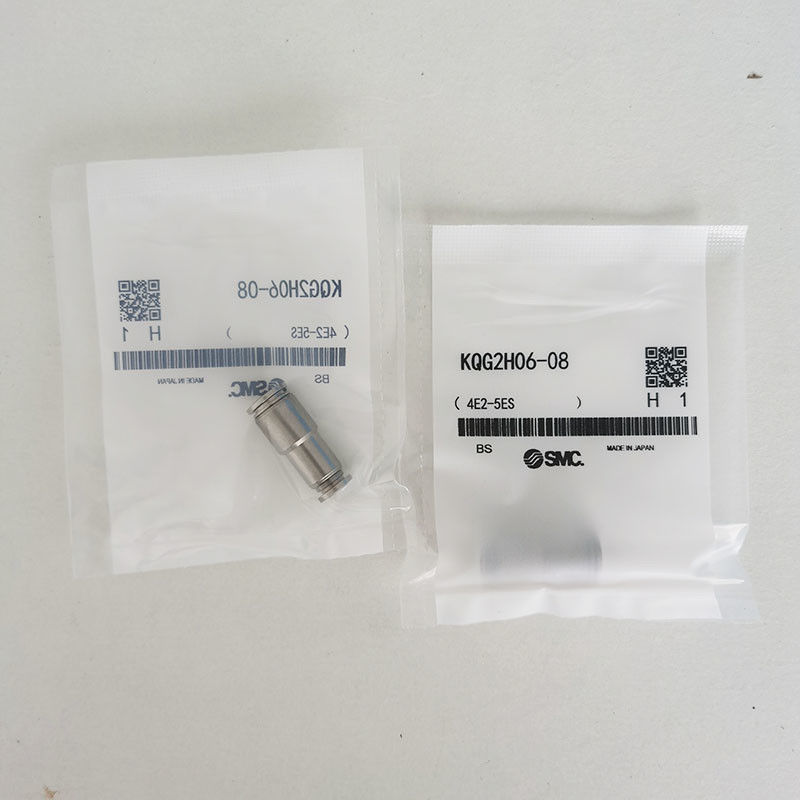

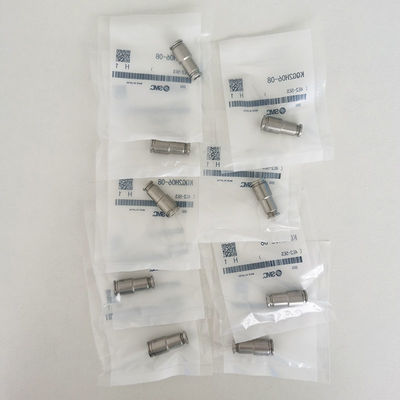

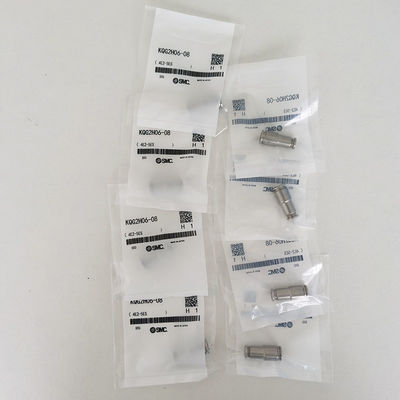

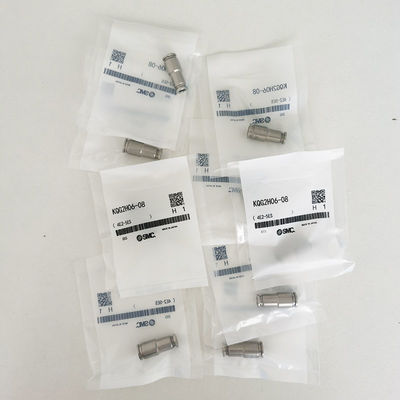

SMC KQG2H06-08
Pressure 0-1mpa Temperature-5~150℃ SS316
SMC Fittings KQG2H06-08 Pressure 0-1mpa Temperature-5~150℃ SS316
Product Description:
SMC's KQG2 Stainless Steel Range
SMC's KQG2 stainless steel range provides engineers with a choice of high performance, lightweight, compact push in fittings for when resistance to corrosion, chemicals and high temperatures is vital. 30% smaller and 62% lighter than the existing KQG range and available to tubing diameters from 3.2 to 16mm.
Threaded, Tube-to-Tube & Adaptors
This range includes both threaded, tube-to-tube and adaptors components to fit a variety of applications.
KQG2 SUS316 Stainless Steel Fittings
The KQG2 series fittings are manufactured from the highest grade SUS316 stainless steel, making them incredibly resistant to corrosion even in the harshest environments.
High Capability Performance
The SMC KQG2 range of stainless steel fittings are capable of performing under a range of pressures (-100kPa to 1MPa) and temperatures (-5°C to +150°C), making them suitable for use with compressed air, steam and water.
Features:
Compact and light, this product is approximately 30% shorter than its predecessor, KQGL06-01S, and around 62% lighter. It comes with metal parts made of stainless steel 316, sealed with special FKM and is suitable with tubing materials such as TEP, PFA, Nylon, soft nylon, polyurethane and polyolefin.
Applicable Tubing:
| Applicable Tubing |
Applicable Tubing |
FEP, PFA, Nylon, Soft nylon Note 1), Polyurethane, Polyolefin |
| Tubing 0.D. |
Ø3.2, Ø4, Ø6, Ø8, Ø10, Ø12, Ø16 |
| Specifications |
Fluid Note 3) |
Air, Water, Steam
Note 2)
|
| Operating pressure range |
-100 kPa to 1 MPa Note 4) |
| Proof pressure |
3.0 MPa |
| Ambient and fluid temperature Note 5) |
- 5 to 150°C (No freezing) Note 4) |
| Lubricant |
Grease-free specification |
| Seal on the threads |
With sealant |
Temperature
Condition of Mounting
the Inner Sleeve |
Tubing |
Temperature |
| FEP tubing/TH Series |
80°C or more |
| Super PFA tubing/TL Series |
120°C or more |
| |
|
Note 1) For soft nylon tubing, water cannot be used.
Note 2) Consult with SMC regarding applicable tube separately.
Note 3) Avoid using in a vacuum holding application such as a leak tester, since there is leakage.
Note 4) Check the operating pressure range and operating temperature range of the tubing.
Note 5) It is recommended that you use the inner sleeve in the following conditions (Except Ø3.2):
●When using at a high temperature.
●When using at a high temperature.
| Different Diameter Straight: KQG2H |
Applicable
tubing O.D
(mm) |
Model |
Note 1)
ØD |
L |
M1 |
M2 |
Note 2)
Efective
area (mm²) |
Weight |
| a |
b |
| ø3.2 |
ø4 |
KQG2H23-04 |
9 |
25.6 |
12 |
12.6 |
3.4 |
6.5 |
| ø4 |
ø6 |
KQG2H04-06 |
12 |
27.2 |
12.6 |
13.6 |
5.6 |
11.6 |
| ø6 |
ø8 |
KQG2H06-08 |
14 |
30.7 |
13.6 |
16.1 |
13.1 |
16.3 |
| ø8 |
ø10 |
KQG2H08-10 |
17 |
34.1 |
16.1 |
17 |
26.1 |
26 |
| ø10 |
ø12 |
KQG2H10-12 |
19 |
36.6 |
17 |
18.6 |
41.5 |
33.3 |
| ø12 |
ø16 |
KQG2H12-16 |
24.6 |
40.4 |
18.6 |
20.8 |
58.3 |
54.7 |
