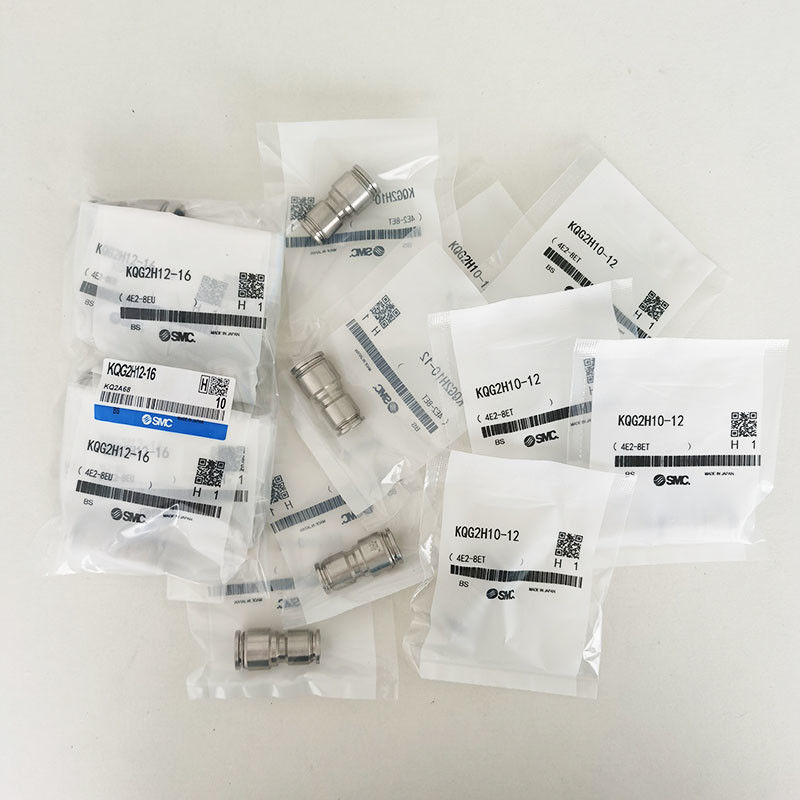

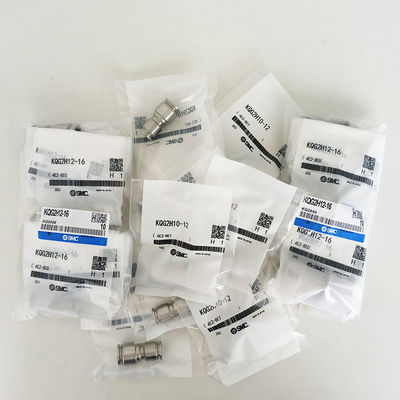

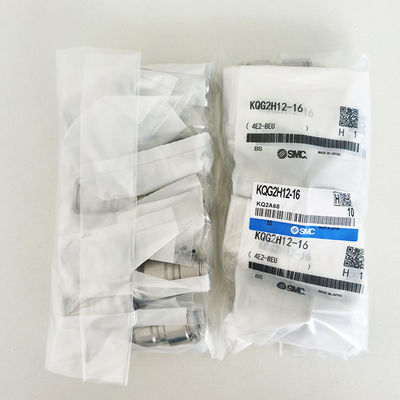

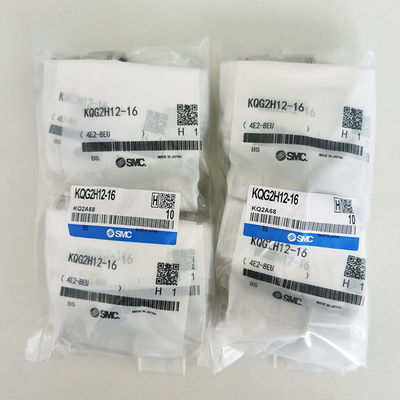

SMC KQG2H12-16
Stainless Steel 316 Customization 0~1Mpa
Product Description:
Pneumatic Hose Fittings are designed to provide secure, airtight connections for carrying air, gas, water, and oil. Our Pneumatic Hose Fittings are easy to install and available in a variety of shapes, such as Straight, Elbow, and T Type, allowing for secure connections to be made in the most complex systems. The Pneumatic Hose Fittings come in a variety of sizes, and can be shipped in either a carton or as the clients require. Our Pneumatic Hose Fittings are designed to withstand temperatures ranging from -5 to 150℃ and are suitable for a variety of applications, such as air, gas, water, and oil.
Features:
This product is even more compact and lightweight than before. Compared to the KQGL06-01S, it is approximately 30% shorter and 62% lighter. Made out of high quality materials, such as stainless steel 316 and special FKM for the seal parts, this product is guaranteed to be durable. Additionally, it is compatible with various tubing materials such as FEP, PFA, soft and hard nylon, polyurethane and polyolefin.
Technical Parameters:
Fluid options are air, water and steam. 2)
The operating pressure range is between –100 kPa to 1 MPa. 3) This can be further extended to 3.0 MPa – when the proof pressure. 4)
The temperature can vary between –5℃ to 150℃. 5) It is ensured that during such temperature range no freezing could occur.
As for lubricant, it as per grease-free specification.
And the threads have a sealant - silicone sealant 6)
Applications:
Pneumatic Pipe Fittings are widely used in many industries such as oil and gas, chemical, automotive, aerospace, and manufacturing, and they provide a safe and reliable connection for pneumatic systems. SMC is a leading brand name in Pneumatic Pipe Fittings with their KQG2H12-16 model. The fittings are manufactured in China and are CE certified. The minimum order quantity is 10 pieces and delivery time is 1-7 work days after payment. SMC can supply up to 5000 pieces per month. The fittings are made of high-quality SS316 material and are pressure-tested up to 1.5 times of the working pressure. The fittings are available in various shapes such as straight, elbow and T type. The package can be customized according to the client's requirements.
Support and Services:
Our Pneumatic Pipe Fittings are backed by our reliable technical support and service. Our knowledgeable and experienced engineers are available to provide assistance with product selection, installation, and troubleshooting. We are committed to providing our customers with the best possible solutions to their pneumatic piping needs.
We offer a wide range of products from leading manufacturers, including stainless steel fittings, brass fittings, plastic fittings, and more. Our selection includes a variety of sizes, materials, and configurations, so you can find the perfect fit for your application. We also offer custom fabrication services to create fittings that meet your exact specifications.
In addition to the products we carry, we also offer technical support and service. Our team of experts is available to answer your questions and provide advice on selecting the right fittings for your application. We can also provide design assistance, installation support, and troubleshooting assistance to ensure your system is up and running smoothly.
At Pneumatic Pipe Fittings, we are dedicated to providing our customers with the highest quality products and services. Our team is committed to providing the best possible solutions for your pneumatic piping needs. If you have any questions or need assistance, please don't hesitate to contact us.
| Different Diameter Straight: KQG2H |
Applicable
tubing O.D
(mm) |
Model |
Note 1)
ØD |
L |
M1 |
M2 |
Note 2)
Efective
area (mm²) |
Weight |
| a |
b |
| ø3.2 |
ø4 |
KQG2H23-04 |
9 |
25.6 |
12 |
12.6 |
3.4 |
6.5 |
| ø4 |
ø6 |
KQG2H04-06 |
12 |
27.2 |
12.6 |
13.6 |
5.6 |
11.6 |
| ø6 |
ø8 |
KQG2H06-08 |
14 |
30.7 |
13.6 |
16.1 |
13.1 |
16.3 |
| ø8 |
ø10 |
KQG2H08-10 |
17 |
34.1 |
16.1 |
17 |
26.1 |
26 |
| ø10 |
ø12 |
KQG2H10-12 |
19 |
36.6 |
17 |
18.6 |
41.5 |
33.3 |
| ø12 |
ø16 |
KQG2H12-16 |
24.6 |
40.4 |
18.6 |
20.8 |
58.3 |
54.7 |
FAQ:
Q: How long is your delivery time?
A: Generally it is 1-2 days if the goods are in stock. or it will be 3-5 weeks if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample for free charge, but do not pay the cost of express freight.
Q:.What’s the shipping way?
A: For small packages, we will choose the door to door express, we cooperated with UPS,DHL,FEDEX,TNT more than 10 years, we guarantee the shipping cost that we offer to you will be the most favorable price among so many suppliers in China. We will send you the tracking number once we got it.
For big orders, By Air or By Sea through your shipping forwarder is acceptable, if you don't have forwarder in China, we will find the most cost-effective one for you.
If you have any other questions, please feel free to consult us.
