Product Details:
|
| Temperature Of Media: | -5~150℃ | Material: | SUS316 |
|---|---|---|---|
| Media: | Air Or Liquid | Connection Thread R, M: | 1/8 |
| Pressure: | 0-1mpa | Application Area: | New Energy Vehicle Industry |
| High Light: | SMC Pneumatic Pipe Connector,SUS316 Pneumatic Pipe Connector,SUS316 SMC Pneumatic Connectors |
||

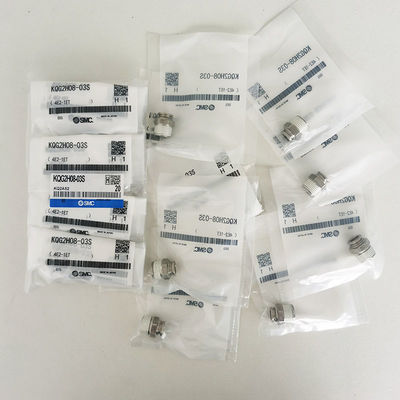

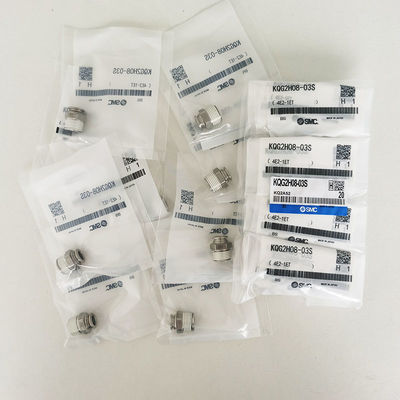

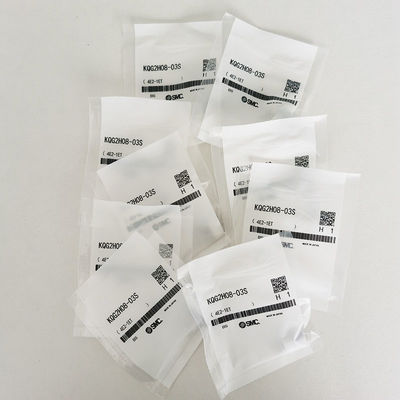

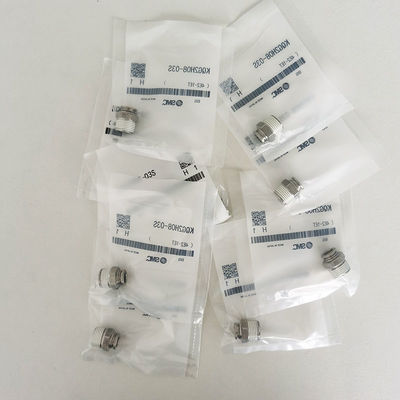

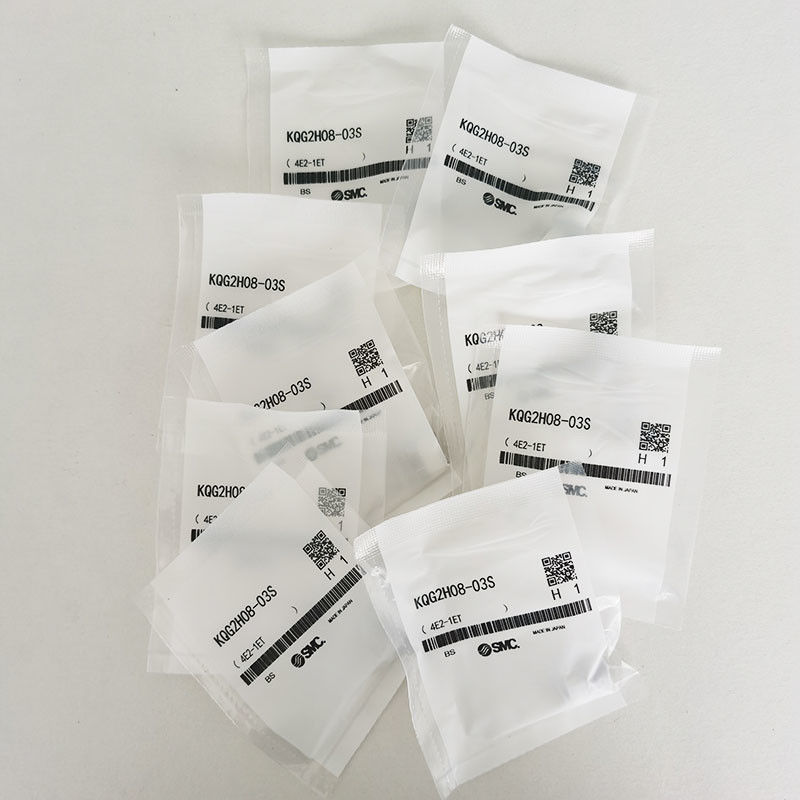

SMC KQG2H08-03S
Pneumatic Connectors SUS316 Pressure 0-1mpa
Product Description:
SMC's KQG2 stainless steel range is designed to meet the highest of standards when it comes to critical requirements such as resistance to corrosion, chemicals and high temperatures. Compared with the existing KQG series, the KQG2 fittings are 30% smaller and 62% lighter, and come in diameters from 3.2mm to 16mm.
Not only are these fittings resistant to corrosion, they are also capable of performing in a range of pressure environments (-100kPa to 1MPa) and temperature conditions (-5°C to +150°C). This makes them ideal for use with compressed air, water and even steam.
What helps SMC's KQG2 series stand out against the competition is the superior degree of corrosion resistance provided by SUS316 stainless steel. Compared to grade 304 stainless steel, this grade provides higher pitting and corrosion resistance properties. This makes it perfect for use in chloride-rich environments.
The combination of stainless steel performance and ultra-lightweight, low-profile design makes SMC's KQG2 one-touch pneumatic fittings a must-have for applications that demand excellence in critical areas.
Features:
This product is extremely compact and light, comparing with its predecessor KQGL06-01S. Its body is composed of stainless steel 316, and its seal parts are special FKM. It can be applied in various material of tubes, such as FEP, PFA, Nylon, Soft Nylon, Polyurethane, or Polyolefin. The functional temperature range is between -5 and 150°c, and it is both grease-free and steam -compatible.
Here are the detailed specs of the product: Dimensions: Approx. 30 % shorter; Weight: Approx. 62% lighter.
Applicable Tubing:
| Applicable Tubing | Applicable Tubing | FEP, PFA, Nylon, Soft nylon Note 1), Polyurethane, Polyolefin |
| Tubing 0.D. | Ø3.2, Ø4, Ø6, Ø8, Ø10, Ø12, Ø16 | |
| Specifications | Fluid Note 3) | Air, Water, Steam
Note 2) |
| Operating pressure range | -100 kPa to 1 MPa Note 4) | |
| Proof pressure | 3.0 MPa | |
| Ambient and fluid temperature Note 5) | - 5 to 150°C (No freezing) Note 4) | |
| Lubricant | Grease-free specification | |
| Seal on the threads | With sealant | |
| Temperature Condition of Mounting the Inner Sleeve |
Tubing | Temperature |
| FEP tubing/TH Series | 80°C or more | |
| Super PFA tubing/TL Series | 120°C or more | |
Note 1) For soft nylon tubing, water cannot be used.
Note 2) Consult with SMC regarding applicable tube separately.
Note 3) Avoid using in a vacuum holding application such as a leak tester, since there is leakage.
Note 4) Check the operating pressure range and operating temperature range of the tubing.
Note 5) It is recommended that you use the inner sleeve in the following conditions (Except Ø3.2):
●When using at a high temperature.
●When using at a high temperature.
|
Male Connector: KQG2H |
|||||||||
| Applicable tubing O.D (mm) |
Connection thread R, M |
Model | H (Width across flat) |
Note 1) ØD |
L | A* | M | Note 2) Efective area (mm²) |
Weight |
| ø3.2 | M5 x 0.8 | KQG2H23-M5 | 8 | 8 | 16.5 | 13.5 | 12 | 3 | 3.3 |
| 1/8 | KQG2H23-01S | 10 | 15.4 | 12.3 | 3.4 | 5.7 | |||
| 1/4 | KQG2H23-02S | 14 | 21 | 16.3 | 16.9 | ||||
| ø4 | M5 x 0.8 | KQG2H04-M5 | 10 | 8.7 | 17.1 | 14.1 | 12.6 | 4 | 5 |
| 1/8 | KQG2H04-01S | 15.3 | 12.2 | 5.6 | 4.7 | ||||
| 1/4 | KQG2H04-02S | 14 | 20.9 | 16.2 | 15.8 | ||||
| ø6 | M5 x 0.8 | KQG2H06-M5 | 12 | 11.1 | 19.1 | 16.1 | 13.6 | 4 | 7.7 |
| 1/8 | KQG2H06-01S | 18.1 | 15 | 13.1 | 7 | ||||
| 1/4 | KQG2H06-02S | 14 | 20.8 | 16.1 | 14.5 | ||||
| 3/8 | KQG2H06-03S | 17 | 23 | 17.9 | 27.3 | ||||
| ø8 | 1/8 | KQG2H08-01S | 14 | 13.4 | 24.5 | 21.4 | 16.1 | 26.1 | 12.8 |
| 1/4 | KQG2H08-02S | 22.3 | 17.6 | 12.9 | |||||
| 3/8 | KQG2H08-03S | 17 | 23.7 | 18.6 | 24.7 | ||||
| ø10 | 1/8 | KQG2H10-01S | 17 | 16.4 | 25.5 | 22.4 | 17 | 26.1 | 18.9 |
| 1/4 | KQG2H10-02S | 27.9 | 23.2 | 41.5 | 21.6 | ||||
| 3/8 | KQG2H10-03S | 23 | 17.9 | 20.6 | |||||
| 1/2 | KQG2H10-04S | 22 | 28.6 | 22.2 | 51.1 | ||||
| ø12 | 1/4 | KQG2H12-02S | 19 | 18.5 | 30.5 | 25.8 | 18.6 | 58.3 | 27.4 |
| 3/8 | KQG2H12-03S | 24.7 | 19.6 | 20.5 | |||||
| 1/2 | KQG2H12-04S | 22 | 28.7 | 22.3 | 44.6 | ||||
| ø16 | 3/8 | KQG2H16-03S | 24.6 | 33.6 | 28.5 | 20.8 | 81 | 46 | |
| 1/2 | KQG2H16-04S | 24 | 29.5 | 23.1 | 113 | 37.4 | |||
