Name: KQG2T12-04S Pneumatic Tee Fitting Connector SUS316 Pneumatic Air Fittings
Brand: YW DKE TRADING COMPANY
SKU: KQG2T12-04S
Availability: InStock

Home Products Pneumatic Tee Fitting

KQG2T12-04S Pneumatic Tee Fitting Connector SUS316 Pneumatic Air Fittings

Product Details:

Place of Origin:	China
Brand Name:	SMC
Certification:	CE
Model Number:	KQG2T12-04S

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	Negotiation
Packaging Details:	Carton /As The Clients Require
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 pieces/1Month

Contact Now

Detailed Product Description

Brand:	SMC	Application:	Aerospace Industry
Proof Pressure:	3.0MPa	Temperature Range:	-5°C To 150°C
Applicable Tube O.D.:	12	Material:	SUS316
Shape:	Tee	Types:	One-Touch Pipe
Highlight:	Custom Pneumatic Air Fittings , SUS316 Pneumatic Tee Fitting , SUS316 Pneumatic Tee Connector

SMC KQG2T12-04S

Quick-Connect Fitting One-Touch Pipe SUS316

Product Description:

In response to industry demands for a selection of lightweight, grease-free and high-functioning metal fittings, our R&D engineers have improved upon our current ranges of KQG/KFG and KQB metal fittings. These new models are up to 30% smaller and 62% lighter than the preceding models, bringing a total of 17 KQG2 model options and 9 KFG2 model options that offer an even better performance. Also, with the addition of two new tubes sizes, these fittings can be used with a variety of tube diameters from 3.2mm to 16mm.

The KFG2 Series stainless steel 316 insert type fittings allow for operation temperatures from -65ºC to 260ºC when chosen without a sealing thread agent and provide sleeveless sealing for easier maintenance. A noteworthy addition to our metal fittings range is our brass option, Series KQB2. These fittings are also up to 30% smaller and 62% lighter than the earlier models, and have been increased from 9 to 17 model options, with both NPT and G thread features. Furthermore, electroless nickel plating has been applied to all brass parts which ensure the fittings retain their good appearance during their lifespan.

Applications:

SMC's KQG2T04-00 Pneumatic Tee Fitting is a one-touch pipe fitting designed for quick connection and disconnection of air and liquid pipes, with a shape of tee. It is made of SS316, and its temperature range is from -25°C to 150°C. This product is certified by CE, and the minimum order quantity is 20. The price can be negotiated based on the quantity and delivery time is 1-7 work days after payment. Payment terms include T/T, Western Union and Paypal. SMC can supply up to 5000 pieces of this pneumatic tee fitting per month.

This one-touch tee fitting is ideal for use in applications that require quick connection and disconnection of air and liquid pipes. It is easy to use and provides a secure connection. The SS316 material and certified CE provide a reliable and durable construction, making it suitable for applications in various industries such as chemical, pharmaceutical, food, and more. This pneumatic tee fitting is an excellent choice for pneumatic systems, and is sure to provide a long-lasting, secure connection.

Technical Parameters:

Male Elbow: KQG2T
Applicable tubing O.D (mm)	Connection thread R, M	Model	H (Width across flat)	Note 1) ØD	L1	L2	A*	M	Note 2) Efective area (mm²)	Weight (g)
ø3.2	M5 x 0.8	KQG2T23-M5	8	8.3	13.1	14.8	16	12	3.2	8.1
	1/8	KQG2T23-01S	10		13.6	14.9	15.9		3.4	9.4
	1/4	KQG2T23-02S	14		13.6	18.7	18.1		3.4	17.7
ø4	M5 x 0.8	KQG2T04-M5	8	9.1	13.7	15.2	16.8	12.6	4.5	9
	1/8	KQG2T04-01S	10		14.4	15.3	16.7		6	10.4
	1/4	KQG2T04-02S	14		14.4	19.1	18.9		6	18.8
ø6	M5 x 0.8	KQG2T06-M5	8	11.4	14.7	16.3	19	13.6	4.5	11.9
	1/8	KQG2T06-01S	10		15.9	16.4	19		13.9	13.4
	1/4	KQG2T06-02S	14			20.2	21.2			21.8
	3/8	KQG2T06-03S	17			21.6	22.2			33.3
ø8	1/8	KQG2T08-01S	12	13.7	18.6	18.3	22	16.1	26.3	20
	1/4	KQG2T08-02S	14		19.1	21.5	23.6			25.5
	3/8	KQG2T08-03S	17		19.1	22.9	24.6			36.8
ø10	1/8	KQG2T10-01S	12	16.6	20	19.7	24.9	17	40.8	28.4
	1/4	KQG2T10-02S	14		21	22.9	26.5			31.1
	3/8	KQG2T10-03S	17			24.3	27.5			41.4
	1/2	KQG2T10-04S	22			28.5	30.4			68
ø12	1/4	KQG2T12-02S	14	18.7	22.6	24	28.6	18.6	57.2	37.8
	3/8	KQG2T12-03S	17		23.6	25.3	29.5			39.3
	1/2	KQG2T12-04S	22		23.6	29.5	32.4			68.8
ø16	3/8	KQG2T16-03S	19	24.6	26.3	28	34.5	20.8	71	63.7
ø16	1/2	KQG2T16-04S	22	24.6	27.3	31.8	37	20.8	100	77.6

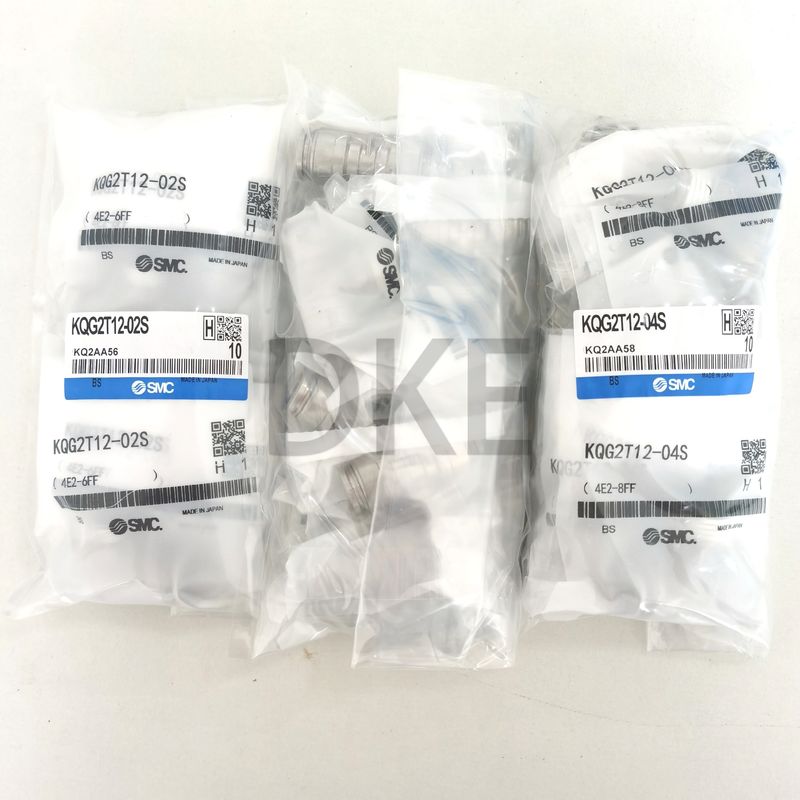

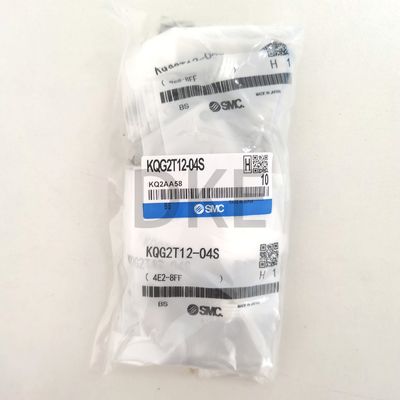

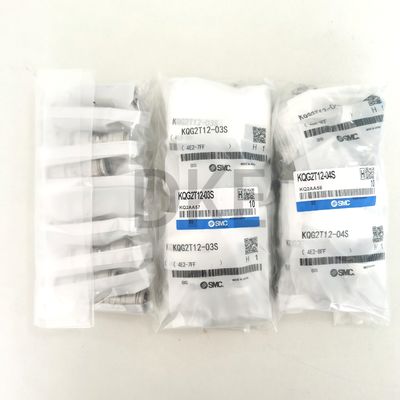

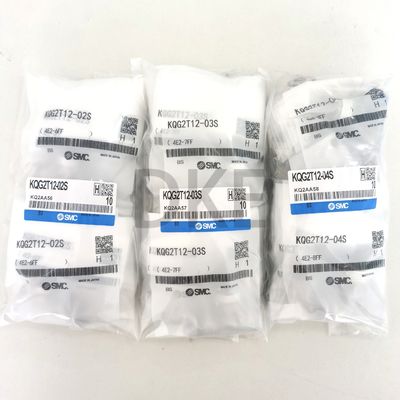

KQG2T12-04S Pneumatic Tee Fitting Connector SUS316 Pneumatic Air Fittings 0

KQG2T12-04S Pneumatic Tee Fitting Connector SUS316 Pneumatic Air Fittings 1

Payment:

1) We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment processor ESCROW.

2) Payment must be made within 3 days of order.

3) If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be completed within 3 days.

About shipping:

1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)

2. Orders processed timely after the payment verification.

3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.

4. The images shown are not the actual item and are for your reference only.

5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
