Name: ASCO C113825 Diaphragm Membrane Kits for 1.5" Remote Pilot Pulse Valve G353A045
Brand: YW DKE TRADING COMPANY
SKU: C113825
Availability: InStock

Home Products Pulse Valve Diaphragm

ASCO C113825 Diaphragm Membrane Kits for 1.5" Remote Pilot Pulse Valve G353A045

Product Details:

Place of Origin:	China
Brand Name:	GOYEN
Certification:	CE
Model Number:	C113825

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 pieces/1Month

Contact Now

Detailed Product Description

Colour:	Black	Material Quality:	Nitrile/
Ambient Temperature Range (°C):	-20 To +85℃	Differential Pressure (PS):	35 - 8,5 Bar [1 Bar = 100kPa]
Medium:	Air	Size:	1 1/2"

ASCO C113825 Diaphragm Membrane Kits for

1.5" Remote Pilot Pulse Valve G353A045

Basic Info.

Model NO.

G353A045 C113825

Connection Form

Thread

Type

Pilot Operated

Material

Aluminum

Pressure

Ordinary Pressure

Valve Structure

Pilot Membrane Structure

Power Supply

AC Solenoid Valve

Usage

Safety, Emptying, Drain, Temperature Control, Flow Control

Standard

Application

Industrial Usage

Model Number

SMT- D18m

Color

Black

Port Size

Diaphragm

NBR

Transport Package

Specification

Trademark

ASCO

Origin

China

G353A045 G353A046 Diaphragm Valve Repair Kit C113825 C113826

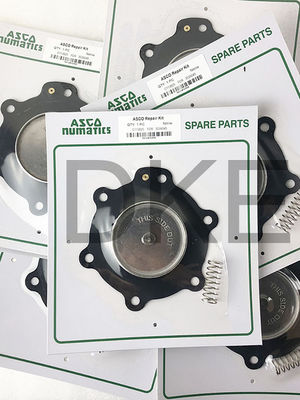

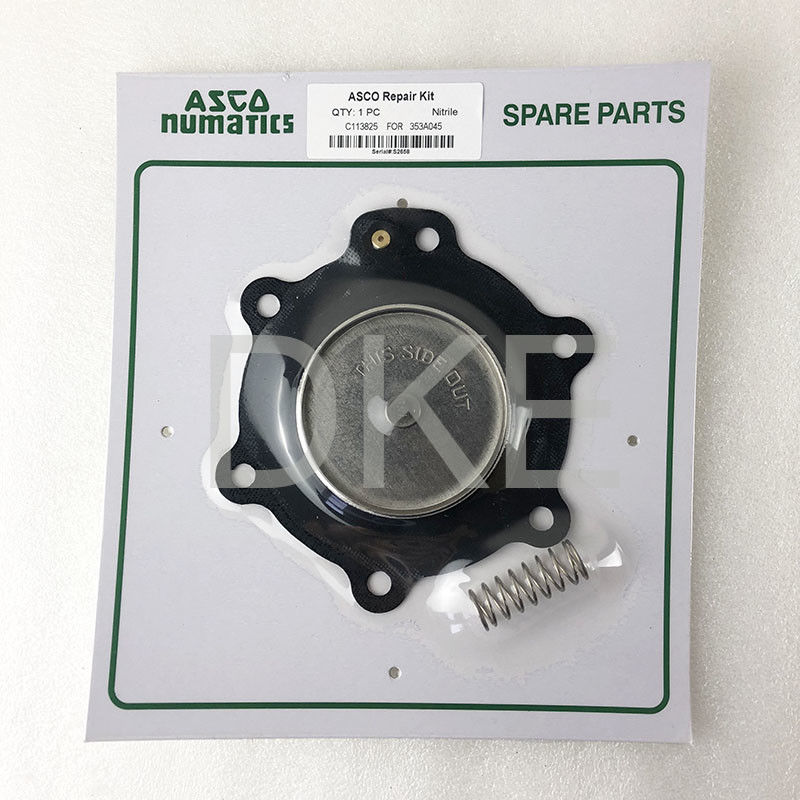

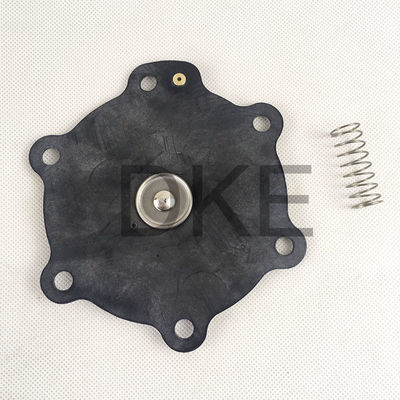

This is C113825 / C113826 Diaphragm repair kit for ASCO 1 1/2'' G353A045, G353A046 Pulse Jet Valve.

1. Product Name: Diaphragm Repair Kit

2. Diaphragm Material: NBR, TPE (White)

3. Diaphragm Model: C113443, C113444, C113825, C113826, C113827, C113685, C113686, C113928

4. Fitted Valve Model: G353A041, G353A042, SCG353A043, SCG353A044, G353A045, G353A046, SCG353A047, SCG353A050, SCG353A051, G353A048, G353A049, SCEX353.060

Product Description

The 200 SERIES is a range of diaphragm valve suitable for Dust collector applications,in particular for reverse pulse jet filter cleaning of filter bags cartridges envelope filters,ceramic filters and sintered metal fibre filters. The 200Series valve has the inlet port at 900 to the outlet port. The 200Series range comprises 7 models from 3/4" to 3"

all with threaded female gas connections.

The 200 Series is available in the following versions:

• VNP,with integrated solenoid pilot

• VEM,with remote pneumatic connection.

Cover	Die-cast aluminium (Anodised)
Body	Die-cast aluminium (Anodised)
Pilot Base	Brass (Chromed)
Pilot	Stainless Steel
Diaphragm	NBR
Bolts and screws	Stainless Steel
Diaphragm backing disk	Stainless Steel
Diaphragm spring	Stainless Steel

Available Models of Diaphragm Repair Kit For ASCO Pulse Jet Valve:

Ordering Code	Fitted Valve Code	Valve port size	Material
C113443	G353A041, G353A042	3/4'' , 1''	TPE / NBR
C113444	SCG353A043, SCG353A044	3/4'' , 1''	TPE / NBR
C113825	G353A045	1 1/2''	NBR / BUNA
C113826	G353A046	1 1/2''	NBR / BUNA
C113827	SCG353A047	1 1/2''	NBR / BUNA
C113685	SCG353A050, SCG353A051, G353A048, G353A049	2'' , 2 1/2''	NBR / BUNA
C113686	SCG353A050, SCG353A051, G353A048, G353A049	2'' , 2 1/2''	NBR / BUNA
C113928	SCEX353.060	3''	NBR / BUNA
NOTE: The FKM Material is also Available.
