Name: C113826 Diaphragm For 1 1/2′′ Dust Collector Pulse Jet Valve G353A046 G353A063
Brand: YW DKE TRADING COMPANY
SKU: C113826
Availability: InStock

Home Products Pulse Valve Diaphragm

C113826 Diaphragm For 1 1/2′′ Dust Collector Pulse Jet Valve G353A046 G353A063

Product Details:

Place of Origin:	China
Brand Name:	ASCO
Certification:	CE
Model Number:	C113826

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 pieces/1Month

Contact Now

Detailed Product Description

Material Quality:	Nitrile/	Ambient Temperature Range (°C):	-20 To +85℃
Differential Pressure (PS):	0,35 - 8,5 Bar [1 Bar = 100kPa]	Colour:	Black
Size:	1 1/2"	Medium:	Air

C113826 Diaphragm For 1 1/2′′ Dust Collector Pulse Jet Valve

G353A046 G353A063

Basic Info.

Model NO.

SMT-C113826

Connection Form

Thread

Type

Pilot Operated

Material

Aluminum

Pressure

Ordinary Pressure

Valve Structure

Pilot Piston Structure

Power Supply

AC Solenoid Valve

Usage

Safety, Emptying, Drain, Temperature Control, Flow Control

Standard

Application

Industrial Usage

Model Number

SMT-C113826

Color

Black

Working Pressure

0.15~0.85MPa

Port Size

1.5"

Transport Package

Trademark

Smart

Origin

China

K276886 K276886B K238870 K276887 Diaphragm Repair Kit

Brando has more than 10 years experiences in manufacturing and exporting diaphragm valve and their diaphragm repair kits for almost brands, like Goyen, ASCO, Joil, Norgern, Turbo, Mecair, and so on. The shown is C113825 / C113826 / C113827 / K276886 / K276886B / K238870 diaphragm repair kit for ASCO 1-1/2'' SCG353A047, SCG353A065, G353A045, G353A046 diaphragm valves.

Overall Dimension of SCG353A047 SCG353A065 Diaphragm Valve Repair Kit:

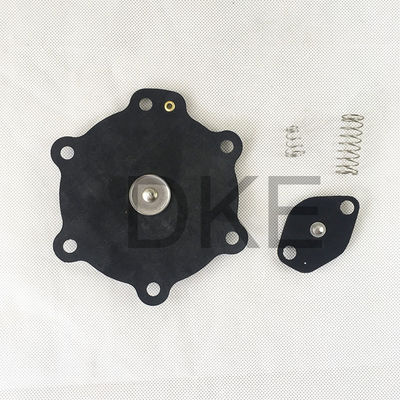

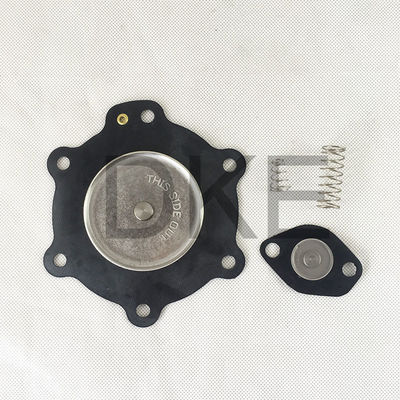

C113826 Diaphragm For 1 1/2′′ Dust Collector Pulse Jet Valve G353A046 G353A063 0

Product Description

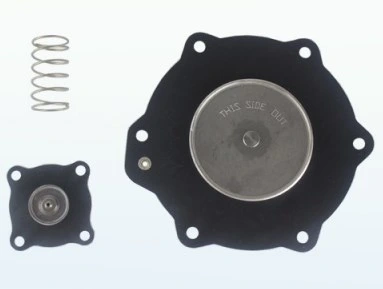

Asco C113826 Diaphragm Repair Kit for Pulse Jet Dust Collector

Ordering Code: C113825

Repair kits for ASCO G353A046

The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
Diaphragm Material: Buna(NBR)
Cover: SS304
Diaphragm kits for: ASCO pulse valves:G353A046
Working pressure: 0.05-1.0 Mpa
Working Temperature: -20ºC- +82 ºC
Lifespan:1 million cycles

Available Models of ASCO Type Diaphragm Valve Repair Kits:

Ordering Code	Fitted Valve Code	Valve Port Size	Material
C113443	G353A041, G353A042	3/4'', 1''	TPE/NBR
C113444	SCG353A043, SCG353A044, SCG353-052, SCG353-053	3/4'', 1''	TPE/NBR
C113825	G353A045	1-1/2''	NBR
C113826	G353A046	1-1/2''
C113827	SCG353A047, SCG353A065	1-1/2''
C113685	SCG353A050, SCG353A051	2'', 2-1/2''
C113686	SCG353A050, SCG353A051	2'', 2-1/2''
C113928	SCEX353.060	3''
C123432	SCG353D060, G353.060
C123433	SCG353D060, G353.060
K096875 (K238864)	8353C033	3/4''
K200262 (K238866)	G353A041, G353A042, SCG353A043, SCG353A044, SCG353-052, SCG353-053	1''
K276886 (K238870)	G353A045, G353A046, SCG353A047, SCG353A065	1-1/2''
K276886B
K276887
Tips: EPDM, All Available.

Tips: The valves mentioned, related solenoid coils and armature assembly are all supplied.

Product picture

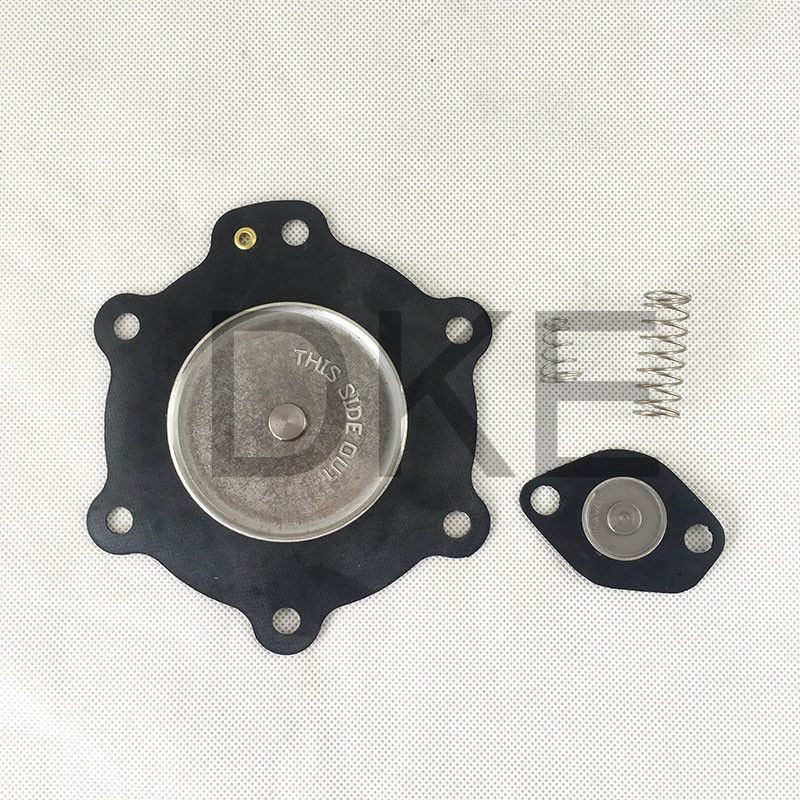

C113826 Diaphragm For 1 1/2′′ Dust Collector Pulse Jet Valve G353A046 G353A063 1
