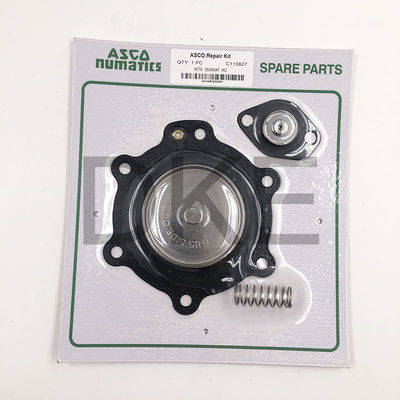

Name: ASCO C113827 SCG353A047Dust Collector Pulse Jet Valve Rubber Membrane Repair Kit
Brand: YW DKE TRADING COMPANY
SKU: C113827
Availability: InStock

Home Products Pulse Valve Diaphragm

ASCO C113827 SCG353A047Dust Collector Pulse Jet Valve Rubber Membrane Repair Kit

Product Details:

Place of Origin:	China
Brand Name:	ASCO
Certification:	CE
Model Number:	C113827

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 pieces/1Month

Chat Now

Detailed Product Description

Material Quality:	Nitrile/	Ambient Temperature Range (°C):	-20 To +85℃
Differential Pressure (PS):	0,35 - 8,5 Bar [1 Bar = 100kPa]	Colour:	Black
Medium:	Air	Size:	1 1/2"

ASCO C113827 SCG353A047Dust Collector Pulse Jet Valve Rubber Membrane Repair Kit

Product Attributes

Model No.: C113826

Brand: ASCO

Mounting Hole Size: φ8.5mm

Packaging: Individul Plastic Bag Sealed

Bleed Hole: 1

Spring: 1

Diaphragm Material: Nitrile (NBR)

Name: C113827 ASCO Type Diaphragm Repair Kit

Diaphragm Outer Diameter: φ112mm

Center Distance: φ116.5mm

Net Weight (2 Diaphragms & 1 Spring): 105g

Applicable Valves: G353A045/46, SCG353A047/65

C113827 SCG353A047 SCG353A065 ASCO Type Diaphragm Repair Kit

Brando has more than 10 years experiences in manufacturing and exporting diaphragm valve and their diaphragm repair kits for almost brands, like Goyen, ASCO, Joil, Norgern, Turbo, Mecair, and so on. The shown is C113825 / C113826 / C113827 / K276886 / K276886B / K238870 diaphragm repair kit for ASCO 1-1/2'' SCG353A047, SCG353A065, G353A045, G353A046 diaphragm valves.

Overall Dimension of SCG353A047 SCG353A065 Diaphragm Repair Kit:

ASCO C113827 SCG353A047Dust Collector Pulse Jet Valve Rubber Membrane Repair Kit 0

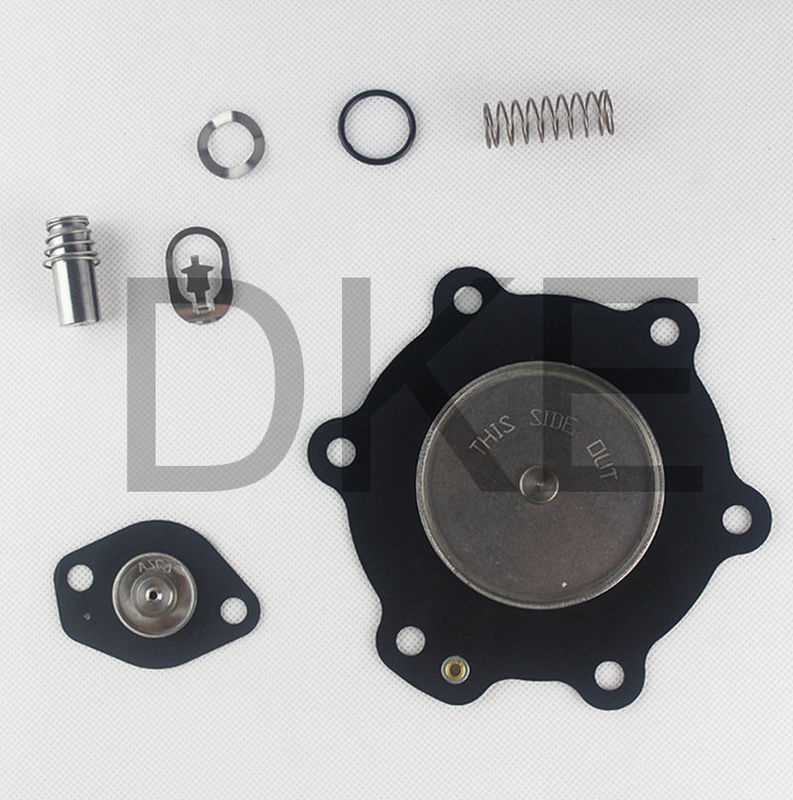

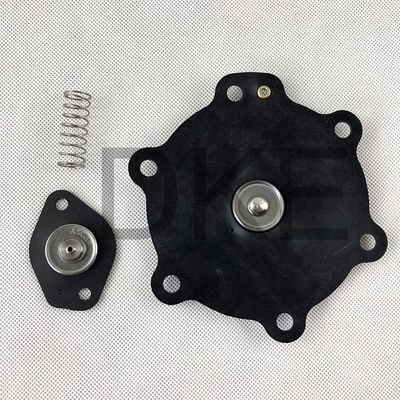

Details of C113825 C113826 C113827 ASCO Type Diaphragm Repair Kit:

Available Models of ASCO Type Diaphragm Repair Kit:

Ordering Code	Fitted Valve Code	Valve Port Size	Material
C113443	G353A041, G353A042	3/4'', 1''	TPE/NBR
C113444	SCG353A043, SCG353A044, SCG353-052, SCG353-053	3/4'', 1''	TPE/NBR
C113825	G353A045	1-1/2''	NBR
C113826	G353A046	1-1/2''
C113827	SCG353A047, SCG353A065	1-1/2''
C113685	SCG353A050, SCG353A051	2'', 2-1/2''
C113686	SCG353A050, SCG353A051	2'', 2-1/2''
C113928	SCEX353.060	3''
C123432	SCG353D060, G353.060
C123433	SCG353D060, G353.060
K096875 (K238864)	8353C033	3/4''
K200262 (K238866)	G353A041, G353A042, SCG353A043, SCG353A044, SCG353-052, SCG353-053	1''
K276886 (K238870)	G353A045, G353A046, SCG353A047, SCG353A065	1-1/2''
K276886B
K276887
Tips: EPDM, All Available.
