Name: DB16 DB16/G Dust Collector Pulse Jet Valve Diaphragm VNP206 VEM206 VNP306 VEM306
Brand: YW DKE TRADING COMPANY
SKU: DB16
Availability: InStock

Home Products Pulse Valve Diaphragm

DB16 DB16/G Dust Collector Pulse Jet Valve Diaphragm VNP206 VEM206 VNP306 VEM306

Product Details:

Place of Origin:	China
Brand Name:	Mecair
Certification:	CE
Model Number:	DB16

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 pieces/1Month

Contact Now

Detailed Product Description

Diaphragm Material:	NBR/	Heating Range:	−30°C/+200°C
NBR Heating Range:	−20°C/+80°C	PRESSURE RANGE:	0.5 ~7.5 Bar
Colour:	Black	Size:	3/4"
Highlight:	Dust Collector Pulse Valve Diaphragm VNP206 , DB16/G Pulse Jet Valve Diaphragm , VNP206 Pulse Jet Valve Diaphragm

DB16 DB16/G Diaphragm For VNP206 VEM206 VNP306 VEM306

Dust Collector Pulse Jet Valve

Product Attributes

Model No.: DB16/G

Brand: Mecair

No Of Diaphragm: 1

Bleed Hole: 1

Spring: 1

Packaging: Individual Sealed

Diaphragm Material: NBR (Buna)

Mounting Hole Size: φ6mm

Hole Center Distance: 66.5mm

Membrane OD: 62mm

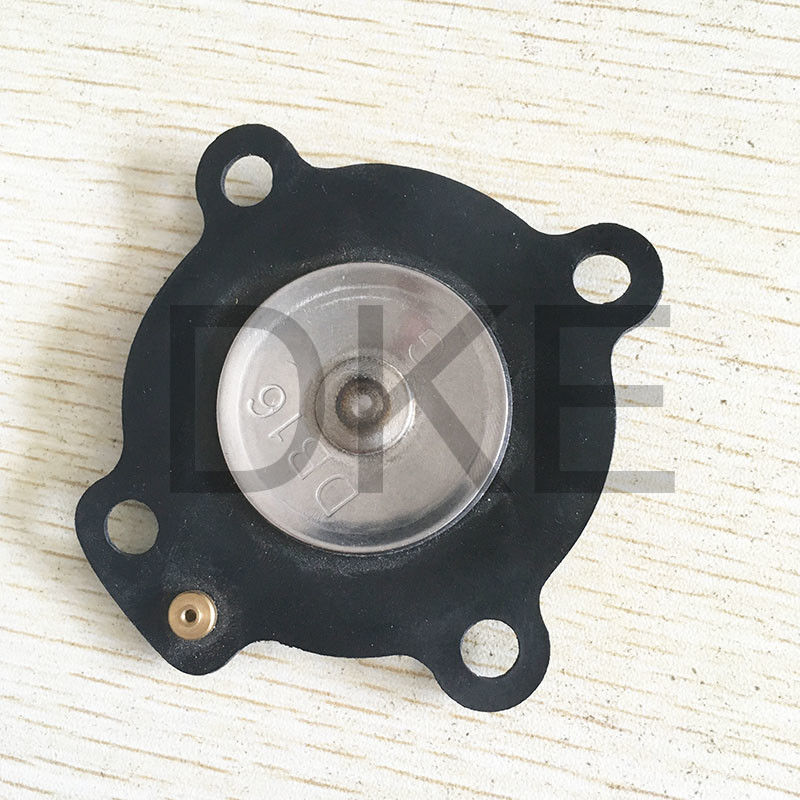

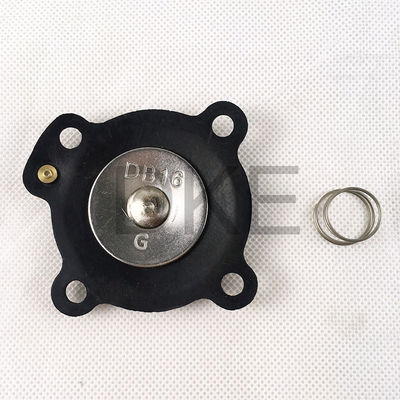

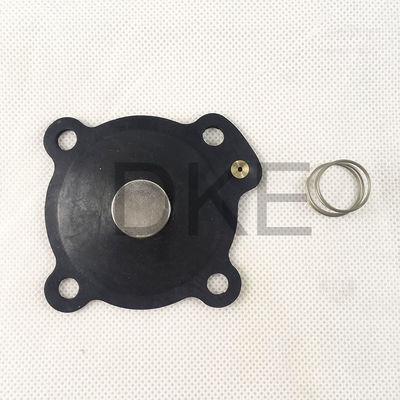

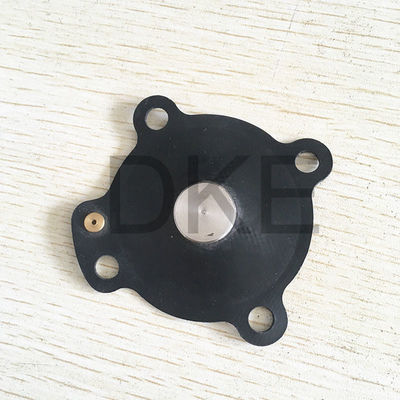

Name: DB16 Diaphragm Repair Kit

Applicable Valves: VNP206, VEM206, VNP306, VEM306

DB16/G Diaphragm Repair Kit For Mecair Pulse Valve

We can provide replacement diaphragm valves for any application. We also provide the diaphragm repair kits for these valves. So the shown below is a DB16 diaphragm repair kit for MECAIR 3/4'' VNP206, VEM206, VNP306, VEM306 diaphragm valves. Also known as rebuild kits, diaphragm repair kits can return your diaphragm valve back to peak performance. We stock and supply a wide range of brand name diaphragm valve replacements such as: Goyen, Mecair, ASCO, SBFEC, Joil, Norgren, Turbo, and so on. Diaphragm valves come in a range of configurations to suit all types of pulse jet dust collector cleaning designs. Diaphragm valves use a flexible molded diaphragm to regulate airflow through the filters for optimal cleaning. The diaphragm valve creates a pulse of air that shakes through the bag, shaking off any dirt on the outside of the bag and cleaning the filter.

Overall Dimension of DB16/G Diaphragm Repair Kit For 3/4'' Mecair Pulse Valve:

DB16 DB16/G Dust Collector Pulse Jet Valve Diaphragm VNP206 VEM206 VNP306 VEM306 0

Product Details of DB16/G Diaphragm Repair Kit For VNP/VEM206 VNP/VEM306 Valve:

DB16 DB16/G Dust Collector Pulse Jet Valve Diaphragm VNP206 VEM206 VNP306 VEM306 1

Diaphragm Model	Pulse Valve Model	Pulse Valve Port Size	Diaphragm Material
DB16/G	VNP206, VEM206, VNP306, VEM306	3/4''	NBR,
DB18/G	VNP208, VEM208, VNP308, VEM308, VNP408, VEM408	1''	NBR,
DB18M	VNP608, VEM608, VNP708, VEM708	1'', 1 1/2''	NBR,
DB112/G	VNP212, VEM212, VNP312, VEM312, VNP412, VEM412	1 1/2''	NBR,
DB114/C & DB16/G	VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714	1 1/2''	NBR,
DB116/C& DB16/G	VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716	2''	NBR,
DB120/C& DB16/G	VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720	2 1/2'', 3''	NBR,

Packing and Shipping:

Packaging and Shipping for Pulse Valve Diaphragm: The Pulse Valve Diaphragm is carefully packaged to ensure its safe arrival and protection during shipping. The following packaging methods and materials are used: - Each diaphragm is individually wrapped in a plastic bag to protect it from dust and moisture. - The diaphragms are then placed in a sturdy cardboard box with added cushioning material to prevent any damage during transit. - The box is sealed with tape and labeled with the product name, quantity, and handling instructions. - For bulk orders, the diaphragms are packed in larger crates or pallets and secured with straps for added stability. Our shipping process is efficient and reliable, with a variety of options available to meet your specific needs. We work with trusted shipping carriers to ensure timely delivery and provide tracking information for your convenience. Shipping Options: - Standard shipping: Delivery within 5-7 business days. - Express shipping: Delivery within 2-3 business days. - International shipping: Delivery time varies depending on the destination country. Note: Additional charges may apply for international shipping and express delivery. We take great care in packaging and shipping our Pulse Valve Diaphragm to ensure it arrives in pristine condition. For any further inquiries or specific packaging requests, please do not hesitate to contact us. Thank you for choosing our product! DB16 DB16/G Dust Collector Pulse Jet Valve Diaphragm VNP206 VEM206 VNP306 VEM306 2
