Name: High Temperature Resistance DB18M Diaphragm For Mecair Pulse Valve VNP608 VNP708,
Brand: YW DKE TRADING COMPANY
SKU: DB18M
Availability: InStock

Home Products Pulse Valve Diaphragm

High Temperature Resistance DB18M Diaphragm For Mecair Pulse Valve VNP608 VNP708,

Product Details:

Place of Origin:	China
Brand Name:	Mecair
Certification:	CE
Model Number:	DB18M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 pieces/1Month

Contact Now

Detailed Product Description

Diaphragm Material:	NBR/	Heating Range:	−30°C/+200°C
NBR Heating Range:	−20°C/+80°C	PRESSURE RANGE:	0.5 ~7.5 Bar
Colour:	Black	Size:	1"
Highlight:	VNP608 Pulse Valve Diaphragm , Mecair Pulse Valve DB18M Diaphragm , High Temperature Resistance DB18M Diaphragm

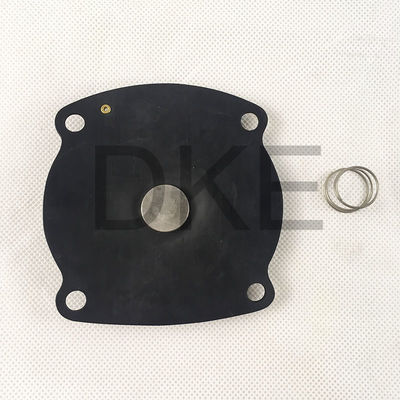

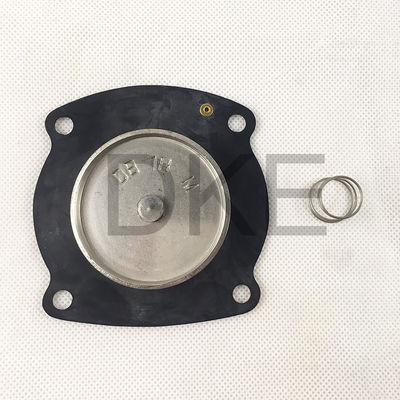

DB18M Diaphragm For Mecair Pulse Valve VNP608 VNP708

Product Attributes

Model No.: DB18M

Brand: Mecair

Product Name: Pulse Valve Diaphragm

1 Set: 1pc Diaphragm, 1pc Spring

Packaging: Individual Plastic Bag

Fitted Valve Port: 1'', 1 1/2''

Diaphragm Material:: Nbr, Fkm

Fitted Valve Model: Vnp608, Vem608, Vnp708, Vem708

Main Features:

1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change
fluid pressure into drive power.

2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction.
This layer of fabric give tremendous design flexibity.

3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or
require extremely high-strength.

4. Facbric-reinforced diaphragms advantages:
* No leakage * No Lubrication * No Breakaway Force
* No Friction * Wide Pressure Ranges * High Strength
* Low Cost * Simple Design * Versatility

5. EPDM, FKM all available.

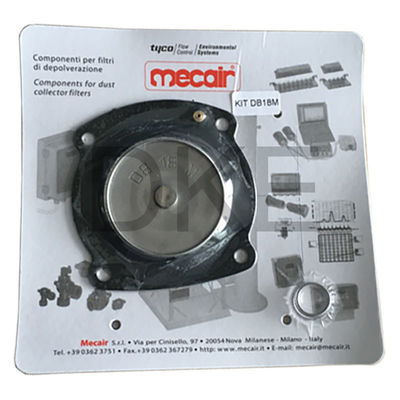

DB 18/G Mecair Type Pulse Valve Diaphragm Kit

Mecir manufactures and exports wide range of replacement diaphragm repair kits for Mecair pulse valves. These are made of NBR The ordering code is DB16, DB18, DB112, DB114, DB116, DB120. The following is DB18/G diaphragm repair kit for Mecair 1'' pulse valves. And the quality of the diaphragm kits mean so much to the pulse valve service life and working steadily. Pls call or email us for availability, delivery times and for our competitive prices.

DB 18/G suitable valves:

- VNP/VEP/VEM 208
- VNP/VEP/VEM 308
- VNP/VEP/VEM 408
- VNP/VEP/VEM 508
- VNP/VEP/VEM 608
- VNP/VEP/VEM 708

Main Dimension of DB18M Pulse Valve Diaphragm:

High Temperature Resistance DB18M Diaphragm For Mecair Pulse Valve VNP608 VNP708, 0

Ordering Code of Diaphragm For Mecair Pulse Valve:

Ordering code	Fitted valve code	Valve port size	Material
DB16/G	VNP206, VEM206, VNP306, VEM306	3/4''	NBR
DB18/G	VNP208, VEM208, VNP308, VEM308, VNP408, VEM408	1''	NBR
DB18M	VNP608, VEM608, VNP708, VEM708	1'', 1-1/2''	NBR
DB112/G	VNP212, VEM212, VNP312, VEM312, VNP412, VEM412	1-1/2''	NBR
DB114/C	VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714	1-1/2''	NBR
DB116/C	VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716	2''	NBR
DB120/C	VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720	2-1/2'', 3''	NBR
Tips: EPDM, FKM all available.

Packing and Shipping:

Packaging and Shipping for Pulse Valve Diaphragm: The Pulse Valve Diaphragm is carefully packaged to ensure its safe arrival and protection during shipping. The following packaging methods and materials are used: - Each diaphragm is individually wrapped in a plastic bag to protect it from dust and moisture. - The diaphragms are then placed in a sturdy cardboard box with added cushioning material to prevent any damage during transit. - The box is sealed with tape and labeled with the product name, quantity, and handling instructions. - For bulk orders, the diaphragms are packed in larger crates or pallets and secured with straps for added stability. Our shipping process is efficient and reliable, with a variety of options available to meet your specific needs. We work with trusted shipping carriers to ensure timely delivery and provide tracking information for your convenience. Shipping Options: - Standard shipping: Delivery within 5-7 business days. - Express shipping: Delivery within 2-3 business days. - International shipping: Delivery time varies depending on the destination country. Note: Additional charges may apply for international shipping and express delivery. We take great care in packaging and shipping our Pulse Valve Diaphragm to ensure it arrives in pristine condition. For any further inquiries or specific packaging requests, please do not hesitate to contact us. Thank you for choosing our product! High Temperature Resistance DB18M Diaphragm For Mecair Pulse Valve VNP608 VNP708, 1
