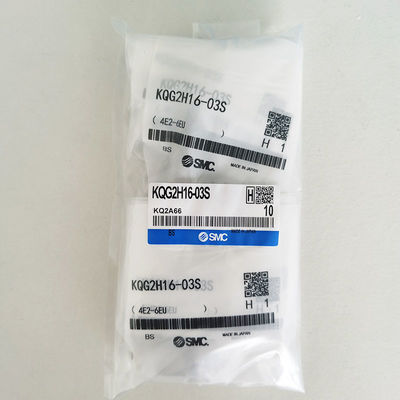

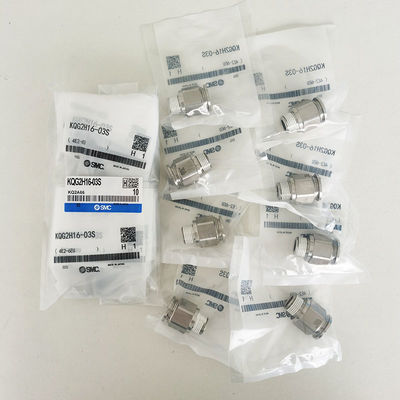

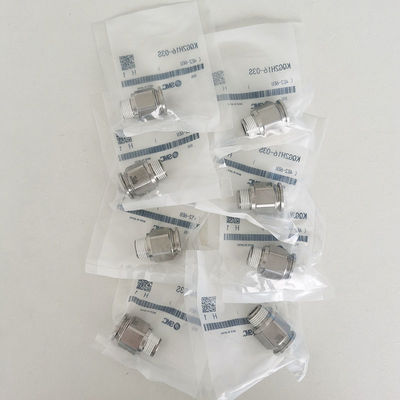

SMC KQG2H16-00
Original Straight Connectors SUS316 Push-In Connection
Product Description:
Union Push to Connect Fittings, 316 Stainless Steel (KQG2H16-00)
KQG2H Series
SMC One-Touch fitting.
Features
· Compact and lightweight.
· Grease-free.
· Can be used with steam.
· Metal part: SUS316, Seal part: special FKM.
· Working fluid temperature: -5 to +150°C
· Conforms to the Food Sanitation Act of Japan. (Part materials conform to the tool and packaging container standards test.)
Applications
· Used for connecting tubes in one direction.
Technical Parameters:
Applicable Tubing materials available for using include:
- FEP
- PFA
- Nylon
- Soft Nylon (note 1)
- Polyurethane
- Polyolefin
Tubing 0.D.:Ø3.2, Ø4, Ø6, Ø8, Ø10, Ø12, Ø16
The applicable fluids are Air, Water and Steam (note 3).
The operating pressure range is -100 kPa to 1 MPa (note 4), with a proof pressure of up to 3.0 MPa.
The ambient and fluid temperature is within the range of -5 to 150°C (note 5). The temperature shall not freeze and does not require any lubricant.
The sealant should be applied on the threads.
For FEP tubing/TH Series, the condition of mounting the inner sleeve should not be lower than 80°C. For Super PFA tubing/TL Series, the temperature should not be lower than 120°C.
Applications:
The KQG2 series one-touch fittings are a great option for those in need of an easy-to-use, cost-effective solution. They are highly versatile and suitable for a wide range of tubing, including FEP, PFA, nylon, soft nylon, polyurethane, and polyolefin. Additionally, these fittings can also be used with air, water, and steam, and include FKM seals for completestrengthen the protection.
Furthermore, their grease-free design allows for hassle-free installation and is the perfect choice for steam applications.
In conclusion, the KQG2 series one-touch fittings are a great asset for anyone in need of an efficient and reliable solution.
.
| Straight Union: KQG2H |
Applicable
tubing O.D
(mm) |
Model |
Note 1)
ØD |
L |
M |
Note 2)
Efective
area (mm²) |
Weight |
| ø3.2 |
KQG2H23-00 |
9 |
25 |
12 |
3.4 |
6.5 |
| ø4 |
KQG2H04-00 |
9 |
26.2 |
12.6 |
5.6 |
6.5 |
| ø6 |
KQG2H06-00 |
12 |
28.2 |
13.6 |
13.1 |
11.5 |
| ø8 |
KQG2H08-00 |
14 |
33.2 |
16.1 |
26.1 |
16.6 |
| ø10 |
KQG2H10-00 |
17 |
35 |
17 |
41.5 |
26 |
| ø12 |
KQG2H12-00 |
19 |
38.2 |
18.6 |
58.3 |
32.2 |
| ø16 |
KQG2H16-00 |
24.6 |
42.6 |
20.8 |
113 |
53.7 |
| Type |
[Fitting] One-Touch Coupling |
Fitting Type |
Union with same diameter |
| Tube Size 1(φ) |
- |
Body Material |
316 Stainless Steel |
| Application |
Standard/Mini |
Packing, Material of O-Ring |
[Fluororubber] Fluorine Rubber |
| Tube to Tube Union Shape |
[Partition Unions] Partition unions |
Compatible Fluid |
Water / Air |
| Number of Connection Tubes(piece) |
2 |
- |
- |
