Name: Union Push To Connect Fittings 316 Stainless Steel(KQG2H04-06)
Brand: YW DKE TRADING COMPANY
SKU: KQG2H04-06
Availability: InStock

Home Products Pneumatic Pipe Fittings

Union Push To Connect Fittings 316 Stainless Steel(KQG2H04-06)

Product Details:

Place of Origin:	China
Brand Name:	SMC
Certification:	CE
Model Number:	KQG2H04-06

Payment & Shipping Terms:

Minimum Order Quantity:	1piece
Price:	Negotiation
Packaging Details:	Carton /As The Clients Require
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 pieces/1Month

Contact Now

Detailed Product Description

Material:	SS316	Temperature Of Media:	-5~150℃
Media:	Air Or Liquid	Pressure:	0-1mpa
Application Area:	Aerospace Industry	Applicable Tubing O.D:	ø4-ø6
Highlight:	KQG2H04-06 Connect fittings , Union Push To Connect Fittings , 316 Stainless Steel Connect fittings

SMC KQG2H04-06

Pressure 0-1mpa Temperature-5~150℃ SS316

Product Description:

Different Diameter Straight Coupling - KQG2 Series

SMC’s KQG2 stainless steel range provides engineers with a choice of high performance, lightweight, compact push in fittings for when resistance to corrosion, chemicals and high temperatures is vital. 30% smaller and 62% lighter than the existing KQG range and available to tubing diameters from 3.2 to 16mm. Suitable for use with compressed air, water, steam and able to perform across a diverse range of pressure (-100kPa to 1MPa) and temperature conditions (-5°C to +150°C).

Threaded, Tube-to-Tube & Adaptors - SMC KQG2

KQG2 SUS316 Stainless Steel Fittings

SMC KQG2 series one-touch pneumatic fittings are manufactured from SUS316 stainless steel, offering corrosion resistant properties that are better than grade 304 stainless steel. SUS316 stainless steel offers higher pitting and corrosion resistance properties, and is especially suitable for chloride environments.

Applications

KQG2 series one-touch fittings make use of FKM seals and may be used with a variety of tubing including nylon, soft nylon, polyurethane, polyolefin, FEP and PFA. The fittings are suitable for use with steam and are grease-free.

Applicable Tubing:

Applicable Tubing	Applicable Tubing	FEP, PFA, Nylon, Soft nylon Note ¹⁾, Polyurethane, Polyolefin
Applicable Tubing	Tubing 0.D.	Ø3.2, Ø4, Ø6, Ø8, Ø10, Ø12, Ø16
Specifications	Fluid Note³⁾	Air, Water, Steam Note²⁾
	Operating pressure range	-100 kPa to 1 MPa Note⁴⁾
	Proof pressure	3.0 MPa
	Ambient and fluid temperature Note⁵⁾	- 5 to 150°C (No freezing) Note^₄₎
	Lubricant	Grease-free specification
	Seal on the threads	With sealant
Temperature Condition of Mounting the Inner Sleeve	Tubing	Temperature
	FEP tubing/TH Series	80°C or more
	Super PFA tubing/TL Series	120°C or more

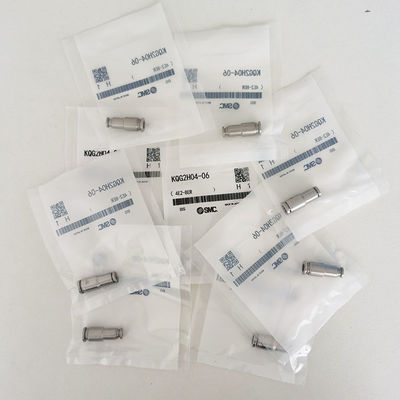

Union Push To Connect Fittings 316 Stainless Steel(KQG2H04-06) 0

Different Diameter Straight: KQG2H
Applicable tubing O.D (mm)		Model	Note ¹⁾ ØD	L	M1	M2	Note ²⁾ Efective area (mm²)	Weight
a	b	Model	Note ¹⁾ ØD	L	M1	M2	Note ²⁾ Efective area (mm²)	Weight
ø3.2	ø4	KQG2H23-04	9	25.6	12	12.6	3.4	6.5
ø4	ø6	KQG2H04-06	12	27.2	12.6	13.6	5.6	11.6
ø6	ø8	KQG2H06-08	14	30.7	13.6	16.1	13.1	16.3
ø8	ø10	KQG2H08-10	17	34.1	16.1	17	26.1	26
ø10	ø12	KQG2H10-12	19	36.6	17	18.6	41.5	33.3
ø12	ø16	KQG2H12-16	24.6	40.4	18.6	20.8	58.3	54.7

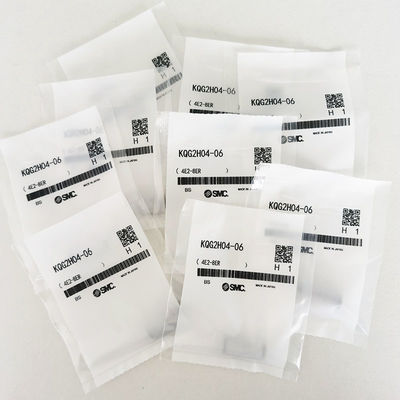

Union Push To Connect Fittings 316 Stainless Steel(KQG2H04-06) 1

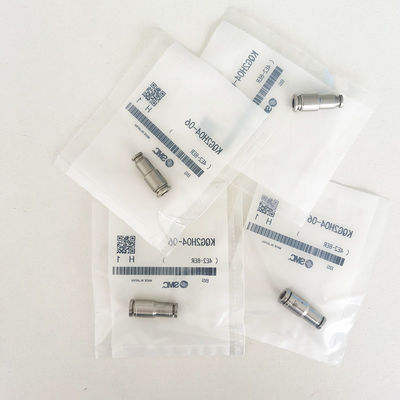

Union Push To Connect Fittings 316 Stainless Steel(KQG2H04-06) 2

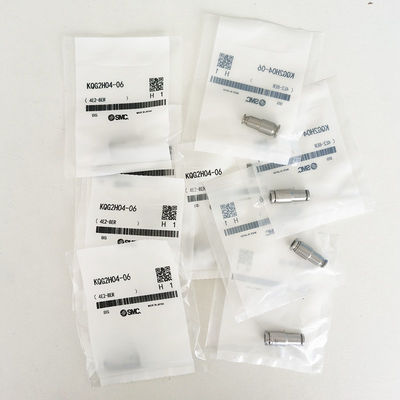

Union Push To Connect Fittings 316 Stainless Steel(KQG2H04-06) 3

Note 1) :For soft nylon tubing, water cannot be used.

Note 2) :Consult with SMC regarding applicable tube separately.

Note 3) :Avoid using in a vacuum holding application such as a leak tester, since there is leakage.

Note 4) :Check the operating pressure range and operating temperature range of the tubing.

Note 5) :It is recommended that you use the inner sleeve in the following conditions (Except Ø3.2):

●When using at a high temperature.
