SMC KQG2H16-04S
Polishing Pneumatic Connectors Used In Automation
Product Description:

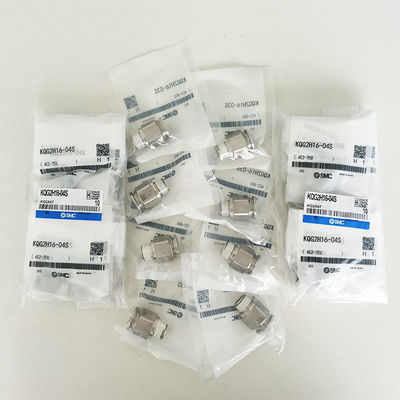

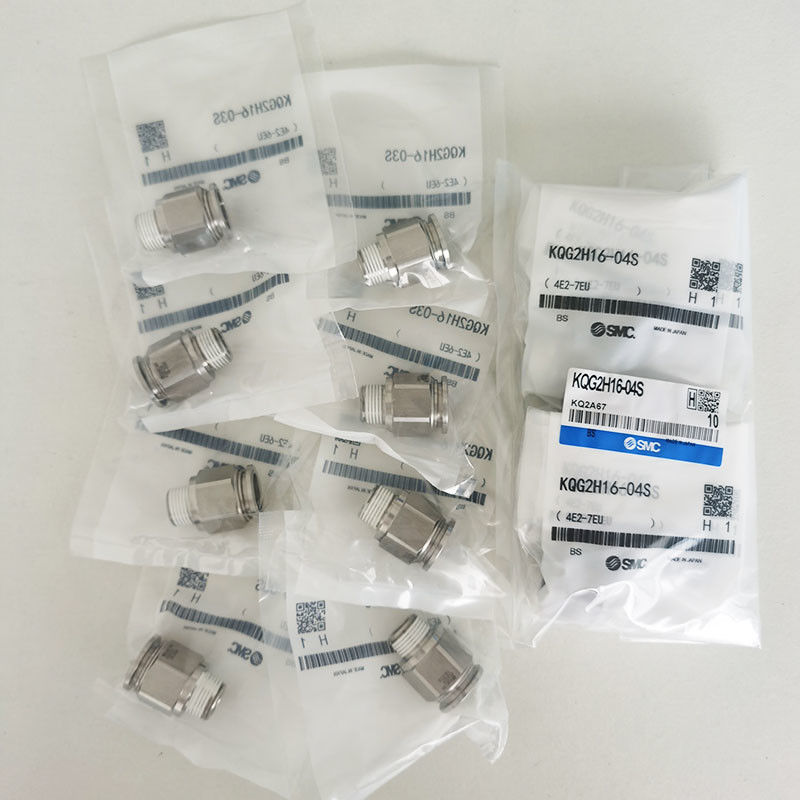

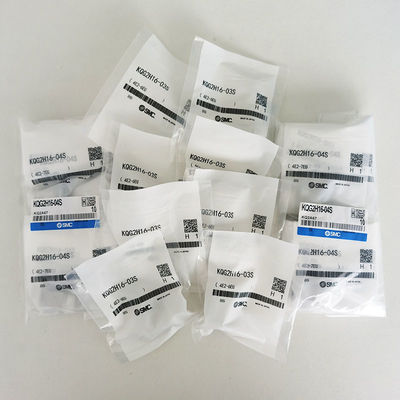

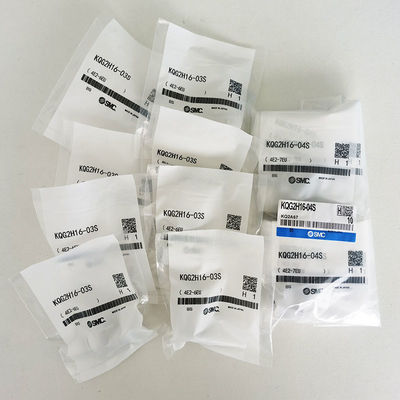

Male Connector Push to Connect Fittings with Thread Sealant, 316 Stainless Steel (KQG2H16-04S)
KQG2H Series
Part Number: KQG2H16-04S
SMC One-Touch fitting.
Features
· Compact with reduced weight.
· Non-grease.
· Can be used with steam.
· Metal part: SUS316, Seal part: special FKM.
· Operating fluid temperature: -5 to +150°C
· Conforms to the Food Sanitation Act of Japan. (Part materials conform to the tool and packaging container standards test.)
Applications
· Used for piping in one direction from a female thread.
Applications:
Pneumatic Pipe Fittings are widely used in many industries, such as automotive, medical, chemical, food processing and so on. SMC's KQG2H16-04S Pneumatic Pipe Fittings have a brand name of SMC, a model number of KQG2H16-04S, and they are made in China with CE certification. The minimum order quantity of this product is 10, and the delivery time is 1-7 working days after payment. The payment terms are negotiable. The supply ability is up to 5000PCs per month. The shapes of these pneumatic pipe fittings include straight, elbow and T type. The package can be customized according to the customers' requirements. The material is SS316, and the size is 1/2 inch. The pressure is up to 0~1Mpa. With the features of high quality, reliable performance and long service life, SMC's KQG2H16-04S Pneumatic Pipe Fittings have been widely used as the pneumatic joints, pneumatic connectors and pneumatic joints fittings.
Support and Services:
Our technical support and services for Pneumatic Pipe Fittings include:
- 24/7 Technical Support
- On-site Installation and Maintenance
- Troubleshooting and Repair Assistance
- Product Training and Certification
- Warranty and Replacement Parts
| Male Connector: KQG2H |
Applicable
tubing O.D
(mm) |
Connection
thread
R, M |
Model |
H
(Width
across flat) |
Note 1)
ØD |
L |
A* |
M |
Note 2)
Efective
area (mm²) |
Weight |
| ø3.2 |
M5 x 0.8 |
KQG2H23-M5 |
8 |
8 |
16.5 |
13.5 |
12 |
3 |
3.3 |
| 1/8 |
KQG2H23-01S |
10 |
15.4 |
12.3 |
3.4 |
5.7 |
| 1/4 |
KQG2H23-02S |
14 |
21 |
16.3 |
16.9 |
| ø4 |
M5 x 0.8 |
KQG2H04-M5 |
10 |
8.7 |
17.1 |
14.1 |
12.6 |
4 |
5 |
| 1/8 |
KQG2H04-01S |
15.3 |
12.2 |
5.6 |
4.7 |
| 1/4 |
KQG2H04-02S |
14 |
20.9 |
16.2 |
15.8 |
| ø6 |
M5 x 0.8 |
KQG2H06-M5 |
12 |
11.1 |
19.1 |
16.1 |
13.6 |
4 |
7.7 |
| 1/8 |
KQG2H06-01S |
18.1 |
15 |
13.1 |
7 |
| 1/4 |
KQG2H06-02S |
14 |
20.8 |
16.1 |
14.5 |
| 3/8 |
KQG2H06-03S |
17 |
23 |
17.9 |
27.3 |
| ø8 |
1/8 |
KQG2H08-01S |
14 |
13.4 |
24.5 |
21.4 |
16.1 |
26.1 |
12.8 |
| 1/4 |
KQG2H08-02S |
22.3 |
17.6 |
12.9 |
| 3/8 |
KQG2H08-03S |
17 |
23.7 |
18.6 |
24.7 |
| ø10 |
1/8 |
KQG2H10-01S |
17 |
16.4 |
25.5 |
22.4 |
17 |
26.1 |
18.9 |
| 1/4 |
KQG2H10-02S |
27.9 |
23.2 |
41.5 |
21.6 |
| 3/8 |
KQG2H10-03S |
23 |
17.9 |
20.6 |
| 1/2 |
KQG2H10-04S |
22 |
28.6 |
22.2 |
51.1 |
| ø12 |
1/4 |
KQG2H12-02S |
19 |
18.5 |
30.5 |
25.8 |
18.6 |
58.3 |
27.4 |
| 3/8 |
KQG2H12-03S |
24.7 |
19.6 |
20.5 |
| 1/2 |
KQG2H12-04S |
22 |
28.7 |
22.3 |
44.6 |
| ø16 |
3/8 |
KQG2H16-03S |
24.6 |
33.6 |
28.5 |
20.8 |
81 |
46 |
| 1/2 |
KQG2H16-04S |
24 |
29.5 |
23.1 |
113 |
37.4 |
After-sales clause:
One year quality guarantee Policy
We will check the goods quality before shipment. If there are some unexpected problems
happen, we hope to solve the problems with buyer through friendly in the following ways:
1, If it is quality problem, buyer can submit argue within 15days after receiving the goods,
buyer must provide photos or video and other evidence to seller for identify.
2, Man-made damaged, buyers take full responsibility.
3, Product quality processing program:
1) The buyer return the products for bad quality reasons for one year (not included those
damages coursed by shipping or Man-made damaged ). A 15% restocking fee is
assessed for any products returned in "used" condition. And then we will send a new
product to buyer and pay for the resend shipping cost.
2) If the goods (total price including shipping is less than 10USD) has quality problems, we
will resend a new product in buyer next order; if buyer don't plan to make a new order in
the near term, buyer can pay the resend shipping cost and ask to resend a new product. If
there is an issue with the products, please contact us– we will solve it as soon as we get
your email.
