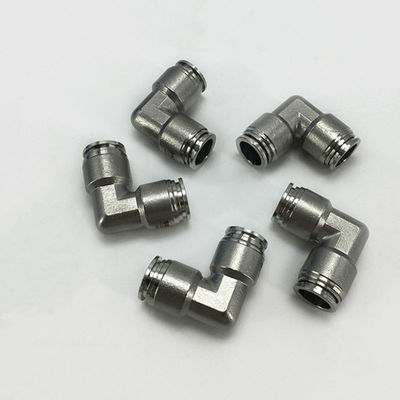

SMC KQG2L10-00 Union Elbow Push To Connect Fittings SS316

Product Description:

The SMC KQG2 series of stainless steel one-touch pneumatic fittings provides engineers with reliable performance and excellent protection against corrosion, chemicals, and high temperatures. These high-performance fittings offer a variety of advantages, including being 30% smaller and 62% lighter than conventional fittings and come with a compact design, able to be used with tubing diameters ranging from 3.2mm to 16mm.

Furthermore, KQG2 series is highly versatile, appropriate for usage in compressed air, water, and steam systems. Its operating pressure range ranges from (-100kPa to 1MPa) and temperature conditions are between (-5°C to +150°C). Taking it a step further, they are made of SUS316 stainless steel, higher grade than SUS304 stainless steel. This type of stainless steel guarantees enhanced pitting and corrosion resistance capabilities, especially in chloride environments.

Features:

This product is significantly more compact and light than the KQGL06-01S, standing 30% shorter and weighing 62% less. Its metal parts are fabricated using stainless steel 316, with specialized FKM for the seal parts. Its expansive compatibility with tubing materials makes it suitable for a wide variety of applications; it can safely be used with FEP, PFA, nylon, soft nylon, polyurethane and polyolefin tubing across a temperature range of -5 to 150°c.

Additionally, it is grease-free, so it is suitable for use with steam as well.

Technical Parameters:

Applications:

The KQG2 series one-touch fittings are the perfect solution for anyone looking for an easy-to-use, cost-effective connection. Not only are they highly versatile and suitable for a wide range of tubing, like FEP, PFA, nylon, soft nylon, polyurethane, and polyolefin, but they can also be used with air, water, and steam. Added to their unique design, these fittings also come with FKM seals for complete strengthen the protection.

Furthermore, the grease-free design of the KQG2 series fittings ensures hassle-free installation, making them an ideal option for steam applications. The one-touch system makes it easy to assemble and remove for simple maintenance.

In conclusion, the KQG2 series one-touch fittings are the perfect choice for anyone in need of an efficient and reliable solution. With a range of compatible materials and a highly versatile design, they can meet any application requirements.

Support and Services:

Pneumatic Hose Fittings technical support and services include:

• On-site technical support and installation services
• Troubleshooting and maintenance services
• Regular inspection and maintenance services
• Replacement parts and upgrades

Packing and Shipping:

Pneumatic Hose Fittings Packaging and Shipping:

The pneumatic hose fittings are packaged in plastic wrap and cardboard boxes. They are then placed onto pallets and secured with shrink wrap. The pallets are then loaded onto trucks and shipped to the destination.
