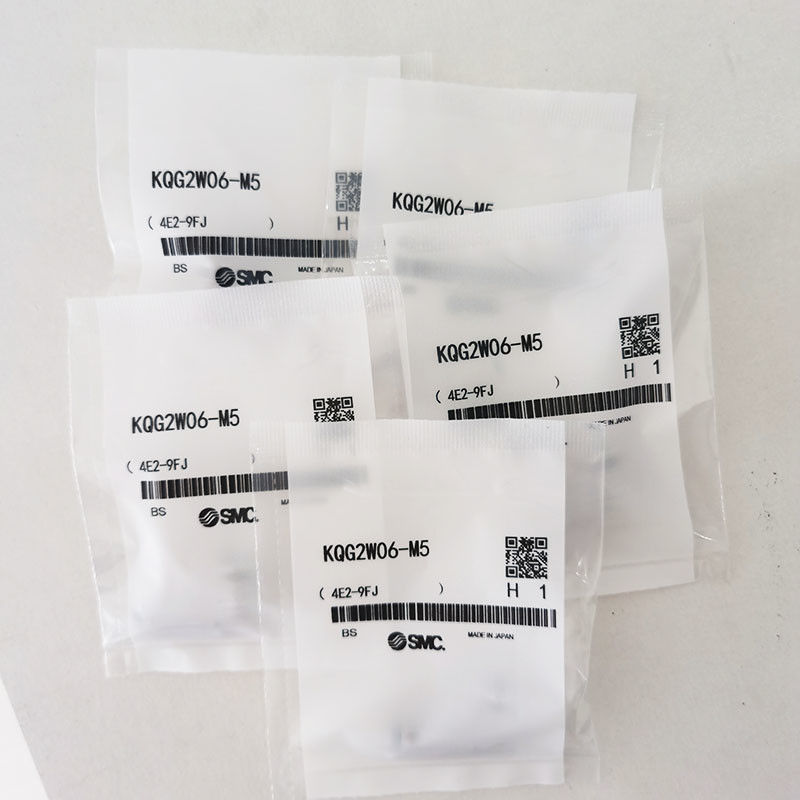

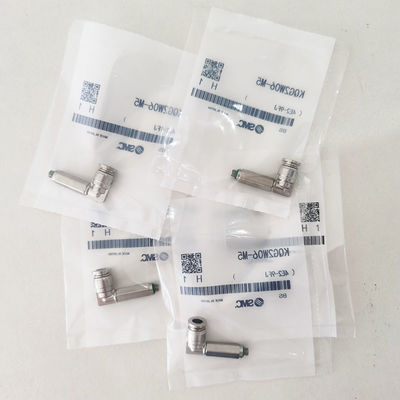

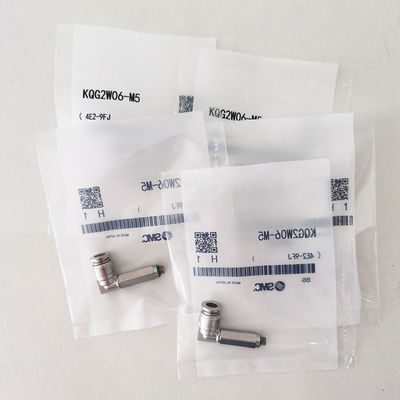

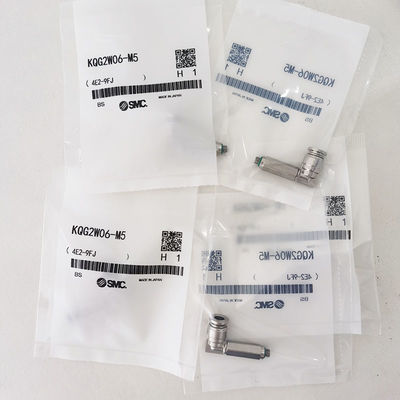

SMC KQG2W06-M5 Long Elbow Union Push to Connect Fittings,SS316
Product Description:
The SMC KQG2 series is a collection of stainless steel one-touch pneumatic fittings that offer reliable performance and strong resistance against corrosion, chemicals, and high temperatures. These high-performing fittings have many advantages, including being 30% smaller and 62% lighter than traditional fittings. Their compact design allows them to be used with tubing diameters ranging from 3.2mm to 16mm.
In addition to their size and weight benefits, the KQG2 series is also incredibly versatile and compatible with a wide range of compressed air, water, and steam systems. They have an impressive operating pressure range of (-100kPa to 1MPa) as well as a temperature range of (-5°C to +150°C). These fittings are crafted from SUS316 stainless steel, which is considered a higher-grade option compared to SUS304 stainless steel. This higher-grade steel provides improved resistance against pitting and corrosion, especially in chloride-rich environments.
Features:
· Compact and lightweight.
· Working fluid temperature: -5 to +150°C
· Materials: metal parts; SUS316, seal part; special FKM.
· Non-grease. Can be used with steam.
· Conforms to the Food Sanitation Act of Japan.
· The pipe is multi-layered and is used to prevent fitting interference.
| Usable fluids |
Air, water, steamNote 2) Note 3) |
| Operating pressure rangeNote 4) |
-100 kPa to 1 MPaNote 5) |
| Proof pressure |
3.0 MPa |
| Ambient temperature and operating fluid temperatureNote 6) |
-5 to 150°C (no freezing)Note 5) |
| Lubricant |
Grease-free finish |
| Seal (thread portion) |
With sealant |
Note 1) For soft nylon tube, water cannot be used.
Note 2) Confirm applicable tube separately.
Note 3) Using special FKM that is resistant to steam.
Note 4) It is not completely airtight, so please avoid use in leak testers, etc., where a vacuum is maintained.
Note 5) Please confirm operating pressure range and operating temperature range.
Note 6) Please equip an inner sleeve for the following conditions. (ø3.2, ø1/8 "are excluded)
· When using with fluids or in environments that have extreme temperature changes.
· When using at a high temperature.
Applications:
A half union for narrow spaces where the hex socket inside the body can be tightened with a hex key.
- Tube materials: FEP, PFA, nylon, soft nylonNote 1), polyurethane, polyolefin
- Tube outer diameter (millimeter size): ø3.2, ø4, ø6, ø8, ø10, ø12, ø16
- Tube outer diameter (inch size): ø1/8, "ø5/32, "ø1/4, "ø5/16, "ø3/8, "ø1/2 "
Note 1) For soft nylon tube, water cannot be used.
