Name: SMC KQG2E10-00 Bulkhead Connector Push To Connect Fittings
Brand: YW DKE TRADING COMPANY
SKU: KQG2E10-00
Availability: InStock

Home Products Pneumatic Pipe Fittings

SMC KQG2E10-00 Bulkhead Connector Push To Connect Fittings

Product Details:

Place of Origin:	China
Brand Name:	SMC
Certification:	CE
Model Number:	KQG2E10-00

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton /As The Clients Require
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 pieces/1Month

Contact Now

Detailed Product Description

Body Material:	SS316	Tube Size:	10mm
Connection Style:	Bulkhead Union	For Use With:	Air ; Water ; Steam
Gender:	Female	Port Size:	18mm
Thread Type:	UNF	Standards:	Food Sanitation Law
Highlight:	SMC KQG2E10-00 Bulkhead Connector , Bulkhead Connector Push To Connect Fittings

SMC KQG2E10-00 Bulkhead Connector Push To Connect Fittings,SS316

Features
· Compact and lightweight.
· Grease-free.
· Can be used with steam.
· Metal part: SUS316, Seal part: special FKM.
· Working fluid temperature: -5 to +150°C
· Conforms to the Food Sanitation Act of Japan. (Part materials conform to the tool and packaging container standards test.)
Applications
· Used as a relay connection between tubes when mounting panels, etc.

Specifications

Types	[One-Touch Couplings] Single-Action	Fitting Type	Union with same diameter
Applicable Fluid	Water / Air / Steam	Body Material	SUS316
Application	Standard/Mini	Packing, Material of O-Ring	[Fluororubber] Special FKM (Fluorine Coating)
Union, Equal Dia.	[Partition Unions] Bulkhead Union	Operating Temperature(°C)	-5～150
Applicable Tube O.D.1(φ)	10	Number of Connection Tubes(piece)	2

Applicable tube: millimeter size
Connection thread: M, R, Rc

Applicable tubing outer diameter (mm)	Model	T (M)	H (width across flats)	L	Mounting hole	M	Effective cross-sectional area (mm²) ^Note)	Weight (g)
ø3.2	KQG2E23-00	M10 × 1	12	32.2	11	12	3.4	14
ø4	KQG2E04-00	M10 × 1	12	32.4	11	12.6	5.6	14
ø6	KQG2E06-00	M14 × 1	17	33.6	15	13.6	13.1	25.8
ø8	KQG2E08-00	M15 × 1	19	36.4	16	16.1	26.1	30.4
ø10	KQG2E10-00	M18 × 1	21	37.2	19	17	41.5	40.3
ø12	KQG2E12-00	M20 × 1	24	39.2	21	18.6	58.3	49.9
ø16	KQG2E16-00	M27 × 1	30	42.6	28	20.8	113	87.3

Note) Values are those when using an FEP tube. Value of nylon tubing for ø16 only.

Temperature conditions for equipping inner sleeve

Tube used Temperature

FEP tube / TH series 80°C or more

Super PFA tube / TL series 120°C or more

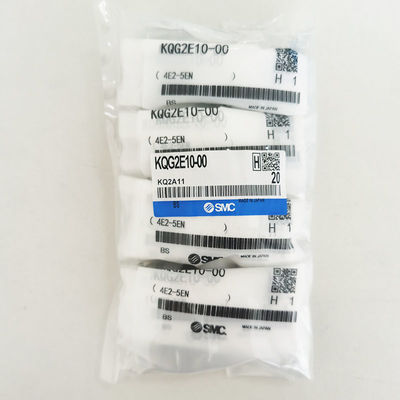

SMC KQG2E10-00 Bulkhead Connector Push To Connect Fittings 0

Overview

Stainless Steel 316 One-Touch Inch and Metric Sizes (UNF, NPT Threads, M, R, Rc Threads) ?Seal Parts: FKM ?Can be Used with Steam ?Grease-Free ?Applicable Tubing Material Includes FEP, PFA, Nylon, Soft Nylon, Polyurethane, Polyolefin
Series KQG2 is a one-touch fitting made of all stainless steel SUS316, except seal parts. The series is suitable for use with steam and is grease-free. Applicable tubing includes FEP, PFA, nylon, soft nylon, polyurethane and polyolefin. The KQG2 series is available in both metric and inch sizes. The KQG2 is more compact and lightweight, and offers more configuration variations and tube sizes than the KQG series.

Services

In addition to technical support, we also offer a range of services to ensure the satisfaction of our customers:

Customized product design and development
Product testing and certification
On-site installation and maintenance services
Product training for your team
Fast and efficient shipping and delivery

Our goal is to provide our customers with a seamless experience from the moment they purchase our pneumatic pipe fittings to the installation and maintenance process. We are dedicated to meeting your needs and exceeding your expectations.

Packing and Shipping:

Package and Shipping

The Pneumatic Pipe Fittings are carefully packaged and shipped to ensure safe delivery to our customers. Each fitting is individually wrapped and then placed in a sturdy, corrugated cardboard box to protect it during transport.

We offer various shipping options to meet our customers' needs. These include standard ground shipping, expedited shipping, and international shipping. Our shipping rates are calculated based on the weight and destination of the package.

For international orders, we take extra care to comply with all necessary customs regulations and ensure timely delivery. We also offer tracking information for all orders so customers can easily follow the progress of their shipment.

At Pneumatic Pipe Fittings, we are committed to providing high-quality products and excellent customer service. We strive to make the packaging and shipping process as smooth and efficient as possible for our valued customers.

FAQ:
Q: Where is your factory ? Can we visit your factory?

A:Our factory is located in Ningbo City, Zhejiang Province,China, 17kms away from Ningbo Airport. We sincerely welcome customers to visit our company and factory.

Q: Do you provide samples ?

A: Yes, we could offer the sample for free charge, but do not pay the cost of express freight.

Q: What is your payment term and payment way?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment. Payment

ways are : T/T, Western Union, Paypal, Alipay.

Q:What’s the shipping way?

A: For small packages, we will choose the door to door express, we cooperated with UPS,DHL,FEDEX,TNT more than 10 ye

ars,we gurantee the shipping cost that we offer to you will be the most favorable price among so many suppliers in China.

We will send you the tracking number once we got it.

If you have any other question, welcome contact us.

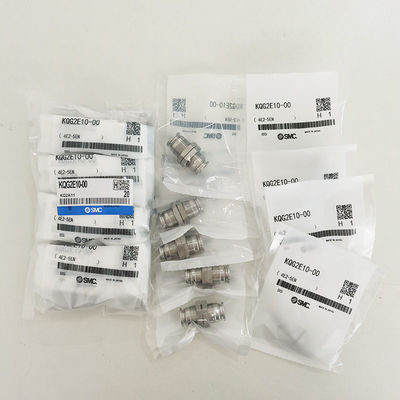

SMC KQG2E10-00 Bulkhead Connector Push To Connect Fittings 2
