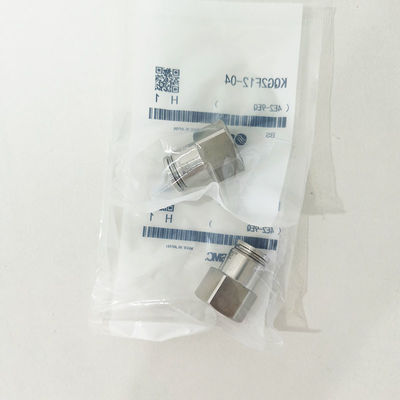

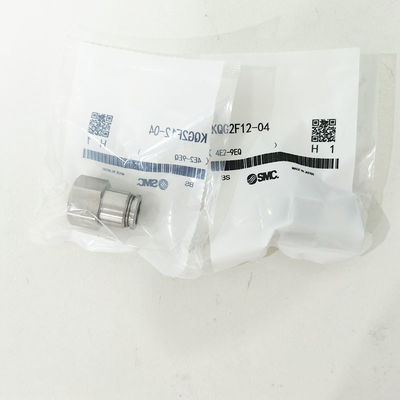

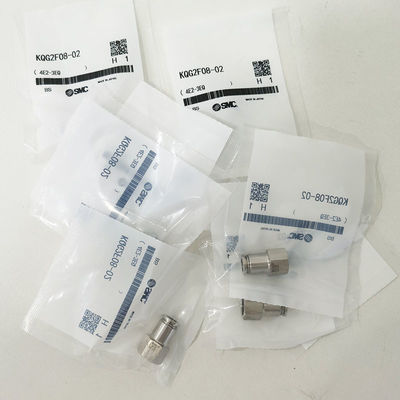

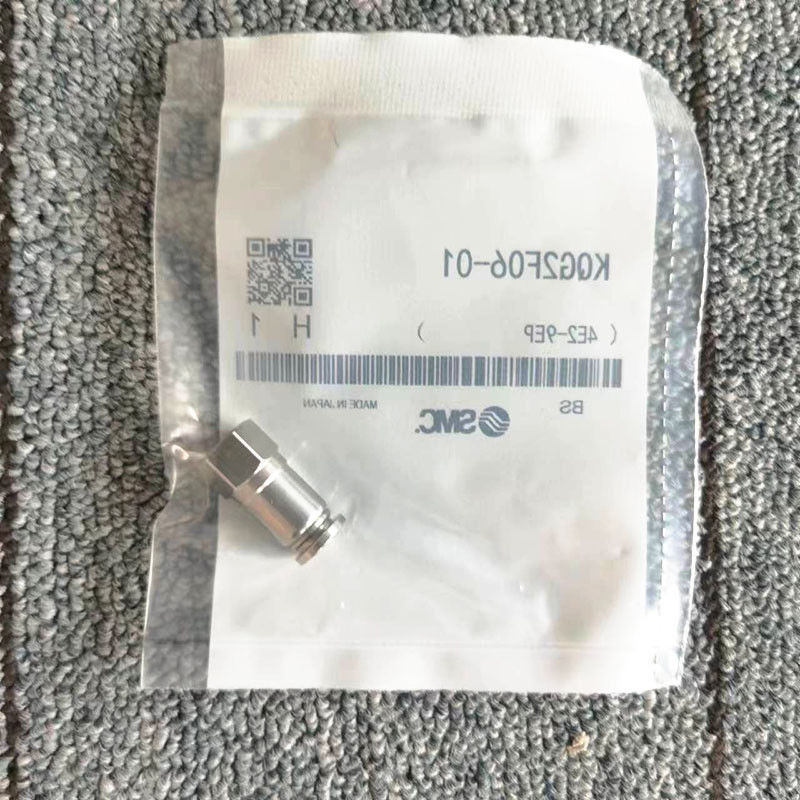

SMC KQG2F Series Female Connector Push To Connect Fittings
Product Description:
Series KQG2 is a one-touch fitting made of all stainless steel SUS316, except seal parts. The series is suitable for use with steam and is grease-free. Applicable tubing includes FEP, PFA, nylon, soft nylon, polyurethane and polyolefin. The KQG2 series is available in both metric and inch sizes. The KQG2 is more compact and lightweight, and offers more configuration variations and tube sizes than the KQG series.
Features:
This product is designed to be highly compact and lightweight, offering approximately 30% shorter dimensions and a 62% lighter weight when compared to the KQGF series model. Made with top quality materials, it features stainless steel 316 for its metal components and special FKM for its seal parts.
Not only is it durable, but it also offers versatility with the ability to be used with various tubing materials such as FEP, PFA, nylon, soft nylon, polyurethane, and polyolefin. This makes it a suitable choice for a wide range of applications.
Its temperature range of -5 to 150°C provides flexibility and reliable performance. In addition, it is grease-free, making it compatible for use with steam as well.
Technical Parameters:
| Types |
[One-Touch Couplings] Single-Action / Screw |
Fitting Type |
Screw Mount Direction |
| Applicable Fluid |
Water / Air / Steam |
Body Material |
SUS316 |
| Application |
Standard/Mini |
Thread Material |
SUS316 |
| Packing, Material of O-Ring |
[Fluororubber] Special FKM (Fluorine Coating) |
Screw Mounting, Direction |
Female Straight |
| Operating Temperature(°C) |
-5～150 |
Applicable Tube O.D.1(φ) |
6 |
| Types of connection |
Rc |
Connection screw |
1/8 |
| Number of Connection Tubes(piece) |
1 |
- |
- |
Applicable tube outer diameter
mm |
Connection thread
Rc |
Model |
H
(width across flats) |
øDNote 1) |
L1 |
L2 |
M |
Effective cross-sectional areaNote 2)
(mm2) |
Weight
(g) |
| ø3.2 |
1/8 |
KQG2F23-01 |
12 |
8 |
23.3 |
9.8 |
12 |
3.4 |
8.9 |
| ø4 |
1/8 |
KQG2F04-01 |
12 |
8.7 |
23.7 |
9.8 |
12.6 |
5.6 |
9.2 |
| 1/4 |
KQG2F04-02 |
17 |
28.7 |
13.2 |
21.6 |
| ø6 |
1/8 |
KQG2F06-01 |
12 |
11.1 |
24.2 |
10 |
13.6 |
13.1 |
10.5 |
| 1/4 |
KQG2F06-02 |
17 |
29.2 |
13.4 |
23.1 |
| 3/8 |
KQG2F06-03 |
19 |
30.6 |
14.2 |
24.5 |
| ø8 |
1/8 |
KQG2F08-01 |
14 |
13.4 |
26.3 |
9.6 |
16.1 |
26.1 |
16.3 |
| 1/4 |
KQG2F08-02 |
17 |
31.3 |
13.7 |
25.5 |
| 3/8 |
KQG2F08-03 |
19 |
32.7 |
14.4 |
27 |
| ø10 |
1/4 |
KQG2F10-02 |
17 |
16.4 |
31.6 |
13.9 |
17 |
41.5 |
28.8 |
| 3/8 |
KQG2F10-03 |
19 |
33 |
14.7 |
30.4 |
| ø12 |
1/4 |
KQG2F12-02 |
19 |
18.5 |
32.6 |
13.3 |
18.6 |
58.3 |
37.5 |
| 3/8 |
KQG2F12-03 |
34 |
14.7 |
32.3 |
| 1/2 |
KQG2F12-04 |
24 |
39.3 |
18.4 |
50.2 |
| ø16 |
3/8 |
KQG2F16-03 |
24 |
24.6 |
35.3 |
13.5 |
20.8 |
81 |
59.7 |
| 1/2 |
KQG2F16-04 |
40.6 |
18.8 |
113 |
57 |
Note 1: øD indicates the maximum diameter.
Note 2) Values are those when using an FEP tube. Only the values of ø16 are those when using a nylon tube.
