Name: SMC Pneumatic Fittings Plug KKA4P-02F SUS Female Thread Type KKA Series
Brand: YW DKE TRADING COMPANY
SKU: KKA4P-02F KKA Series
Availability: InStock

Home Products Pneumatic Pipe Fittings

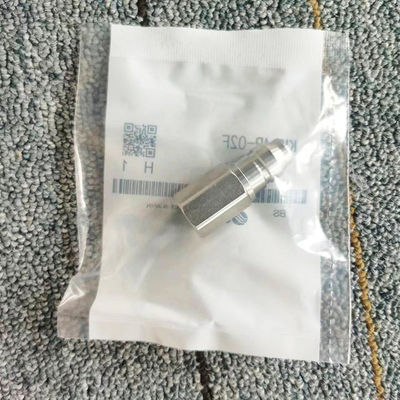

SMC Pneumatic Fittings Plug KKA4P-02F SUS Female Thread Type KKA Series

Product Details:

Place of Origin:	China
Brand Name:	SMC
Certification:	CE
Model Number:	KKA4P-02F KKA Series

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Plastic bag, Box, Carton, Pallet
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 pieces/1Month

Contact Now

Detailed Product Description

Operating Pressure Range(MPa):	0.1-1MPa	Pipe Connection Bore Dia.:	Rc1/4
Operating Temperature Range(°C):	-5～150	Applicable Fluid:	Water / Air
Size Of Body:	1/4	Guaranteed Proof Pressure:	10MPa
Highlight:	KKA Series plug kka4p-02f , Stainless Steel plug kka4p-02f , Female Thread plug kka4p-02f

KKA Series SS316 (KKA4P-02F) Type Plug (P) Female Thread Type S Coupler

Configured Specifications

Type	Standard	Joint Type	Female Threaded Tapped
Male/Female	Plug	Body Material	SUS304
Seal Material	[NBR] 00011	Applicable Fluid	Water / Air
Operating Environment, Applications	Standard	Operating Temperature Range(°C)	-5～150
Operating Pressure Range(MPa)	0～1	Size of Body	1/4
Pipe Connection Bore Dia.	Rc1/4	With or Without Check Valve	Y

S Coupler KKA Series Stainless Steel Type Plug (P) Female Thread Type Specifications

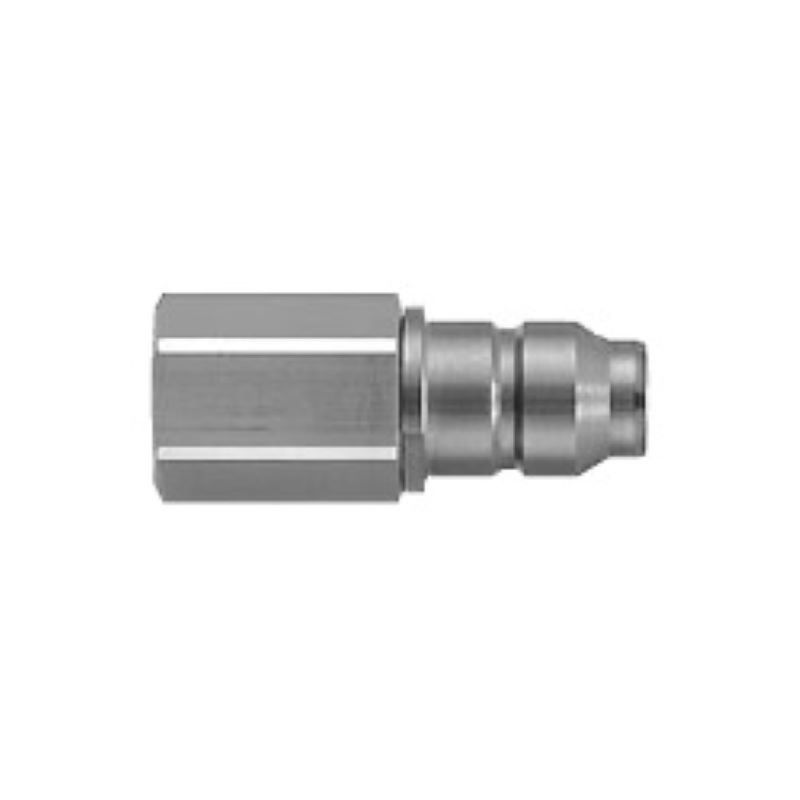

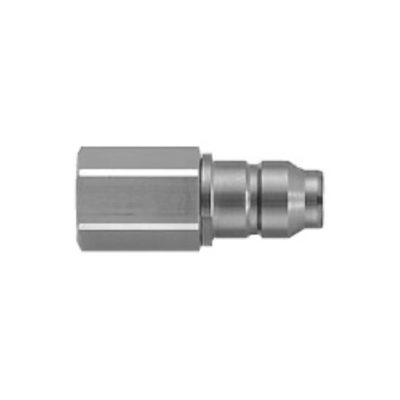

Without, check valve, plug, female thread type external appearance

SMC Pneumatic Fittings Plug KKA4P-02F SUS Female Thread Type KKA Series 0

JIS symbols for the KKA series

SMC Pneumatic Fittings Plug KKA4P-02F SUS Female Thread Type KKA Series 1

Characteristics of Models With Check Valve on Both Sides

Body Size	Liquid Dripping Amount (cm³ per instance)	Aeration Amount (cm³ per instance)
KKA3	0.02	0.1
KKA4	0.04	0.1
KKA6	0.06	0.2
KKA7	0.14	0.5
KKA8	0.27	0.9
KKA9	0.77	2.7

"Liquid dripping amount" refers to the amount of internal water that is lost when the plug socket is disengaged.
"Aeration amount" refers to the amount of external air that is entrained when the plug and socket are connected.

Working Fluid	Water, air
Operating Pressure Range_*1	KKA3: -100 kPa to 1 MPa KKA4, KKA6, KKA7, KKA8, KKA9: 0 to 1 MPa
Guaranteed Proof Pressure	10 MPa
Ambient Temperature and Working Fluid Temperature Range	-5 to +150℃ (no freezing) *Cannot be used for steam.
Non-greased Specification	Does not use grease. (Rubber and metal sliding parts: fluorine coating)
Material	Metal parts: SUS304; rubber parts: fluoroelastomer (special FKM)

*1: Do not use with a leak tester or for vacuum retention as zero leakage cannot be guaranteed.

Performance

Plug connection method: single-action connection and release
Check valve: check valve built-in to both plug and socket sides, without check valve

*The KKA series cannot be connected to the KK series or the KKH series.

Structural Drawing

Plug structural drawing

KKA series structural drawing

Number	Part Name	Material	Note
1	Plug body	SUS304	Fluorine coating
2	Plug rear body	SUS304	-
3	Plug valve	SUS304	-
4	Valve O-ring	Special FKM	Fluorine coating
5	Plug body O-ring	Special FKM	Fluorine coating
6	Plug valve spring	Equivalent to SUS304	KKA3
6	Plug valve spring	SUS304	KKA4, KKA6, KKA7, KKA8, KKA9

Dimensions: Plug (P)

With Check Valve

With check valve, female thread type dimensional drawing

Body Size	Model	T Connection Port Diameter	H Width Across Flats	L₁	L₂	Minimum Hole Diameter	Effective Cross-sectional Area mm²	Weight g
1/8	KKA3P-01F	Rc 1/8	14	36.0	16.0	5.6	17.4	20.2
	KKA3P-02F	Rc 1/4	17	39.6				31.8
	KKA3P-03F	Rc 3/8	19	40.4				35.8
1/4	KKA4P-02F	Rc 1/4	17	43.4	18.9	6.9	26.4	36.1
	KKA4P-03F	Rc 3/8	19	44.4				40.2
	KKA4P-04F	Rc 1/2	24	48.6				69.7
1/2	KKA6P-03F	Rc 3/8		48.7	20.4	10.0	54.2	84.1
	KKA6P-04F	Rc 1/2		52.9				79.7
	KKA6P-06F	Rc 3/4	30	54.6				123.8
3/4	KKA7P-04F	Rc 1/2	32	67.7	27.6	13.5	99.6	217.1
	KKA7P-06F	Rc 3/4	32	69.4				196.8
	KKA7P-10F	Rc 1	41	72.4				325.9
1	KKA8P-06F	Rc 3/4		82.0	35.6	17.5	168.3	420.5
	KKA8P-10F	Rc 1		85.0				391.3
	KKA8P-12F	Rc1 1/4	50	87.3				552.8
1 1/4	KKA9P-10F	Rc 1	55	107.8	49.1	24.6	332.1	986.9
	KKA9P-12F	Rc1 1/4		110.1				925.6
	KKA9P-14F	Rc1 1/2		110.1				848.2
