Place of Origin: | China |
Brand Name: | Camozzi |
Certification: | CE |
Model Number: | S6510 4-1/4 |
Minimum Order Quantity: | 1piece |
---|---|
Price: | Negotiation |
Packaging Details: | Carton /As The Clients Require |
Delivery Time: | 1-7Work Days After Payment |
Payment Terms: | T/T, Western Union paypal |
Supply Ability: | 5000 pieces/1Month |
Threads: | G1/8 | Diameters: | ø4 |
---|---|---|---|
Temperature: | -20°C~80°C | Working Pressure: | Min -0,9 Bar - Max 16 Bar |
Fluid: | Compressed Air | Materials: | Body And Collet In Nickel-plated Brass |
Highlight: | Camozzi Pneumatic Fittings,Brass Pneumatic Fittings,S6510 Pneumatic Fittings |

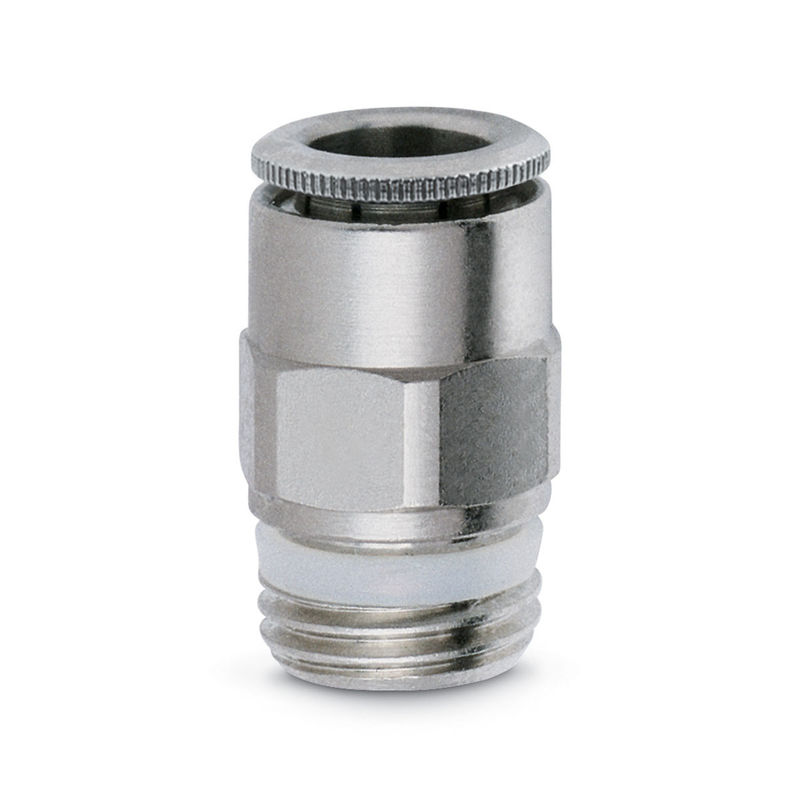

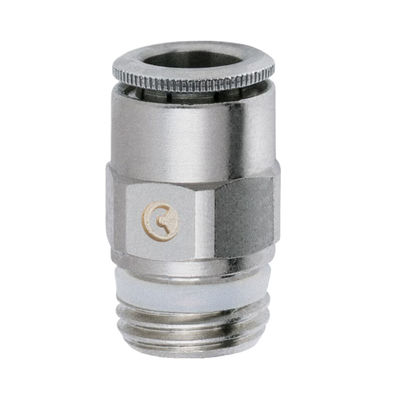

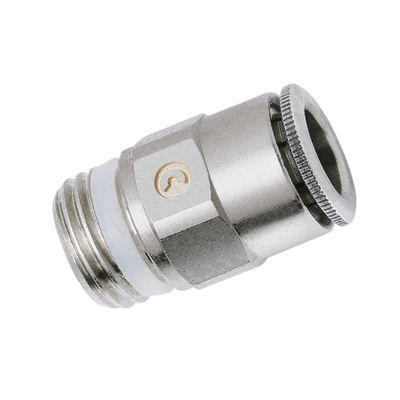

Series 6000 super-rapid fittings have been designed with a special collet which provides an homogeneous tight on the whole surface of plastic tubes, thus ensuring high reliability and a long
service life, also after connections and disconnections of the tube are repeated several times. Many types of threads are also available: metric, BSPP and BSPT.
1. Quick installation, simple and agile, saving space
2. Diverse forms to meet any pneumatic piping needs
3. Even after installation, the plastic pipe can be turned freely
4. The release ring adopts an elliptical design, making disassembly more effortless and convenient
5. All cone tube threads are pre coated with polytetrafluoroethylene leak proof adhesive, which has good sealing performance
Mod. | A | D | C | F | G | H | L | SW | SW1 | Weight (g) |
S6510 4-1/8 | 4 | G1/8 | 3,8 | 8,8 | 13,2 | 5,5 | 18 | 12 | 2,5 | 9 |
S6510 4-1/4 | 4 | G1/4 | 5,5 | 8,8 | 15,2 | 7 | 19,5 | 14 | 2,5 | 15 |
S6510 5-1/8 | 5 | G1/8 | 3,8 | 9,8 | 13,2 | 5,5 | 19 | 12 | 3 | 8 |
S6510 5-1/4 | 5 | G1/4 | 5,5 | 9,8 | 15,2 | 7 | 20 | 14 | 3 | 14 |
S6510 6-1/8 | 6 | G1/8 | 6 | 11,7 | 13,2 | 5,5 | 22 | 12 | 4 | 10 |
S6510 6-1/4 | 6 | G1/4 | 5,5 | 11,7 | 15,2 | 7 | 21 | 14 | 4 | 14 |
S6510 6-3/8 | 6 | G3/8 | 6,5 | 11,7 | 20,5 | 8 | 22,5 | 19 | 4 | 27 |
S6510 8-1/8 | 8 | G1/8 | 7,5 | 13,7 | 15,2 | 5,5 | 25 | 14 | 5 | 13 |
S6510 8-1/4 | 8 | G1/4 | 6,5 | 13,7 | 15,2 | 7 | 24 | 14 | 6 | 14 |
S6510 8-3/8 | 8 | G3/8 | 6 | 13,7 | 20,5 | 8 | 23,5 | 19 | 6 | 25 |
S6510 8-1/2 | 8 | G1/2 | 7,5 | 13,7 | 24,5 | 9 | 25 | 22 | 6 | 43 |
S6510 10-1/4 | 10 | G1/4 | 8,3 | 15,4 | 18,5 | 7 | 28,5 | 17 | 7 | 23 |
S6510 10-3/8 | 10 | G3/8 | 5,3 | 15,4 | 20,5 | 8 | 25,5 | 19 | 8 | 27 |
S6510 10-1/2 | 10 | G1/2 | 4,8 | 16 | 24,5 | 9 | 25 | 22 | 8 | 39 |
S6510 12-1/4 | 12 | G1/4 | 10,3 | 18,3 | 20,5 | 7 | 29,5 | 19 | 7 | 26 |
S6510 12-3/8 | 12 | G3/8 | 9,3 | 18,3 | 20,5 | 8 | 28,5 | 19 | 9 | 30 |
S6510 12-1/2 | 12 | G1/2 | 5,8 | 18,3 | 24,5 | 9 | 25 | 22 | 10 | 36 |
S6510 14-3/8 | 14 | G3/8 | 10,3 | 20,5 | 24,5 | 8 | 30,5 | 22 | 9 | 42 |
S6510 14-1/2 | 14 | G1/2 | 6,3 | 20,5 | 24,5 | 9 | 26,5 | 22 | 12 | 34 |
S6510 16-1/2 | 16 | G1/2 | 9 | 23,5 | 26,5 | 9 | 32 | 24 | - | 42 |
S6510 16-3/4 | 16 | G3/4 | 3,5 | 23,5 | 27,3 | 9 | 26,5 | 24 | - | 46 |
