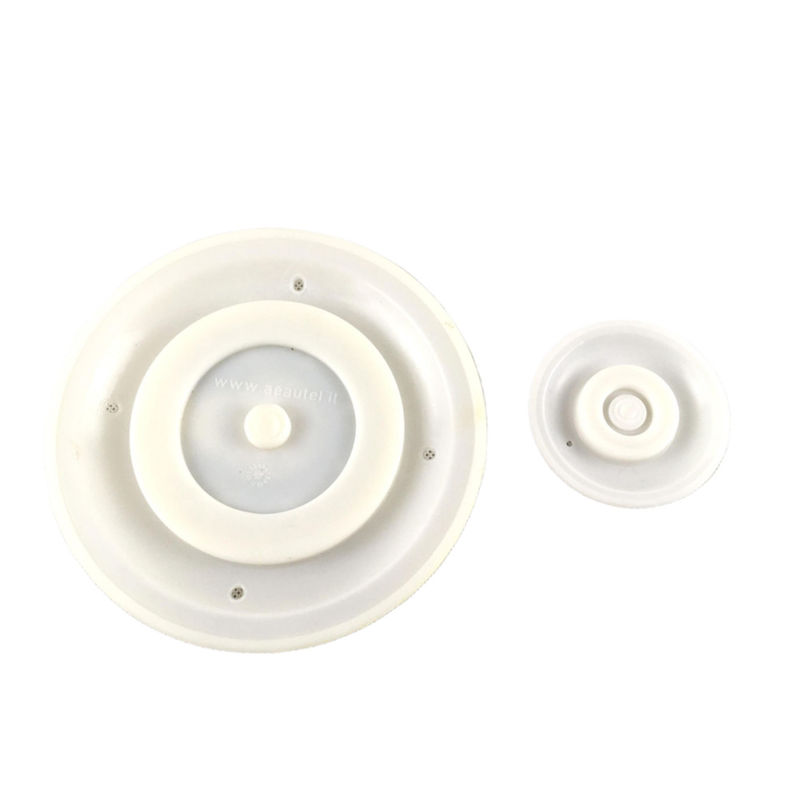

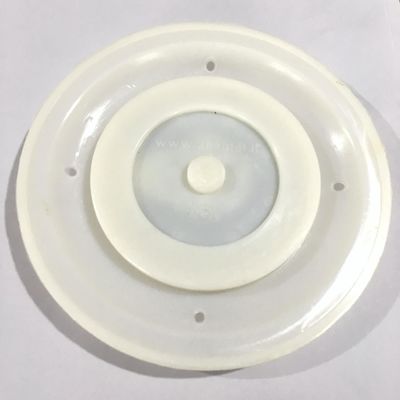

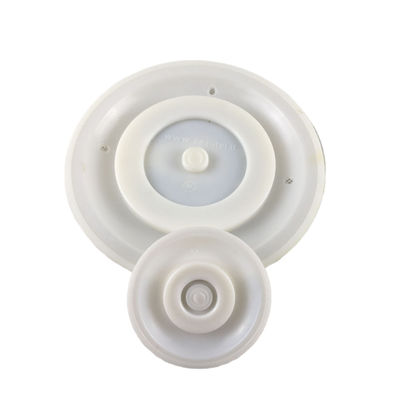

Autel TPE Diaphragm Repair Kit Pump M/D60 2.5 Inch AE1450B AE1460B

Product Description:

The pulse valve is a vital component, with the diaphragm being the most crucial part of its operation. The mechanism of the pulse valve functions as follows: when the valve is activated, the air above the pulse valve diaphragm is rapidly discharged, resulting in the swift opening of the primary diaphragm valve.

Conversely, when the pulse valve is deactivated, air is released through the bleed hole located on the primary pulse valve to equalize the diaphragm pressure, causing the valve to shut immediately.

It is essential to highlight the function of the diaphragm, as it plays a crucial role in both the activation and deactivation of the pulse valve, making it a vital element in ensuring the valve functions correctly.

In summary, the pulse valve's proper operation is dependent on the effective functioning of the diaphragm. The diaphragm allows for the swift opening and closing of the valve during activation and deactivation. Through this process, the pulse valve's performance is optimized, ensuring optimal system efficiency and functionality.

Features:

The pulse diaphragm valves are designed specifically for use in dust collector service applications. They have been engineered to combine high flow, long life, and extremely fast opening and closing times, in order to provide reliable and economical operation.

The angle type bodies used in conjuncture with special main diaphragm assemblies provide the unique operating features which are required to be effective for dust collector service applications.

The design of these pulse diaphragm valves is accompanied with integral compression fittings, which allow for an easier installation process by simply using the fittings without having to worry about threaded piping.

These valves use high quality, reinforced, and wear-resistant diaphragms, ensuring a long operating life, even in harsh conditions.

Integral pilot operated valves satisfy all relevant EC directives, ensuring they meet necessary standards and regulations.

Applications:

The Pulse Valve Diaphragm is made of Nitrile material and comes with 304 Stainless Steel screws. It has a working temperature range of -10~80℃ and a working pressure of 0.4~0.8 MPa, making it suitable for use in different environments. The Pulse Valve Diaphragm is designed to work with air as its medium, ensuring it meets customer needs.

The product is ideal for use in Shockwave Diaphragm Kit and Diaphragm repair accessories. Customers can rely on its durability and performance to repair their pulse valve diaphragm and ensure it performs optimally. The product is versatile and can be used in different applications, including dust cleaning, gas separation, and air filtration.

Support and Services:

The Pulse Valve Diaphragm product is a high-quality component that ensures the efficient operation of pulse jet valves. It is designed to withstand high pressure differentials and extreme temperatures, providing reliable and consistent performance in demanding industrial applications.

Our technical support team is available to assist with any questions regarding the installation, operation, and maintenance of the Pulse Valve Diaphragm. We also offer a range of services, including repair and replacement of damaged or worn components, to ensure the continued performance of your pulse jet valve system.

Whether you need assistance with troubleshooting, repair, or replacement, our experienced team is here to help you get the most out of your Pulse Valve Diaphragm product.

Packing and Shipping:

Product Packaging:

The Pulse Valve Diaphragm product will be packaged in a sturdy cardboard box with foam inserts to ensure safe transportation. The product will be sealed in a plastic bag to protect it from dust and moisture. The box will have clear labeling indicating the product name and quantity.

Shipping:

The product will be shipped via standard shipping methods and will be delivered within the estimated timeframe provided by the carrier. The shipping cost will be calculated based on the weight and destination of the package. The tracking information will be provided to the customer once the product has been shipped.
