YW DKE TRADING COMPANY

|
| Place of Origin: | China |
| Brand Name: | Goyen |
| Certification: | CE |
| Model Number: | M/D20 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Delivery Time: | 1-7Work Days After Payment |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 5000 pieces/1Month |
| Material: | Nitrile | Screws: | 304 Stainless Steel |
|---|---|---|---|
| Working Pressure: | 0.4~0.8 MPa | Medium: | Air |
| Working Temperature: | -10~80℃ | Color: | White |
The pulse valve comprises several components, but the diaphragm stands out as the most critical one. The diaphragm is responsible for the opening and closing mechanism of the main diaphragm valve, which initiates the cleaning cycle of the pulse valve.
As the pulse valve receives an electrical signal, the air trapped above the pulse valve diaphragm evacuates promptly, influencing the quick opening of the main diaphragm valve. The rapid opening of the valve allows the compressed air to escape through the nozzle and the blow-pipe into the filter bag, dislodging the accumulated dust.
When the pulse valve is deactivated, the diaphragm pressure balances, and the valve instantly closes. This happens primarily via the bleed hole of the main pulse valve, which allows the air to escape out of the system and close the valve.
The pulse valve comprises several components, but the diaphragm stands out as the most critical one. The diaphragm is responsible for the opening and closing mechanism of the main diaphragm valve, which initiates the cleaning cycle of the pulse valve.
As the pulse valve receives an electrical signal, the air trapped above the pulse valve diaphragm evacuates promptly, influencing the quick opening of the main diaphragm valve. The rapid opening of the valve allows the compressed air to escape through the nozzle and the blow-pipe into the filter bag, dislodging the accumulated dust.
When the pulse valve is deactivated, the diaphragm pressure balances, and the valve instantly closes. This happens primarily via the bleed hole of the main pulse valve, which allows the air to escape out of the system and close the valve.
| M/D20 |
| M/D25 |
| M/D40 |
| M/D50 |
| M/D60 |
| M/D75 |
| P10 |
| BC10 |
| SYS10 |
|
Diaphragm
Order Code
|
Diaphragm Reference No
|
Pulse Valve
Model No
|
Pulse Valve
Port Size
|
Diaphragm
Material
|
|
AE18
|
M/D20
|
AE1818B, AE2818B
AE1822B, AE2822B
|
3/4'', 1''
|
TPE (Standard)
FKM+PTFE (High Temperature)
|
|
AE25
|
M/D25
|
AE1825B, AE2825B
AE1825R, AE2825R
|
1''
|
|
|
AE40
|
M/D40
|
AE1440B, AE2440B
AE1440R, AE2440R
|
1-1/2''
|
|
|
AE50
|
M/D50
M/D60
|
AE1450B, AE2450B
AE1460B, AE2460B
|
2'', 2-1/2''
|
|
|
AE75
|
M/D75
|
AE1475I12, AE2475I12
|
3''
|
The pulse diaphragm valves are custom-designed for use in dust collector service applications. Their unique features combine high flow, long life, and ultra-fast opening and closing times to create an economical and reliable operation.
These valves are equipped with high flow and angle type bodies, along with special main diaphragm assemblies, specifically tailored for dust collector service applications. This gives them the necessary operating features to meet and exceed the requirements of such applications.
These valves are also designed with integral compression fittings, making the installation process simpler without requiring the use of threaded piping.
Additionally, the high-quality diaphragms are reinforced and wear-resistant to ensure long operating life, even under harsh conditions.
These pulse diaphragm valves' integral pilot-operated valves meet all relevant EC directives, making them versatile and easy to integrate into a variety of applications.

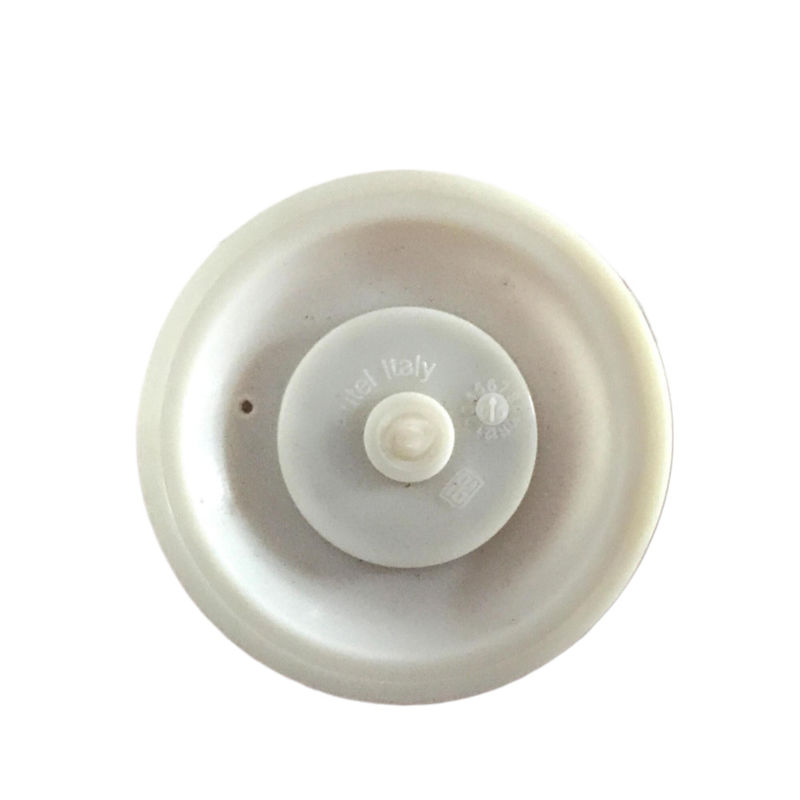

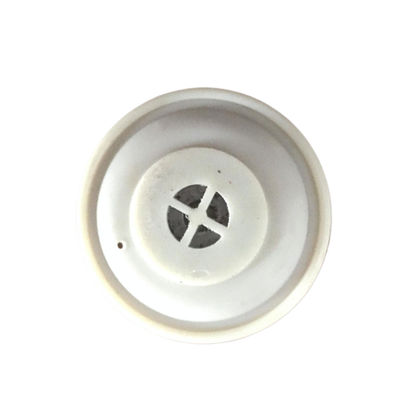

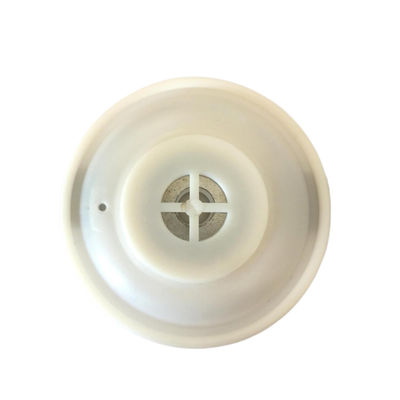

The Goyen Pulse Valve Diaphragm M/D20 is made of durable and long-lasting Nitrile material, has a working temperature of -10~80℃ and can withstand working pressure of 0.4~0.8 MPa. This makes it the perfect choice for applications that require high performance and durability standards.
Designed to work in environments where air is the medium, the Goyen Pulse Valve Diaphragm M/D20 is an ideal choice for industries such as food processing, chemical manufacturing, and pharmaceuticals.
Our product is available in white color and guarantees a supply ability of 5000 pieces per month. The minimum order quantity is 1 and the price is open to negotiation. Delivery time takes 1-7 working days after payment, and we offer flexible payment options including T/T, Western Union, and Paypal.
The Goyen Pulse Valve Diaphragm M/D20 is a versatile product that is perfect for a variety of applications. Whether you need diaphragm repair accessories or a maintenance kit, this product is sure to satisfy all your needs.
The Pulse Valve Diaphragm is a critical component of your dust collection system. Our technical support team is available to assist you with any questions regarding the installation, operation, and maintenance of our product. We also offer a range of services to help ensure the optimal performance and longevity of your diaphragm, including:
Our goal is to provide you with the highest quality product and support to help you minimize downtime and keep your operations running smoothly. Contact us today to learn more about our technical support and services for the Pulse Valve Diaphragm.
Product Packaging:
Shipping Information:
