Product Description:
Working Principle

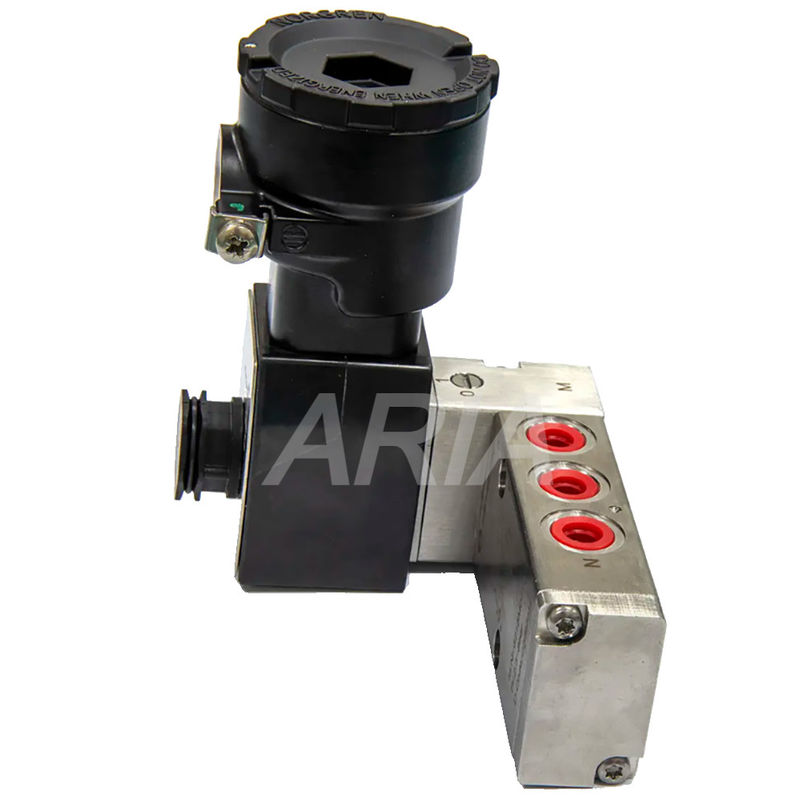

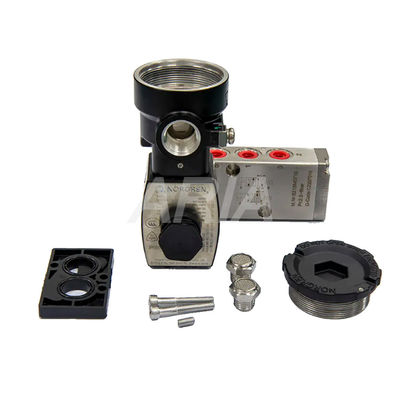

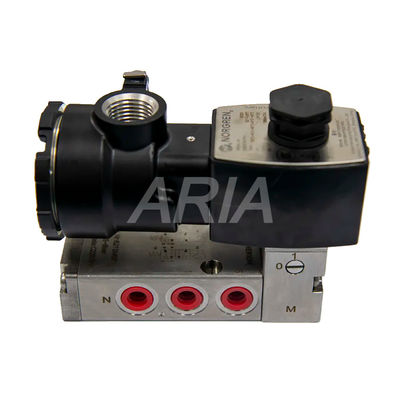

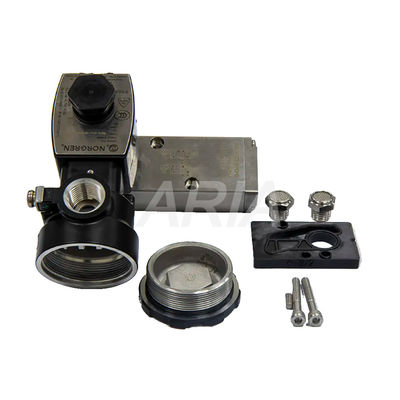

The NORGREN stainless steel pilot explosion-proof solenoid valve works by applying electromagnetic force to the pilot valve. The main valve completes the action based on the command of the pilot valve and the pressure difference of the medium. The pilot valve and the main valve are connected through a pipeline, and the action of the pilot valve controls the opening or closing of the main valve.
Structural Features
The solenoid valve consists of a pilot valve and a main valve, which are connected by a pipeline. The pilot valve acts first and relies on the pressure difference of the medium to complete the opening or closing of the main valve. The main valve has two types of structures: diaphragm type and piston type. The diaphragm structure has a lower price, but the rubber sheet is prone to aging.
Application Scenario
The NORGREN stainless steel pilot explosion-proof solenoid valve is suitable for various occasions that require explosion-proof control, especially for use in environments with explosive gases, which is safer and more reliable.
Technical Parameters
- Medium: filtered, lubricated or non lubricated compressed air
- Work pressure: 1.0-10 bar
- Fluid temperature: - 10 ° C~50 ° C, dry air should be used when the temperature is below 0 ° C. When installing outdoors, moisture should be prevented from seeping in.
- Interface size: G 1/4
- Flow rate: 1200 L/min
- Installation position: The electromagnetic coil can be placed at the top
Brand Background
NORGREN is a member of IMI plc International Engineering Group, with a sales and service network in 50 countries, dedicated to providing high-performance products and high-quality services.
Technical Parameters:
| Operation |
5/2 |
| Work pressure (bar) |
2.5 -8 Bar |
| Materials - Body |
Stainless Steel |
| Interface size |
1/4 NPT |
| Brand |
Herion |
| Medium |
Lubricated Or Non Lubricated Compressed Air That Has Been Filtered |
Applications:
This product is an indirect solenoid valve which operates with 5/2 operation. It works with a pressure range of 2.5 -8 Bar and has an interface size of 1/4 NPT. The Norgren Solenoid Valve can be used with both lubricated and non-lubricated compressed air that has been filtered.
The Norgren Solenoid Valve is suitable for a wide range of applications and scenarios. It is commonly used in the following industries:
- Automotive Manufacturing
- Pharmaceutical Manufacturing
- Food and Beverage Processing
- Chemical Processing
- Oil and Gas
- Pulp and Paper
This solenoid valve is especially useful in applications where precise control of fluids or gases is required. It can be used to control the flow of air, water, oil, and other fluids and gases. It is also commonly used in pneumatic and hydraulic systems.
The Norgren Solenoid Valve is a reliable and efficient product that can be used in a variety of applications. It is easy to install and maintain, making it a popular choice among engineers and technicians. Whether you are working in automotive manufacturing, food and beverage processing, or any other industry, the Norgren Solenoid Valve is a great choice for your application needs.
Packing and Shipping:
Product Packaging:
- Each Norgren Solenoid Valve is individually boxed.
- The box contains foam inserts to protect the valve during shipping.
- The box also includes installation instructions and a warranty card.
Shipping:
- All orders are shipped within 24 hours of purchase.
- We use reliable shipping carriers to ensure your order arrives on time and in good condition.
- You will receive a tracking number once your order has shipped.
- If you have any issues with your order, please contact us and we will do our best to resolve the issue.
