Product Description:
Working principle

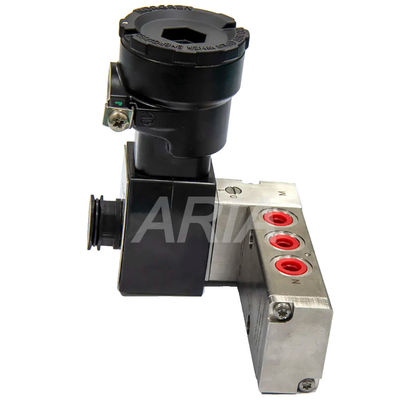

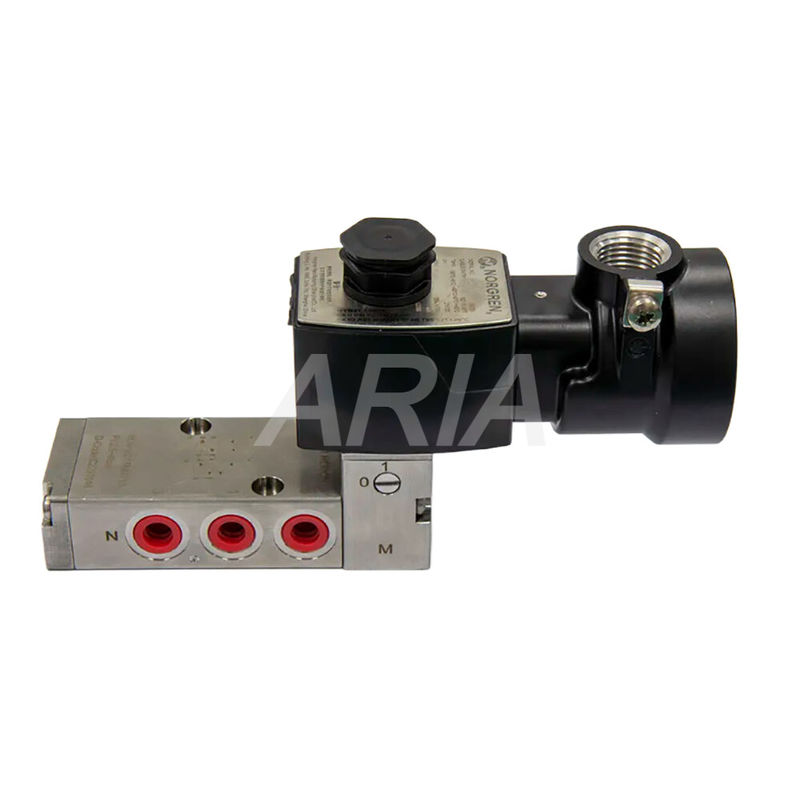

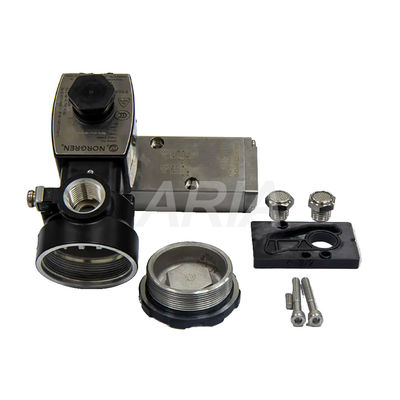

The NORGREN stainless steel pilot explosion-proof solenoid valve operates by utilizing electromagnetic force to control the pilot valve. The main valve is then activated based on the command of the pilot valve and the medium's pressure difference. The pilot valve and the main valve are connected through a pipeline, and the pilot valve's action controls the opening or closing of the main valve.
Structural features
The solenoid valve is composed of a pilot valve and a main valve, which are connected by a pipeline. The pilot valve is activated first and relies on the pressure difference of the medium to open or close the main valve. There are two types of structures for the main valve: a diaphragm type and a piston type. The diaphragm structure is less expensive but is prone to rubber sheet aging.
Application scenario
The NORGREN stainless steel pilot explosion-proof solenoid valve is suitable for various settings that require explosion-proof control. It is especially useful in environments with explosive gases since it is safer and more dependable.
Technical parameters
- Medium: filtered, lubricated or non-lubricated compressed air
- Work pressure: 1.0-10 bar
- Fluid temperature: -10°C~50°C, dry air should be used when the temperature is below 0°C.
- Interface size: G 1/4
- Flow rate: 1200 L/min
- Installation position: The electromagnetic coil can be placed at the top
Brand background
NORGREN is a member of the IMI plc International Engineering Group. With a sales and service network in 50 countries, they're dedicated to providing high-performance products and high-quality services.
Technical Parameters:
| Materials |
Body: Stainless Steel |
| Medium |
Lubricated or Non-Lubricated Compressed Air That Has Been Filtered |
| Brand |
Herion |
| Work Pressure (bar) |
2.5 - 8 Bar |
| Operation |
5/2 |
| Interface Size |
1/4 NPT |
Applications:
The Norgren solenoid valve is designed to work under a work pressure range of 2.5 - 8 Bar, making it ideal for use in a variety of different settings. The body is made of high-quality stainless steel, ensuring durability and longevity. The interface size of the valve is 1/4 NPT, making it simple to install and integrate into existing systems. The operation of the solenoid valve is 5/2, ensuring that it operates smoothly and effectively.
The Norgren solenoid valve can be used in a variety of different applications and scenarios. It's perfect for use in industrial settings, such as manufacturing plants, processing facilities, and refineries. It can also be used in commercial settings, such as restaurants, hotels, and retail stores. Additionally, the solenoid valve can be utilized in residential settings, such as in-home plumbing systems and HVAC systems.
Overall, the Norgren solenoid valve is a reliable and high-quality product that can be used in a wide range of different applications. Its stainless steel body, 1/4 NPT interface size, and 5/2 operation make it ideal for use in a variety of different settings. With a supply ability of 5000 pieces per month, this solenoid valve is readily available and can be ordered in any quantity needed.
Packing and Shipping:
Product Packaging:
- The Norgren Solenoid Valve is securely packaged in a sturdy cardboard box.
- The valve is surrounded by protective foam to prevent any damage during transportation.
- The box also includes an instruction manual and any necessary mounting hardware.
Shipping:
- The Norgren Solenoid Valve is shipped via a reliable courier service.
- The package is tracked to ensure safe and timely delivery.
- Shipping times may vary depending on the destination, but usually take between 2-7 days.
