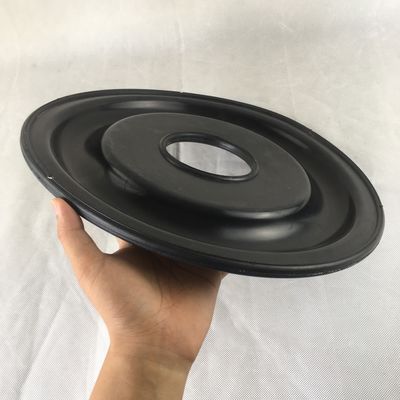

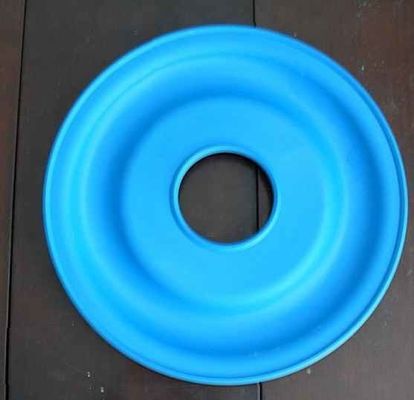

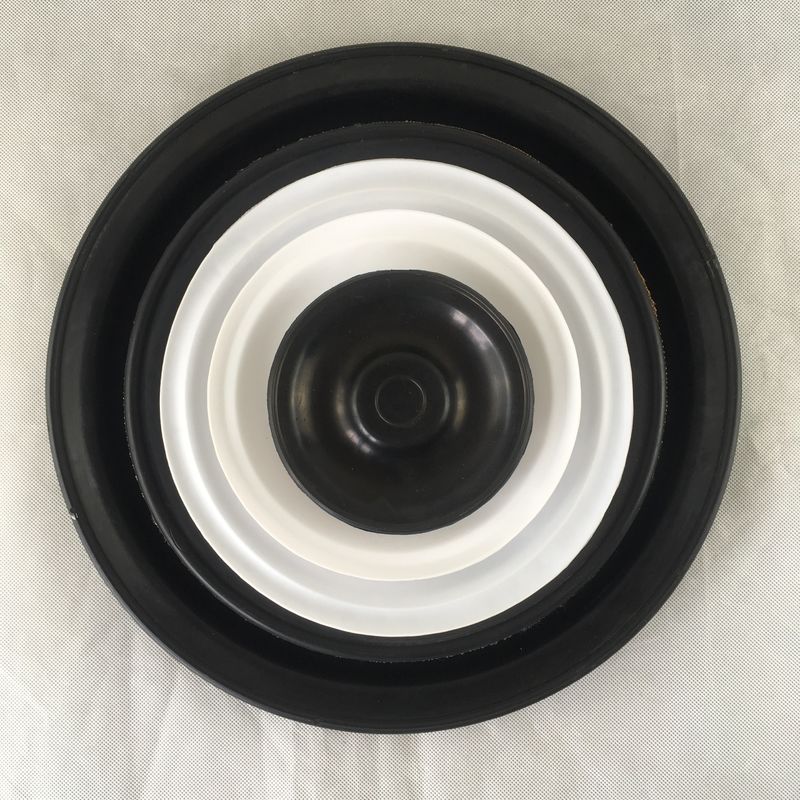

Graco Diaphragm Pump Accessories Husky 3300 Pump Polymer Diaphragm

1. Ultra long diaphragm life: GRACO pneumatic diaphragm pumps have excellent diaphragm performance, with a service life that is 1/3-1/2 longer than similar products from other manufacturers. Some models of diaphragms even have a service life of over 30 million times, greatly reducing equipment maintenance frequency and lowering usage costs.

2. Strong self-priming ability: With excellent self-priming performance, the large suction range can reach 7M, without the need for additional water injection and diversion operations. It can start quickly and quickly suck liquid into the pump chamber for delivery, especially suitable for work scenarios that require frequent start stop, effectively improving work efficiency.

3. Reliable corrosion resistance: Multiple material options are available for parts in contact with liquids, including 316L stainless steel, aluminum alloy, polypropylene, conductive polypropylene, and polyvinylidene fluoride. The surface of the metal aluminum alloy material is treated with anodizing, and the pressure chamber is coated with epoxy coating after anodizing. The central shaft is made of stainless steel material, which makes the pump body highly corrosion-resistant and capable of stable operation in harsh environments.

4. Lubrication free air pressure chamber: Adopting an oil-free air pressure chamber design, it can be lubricated free when using CDA driven gas. The air pressure chamber has fewer parts, a simple structure, and low dependence on seals. No lubrication additives need to be added, reducing maintenance work and avoiding possible failures caused by lubrication problems.

5. Stable operating performance: It can operate stably in low and high pressure environments, as well as in slow and fast operating states, without any jamming. Using patented air valves with high wear resistance and a unique three-way pilot valve reversing design, the pump ensures extremely high reliability in various application scenarios, achieving zero failure rate and ensuring production continuity.

6. Convenient maintenance: All components can be replaced without opening the liquid chamber, the parts are easy to assemble, and the whole machine is easy to repair. The air chamber is located above, making it difficult for liquids to enter and enabling online maintenance, greatly reducing equipment downtime and improving equipment efficiency.

Technical Parameters:

GRACO pneumatic diaphragm pumps are available in various specifications and models, offering a range of diameters from 1/4" to 3" to cater to different flow requirements.

The pumps have a flow range between 1.1m³/h and 62m³/h, along with a maximum working pressure of 120PSI (8.4BAR). Their operating pressure typically falls within the range of 0.14-0.84Mpa, ensuring adaptability to diverse working conditions.

Users have the flexibility to choose from a variety of membrane materials such as Teflon, Santoprene/Neoplast, and Buan N. This allows for customized combinations based on the specific characteristics of the conveyed medium.

Applications:

Application Fields and Applicable Media
GRACO pneumatic diaphragm pumps are suitable for various industrial fields, including:

• Chemical industry: used for treating corrosive liquids such as acids, bases, solvents, suspended solids, and dispersed systems
• Petrochemical industry: suitable for crude oil, heavy oil, immature oil, mud, sludge, etc
• Coatings industry: used for resins, solvents, colorants, paints, etc
• Daily chemical industry: processing detergent, shampoo, lotion, etc
• Environmental protection, wastewater treatment, construction, sewage, fine chemicals: suitable for various special occasions, pumping media that cannot be pumped by conventional pumps

Material and Corrosion Resistance
GRACO pneumatic diaphragm pumps come in a variety of material options, including engineering plastics, aluminum alloys, cast iron, and stainless steel. According to different liquid media, the pump body adopts different sealing materials, such as rubber, chloroprene rubber, fluororubber, polytetrafluoroethylene, etc., to meet the needs of different users. These materials enable the pump to operate stably for a long time in various corrosive environments.
