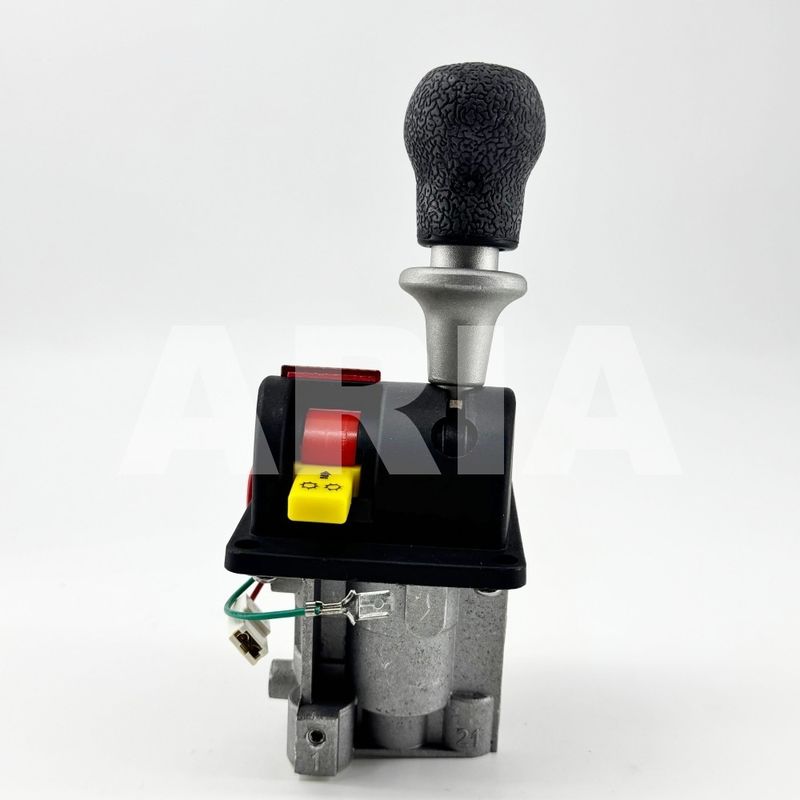

JQF34-A 14750667H HYVA 2way Dump Truck Controls Valves

Product Description:

Function Attribute:
It is a control component in the hydraulic system for lifting, stopping, and lowering the dump truck carriage. When combined with related components, it can control the lifting, stopping, and lowering actions of the carriage, with stopping being the unloading M-type function. In conjunction with PT-1220-220 (Haiwo PT proportional pneumatic directional valve 14767319), it can achieve functions such as arbitrary adjustment of carriage descent speed.

Structural Attribute:
It belongs to the three hole valve structure and controls the flow of hydraulic oil through pneumatic control, thereby controlling the relevant actions of the dump truck.

Material Properties:
The product is made by nickel treatment and has the characteristics of acid, alkali, and aging resistance. It can adapt to complex working environments and extend its service life.

Technical Attribute:
As a proportional valve, it can control the flow rate and pressure of oil in the hydraulic system proportionally based on the size of the input signal, thereby accurately controlling the lifting height and lowering speed of the dump truck compartment, with high control accuracy.

Technical Parameters:

Applications:

When it comes to the application occasions and scenarios for the HYVA Hydraulic Control Valve product, there is a wide range of possibilities due to its versatile nature and high-quality performance.

The HYVA Hydraulic Control Valve, also known as the Bidirectional Throttle Valve, is a CE-certified product that caters to various industries and sectors. With a minimum order quantity of just 1 unit and a negotiable price, this product is suitable for both small-scale and large-scale operations.

The packaging details for the HYVA Hydraulic Control Valve can be customized to meet the specific requirements of clients, whether it is carton packaging or any other preferred method. With a quick delivery time of 1-7 work days after payment, customers can rely on prompt service to meet their project deadlines.

Accepted payment methods for the HYVA Hydraulic Control Valve include T/T, Western Union, and Paypal, offering flexibility and convenience to customers worldwide. With a supply ability of 5000 pieces per month, customers can rest assured that their demand for this high-quality product can be met consistently.

The model number for this Hydraulic Valve is BKQF34-A, with a minimum pressure rating of 5 Bar and a maximum pressure rating of 12 Bar. Powered by hydraulic force, this valve is designed to handle medium pressure applications effectively.

In summary, the HYVA Hydraulic Control Valve is a reliable and efficient product suitable for a wide range of applications and scenarios. Whether it's in the industrial, agricultural, or construction sector, this Bidirectional Throttle Valve offers superior performance and durability.

Packing and Shipping:

Product Packaging:

The Hydraulic Control Valve is carefully packaged in a sturdy cardboard box to ensure it arrives safely at your doorstep. The valve is securely placed in the box with ample cushioning material to prevent any damage during transit.

Shipping:

Once your order is confirmed, the Hydraulic Control Valve will be shipped out within 1-2 business days. We partner with reliable shipping carriers to deliver your product swiftly and efficiently. You will receive a tracking number to monitor the status of your shipment.
