86--18986934683
YW DKE TRADING COMPANY
Place of Origin: | China |
Brand Name: | ASCO |
Certification: | CE |
Model Number: | C113826 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiation |
Packaging Details: | Carton |
Delivery Time: | 1-7Work Days After Payment |
Payment Terms: | T/T, Western Union,Paypal |
Supply Ability: | 5000 pieces/1Month |
Medium: | Air | Working Pressure: | 0.4~0.8 MPa |
---|---|---|---|
Color: | Black | Working Temperature: | -10~70℃ Or 180℃ |
Material: | Nitrile/Buna Or Viton | Screws: | 304 Stainless Steel |
Rubber Types: Nitrile rubber (NBR), fluorocarbon rubber (FKM), ethylene propylene diene monomer (EPDM), etc., offering oil resistance, corrosion resistance, and high-temperature tolerance.
Polyurethane (PU): High wear resistance, suitable for high-frequency operation.
PTFE (Polytetrafluoroethylene): Chemically inert, resistant to strong acids and alkalis, ideal for extreme corrosive environments.
Choose based on the medium (e.g., air, water, oil, chemical gases), temperature range (-40°C to 200°C), and pressure conditions.
Elasticity & Flexibility: Ensures fast response and sealing, minimizing hysteresis.
Fatigue Resistance: Withstands millions of cycles in high-frequency switching.
Wear Resistance: Reduces friction-induced wear, extending lifespan.
Tear Resistance: Prevents damage during installation or high-pressure shocks.
Single/Multi-Layer Construction: Multi-layer composite diaphragms (e.g., rubber + fiber reinforcement) enhance pressure resistance.
Shape Compatibility: Matches valve body structure for proper sealing (e.g., flat or corrugated designs).
Thickness: Typically 0.2–1 mm, affecting flexibility and durability.
Temperature Range: Varies by material; standard range is -30°C to 150°C, while specialty materials (e.g., FKM) can withstand up to 200°C.
Pressure Range: Generally 0.1–1 MPa; high-pressure models require reinforced designs.
Media Compatibility: Resistant to compressed air, steam, oil mist, or chemicals (e.g., ASCO 327 series diaphragms suit multiple fluids).
Service Life: High-quality diaphragms last 1–5 million cycles under standard conditions.
Failure Modes: Common issues include cracking, deformation, or seal failure due to aging, overpressure, or chemical corrosion.
Typical Uses: Dust removal systems (e.g., bag filters), pneumatic control systems, industrial automation.
Model Examples: ASCO 210 (general-purpose), ASCO 327 (high-pressure/corrosion-resistant). Note: Diaphragms may not be interchangeable across models.
Replacement Interval: Regular inspections (e.g., annually or per million cycles); replace if hardening or cracks appear.
Installation Notes: Avoid twisting or overstretching; ensure sealing surfaces are clean.
Overall Dimension of SCG353A047 SCG353A065 Diaphragm Valve Repair Kit:

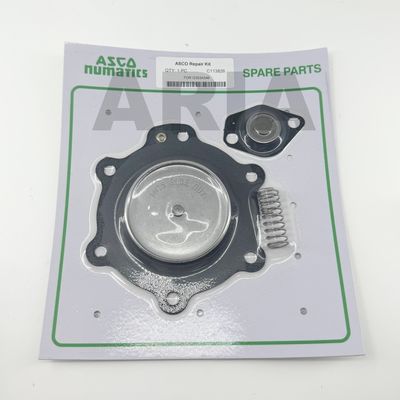

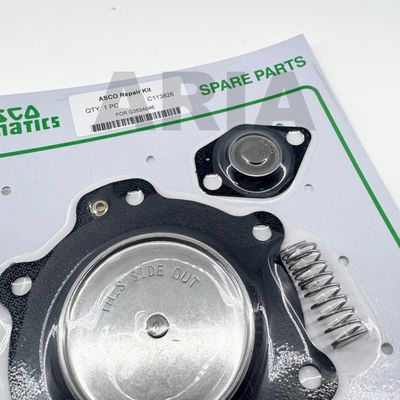

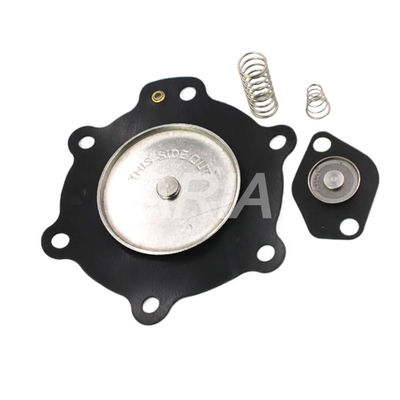

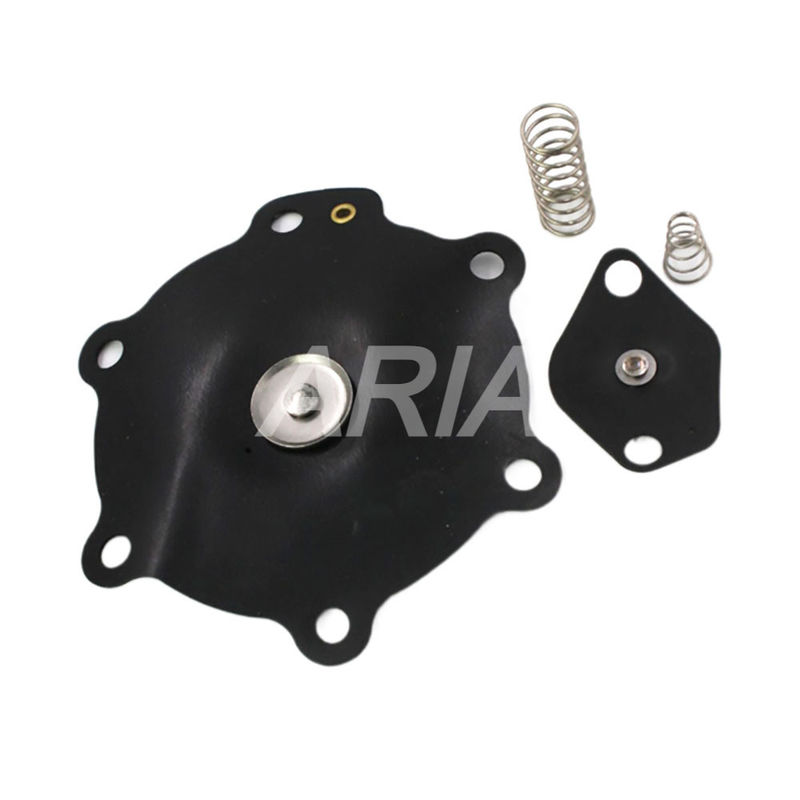

Details of C113825 C113826 C113827 ASCO Type Diaphragm Repair Kit:
Available Models of ASCO Type Diaphragm Valve Repair Kits:
Ordering Code
|
Fitted Valve Code
|
Valve Port Size
|
Material
|
C113443
|
G353A041, G353A042
|
3/4'', 1''
|
TPE/NBR
|
C113444
|
SCG353A043, SCG353A044, SCG353-052, SCG353-053
|
3/4'', 1''
|
|
C113825
|
G353A045
|
1-1/2''
|
NBR
|
C113826
|
G353A046
|
1-1/2''
|
|
C113827
|
SCG353A047, SCG353A065
|
1-1/2''
|
|
C113685
|
SCG353A050, SCG353A051
|
2'', 2-1/2''
|
|
C113686
|
|||
C113928
|
SCEX353.060
|
3''
|
|
C123432
|
SCG353D060, G353.060
|
||
C123433
|
|||
K096875 (K238864)
|
8353C033
|
3/4''
|
|
K200262 (K238866)
|
G353A041, G353A042, SCG353A043, SCG353A044, SCG353-052, SCG353-053
|
1''
|
|
K276886 (K238870)
|
G353A045, G353A046, SCG353A047, SCG353A065
|
1-1/2''
|
|
K276886B
|
|||
K276887
|
Viton
|
||
Tips: EPDM, Viton All Available.
|
ASCO Pulse Valve Diaphragm is a high-quality product suitable for various application occasions and scenarios. This diaphragm repair kit is designed to meet the maintenance needs of ASCO Pulse Valves, providing reliable performance and durability. With its origin in China, this product is manufactured with attention to detail and carries the CE certification, ensuring its compliance with quality standards.
The ASCO Pulse Valve Diaphragm is ideal for use in industries where pulse valves are a crucial component in the operation of dust collector systems. Whether in manufacturing facilities, power plants, or chemical processing plants, this maintenance kit is essential for ensuring the smooth functioning of pulse valves. The minimum order quantity of 1 makes it convenient for small-scale operations or replacement needs.
The negotiation pricing of the ASCO Pulse Valve Diaphragm allows for flexibility in procurement, while the packaging details in carton ensure safe delivery. With a delivery time of 1-7 workdays after payment, this product offers quick turnaround, minimizing downtime. Accepted payment terms include T/T, Western Union, and Paypal, catering to various customer preferences.
With a supply ability of 5000 pieces per month, customers can rely on a consistent availability of the ASCO Pulse Valve Diaphragm. The black color and 304 stainless steel screws enhance the product's aesthetics and durability. The working temperature range of -10~70℃ or 180℃, along with the material options of Nitrile/Buna or Viton, make this diaphragm suitable for diverse environmental conditions.
The working pressure of 0.4~0.8 MPa ensures optimal performance in different industrial settings. Whether for routine maintenance or unexpected repairs, the ASCO Pulse Valve Diaphragm is a reliable choice for ensuring the efficient operation of pulse valves. Invest in this high-quality product to maintain the performance and longevity of your pulse valve systems.
Product Name: Pulse Valve Diaphragm
Description: High-quality replacement diaphragm for pulse valves, made from durable and long-lasting materials.
Packaging: The pulse valve diaphragm is carefully packaged in a protective plastic bag to prevent any damage during transit.
Shipping: We offer fast and reliable shipping options to ensure that your order arrives promptly and in perfect condition.
Contact Person: Aria
Tel: +8617371234005
