Product Description:

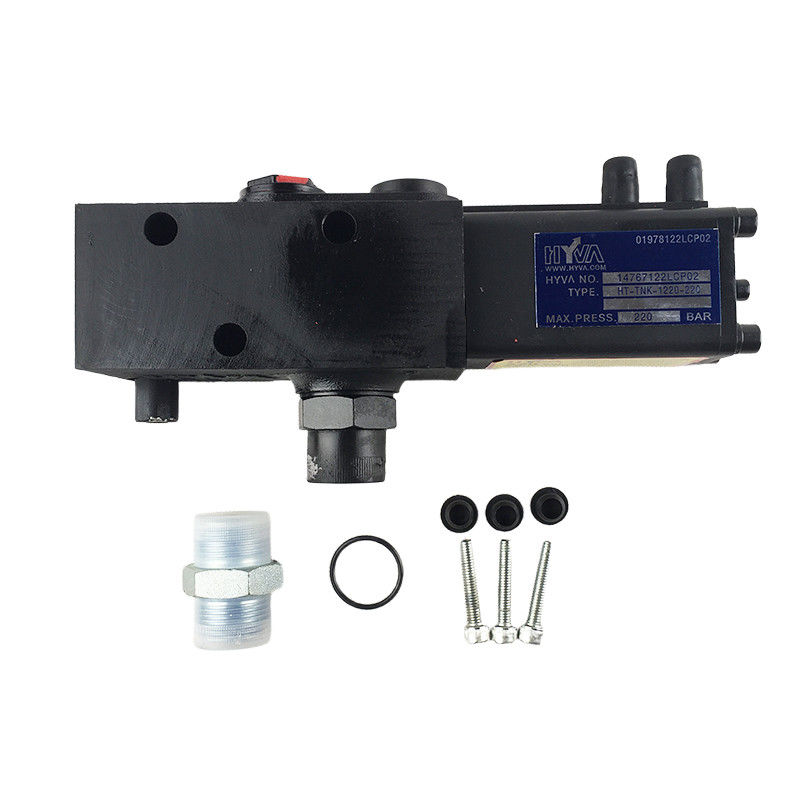

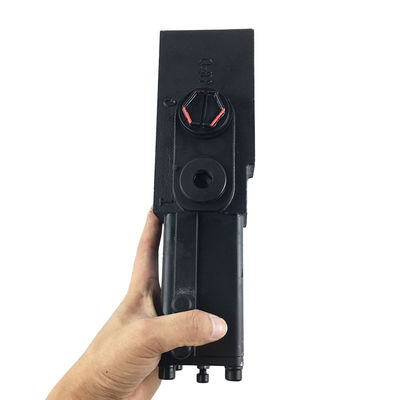

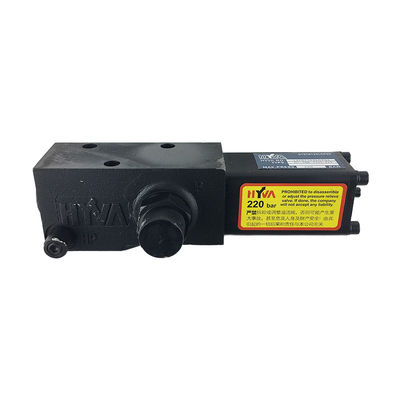

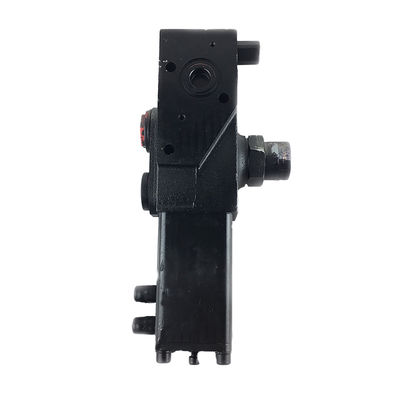

The Hyva PT 1220 & PT 2220 tipping valves are constructed with a pilot operated pressure relief valve with fixed pressure setting. Available in both the DYNACO PT 1220 & PT 2220 valves which replace Hyva valves.
Single Pressure Dump Truck controls PT 1220 Valve / Tipping valves
The DYNACO PT 1220 & 2220 tipping valves are constructed with a pilot operated pressure relief valve with fixed pressure setting (by means of cartridges), which protects both the cylinder and the pump for overpressure. This tipping valve is also designed to allow proportional lowering, which is of main importance when lowering (half) loaded bodies.
This tipping valve can be directly fitted to the Hyva oil tank, which reduces the number of hoses and fittings and consequently the possibility of leakages.
The Dynaco PT-valves & DHM valves can be mounted in line or directly on the oil tank. The PT-valve and the DHM-valve can be mounted on the same block. The PT-valves are controlled with air control or manually. The DHM-valves are controlled by a cable control or by air control.
Specification
1) Power: Hydraulic
2) Material: Aluminum
3) Automatically locked in stop and fall position
4) Working medium:Hydraulic oil
5) Operating pressure(Bar): 150Bar to 220Bar
6) Working temperature: -40ºC-/+80ºC
7) Color: Black or Red
8) Weight: 6.5kg
Technical Parameters:
| Part no. |
Description |
Max. press.
(Bar) |
Ports |
Flow
(L/min) |
Weight
(kg) |
Kit no. |
| 147 67 315 |
Valve PT - 1220 - 150 |
150 |
G1" |
220 |
6.4 |
EC150
ED150 |
| 147 67 317 |
Valve PT - 1220 - 170 |
170 |
G1" |
220 |
6.4 |
EC170
ED170 |
| 147 67 319 |
Valve PT - 1220 - 190 |
190 |
G1" |
220 |
6.4 |
EC190
ED190 |
| 148 67 322 |
Valve PT - 1220 - 220 |
220 |
G1" |
220 |
6.4 |
EC220
ED220 |
| 148 67 325 |
Valve PT - 1220 - 250 |
250 |
G1" |
220 |
6.4 |
EC250
ED250 |
| 148 67 328 |
Valve PT - 1220 - 280 |
280 |
G1" |
220 |
6.4 |
EC280
ED280 |
| 149 67 335 |
Valve PT - 1220 - 350 |
350 |
G1" |
220 |
6.4 |
EC350
ED350 |
Applications:
Product Application Occasions and Scenarios for the Hydraulic Control Valve:
The HYVA Hydraulic Control Valve is a versatile product that can be used in various applications and scenarios due to its reliable performance and durable construction.
1. Agriculture: The HYVA Hydraulic Control Valve is suitable for agricultural machinery such as tractors, harvesters, and irrigation systems. It can be used for pressure control in hydraulic systems, ensuring smooth and efficient operation.
2. Construction: In the construction industry, the HYVA Hydraulic Control Valve can be utilized in equipment such as cranes, excavators, and concrete pumps. Its ability to handle medium pressure makes it ideal for controlling hydraulic systems in heavy machinery.
3. Manufacturing: Manufacturers can benefit from the HYVA Hydraulic Control Valve in production lines that require precise pressure control. The valve's IP65/67 protection level ensures reliable performance even in harsh industrial environments.
4. Automotive: The HYVA Hydraulic Control Valve can be integrated into automotive hydraulic systems for applications like brake systems, suspension systems, and power steering. Its temperature range of -50°C~+85°C makes it suitable for use in various weather conditions.
5. Marine: The HYVA Hydraulic Control Valve is also suitable for marine applications such as ship steering systems, winches, and hatch covers. Its hydraulic power capabilities ensure smooth operation even under high-pressure conditions.
Overall, the HYVA Hydraulic Control Valve is a reliable and versatile product that can be used in a wide range of industries and applications. With its CE certification, customers can trust in its quality and performance. The minimum order quantity of 1 allows for flexibility in purchasing, and the negotiation pricing ensures competitive deals. The packaging details can be customized as per client requirements, and the quick delivery time of 1-7 work days ensures timely fulfillment of orders. Payment options such as T/T, Western Union, and Paypal provide convenience, while the supply ability of 5000 pieces per month guarantees a steady availability of the product.
