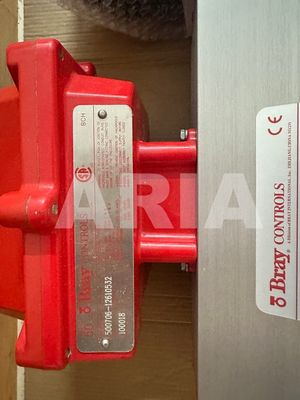

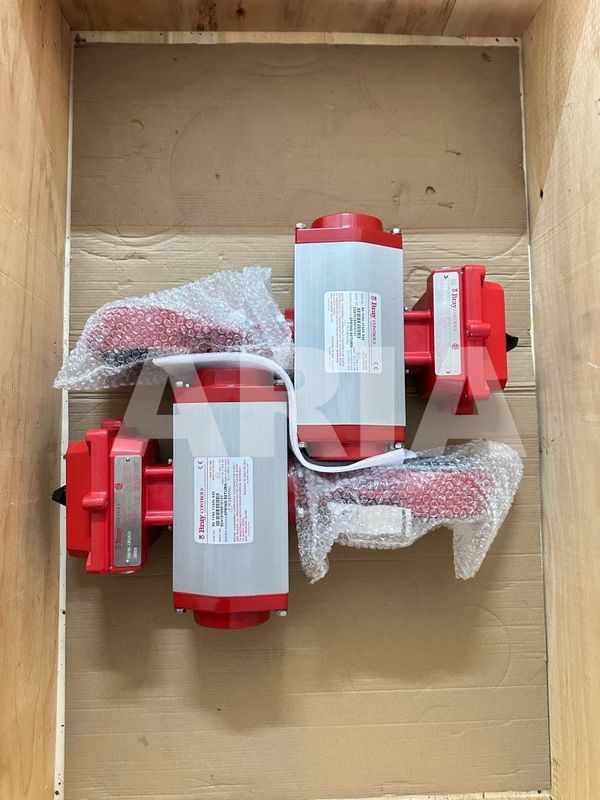

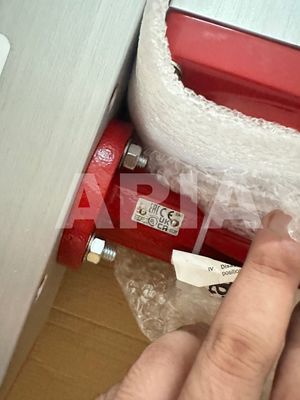

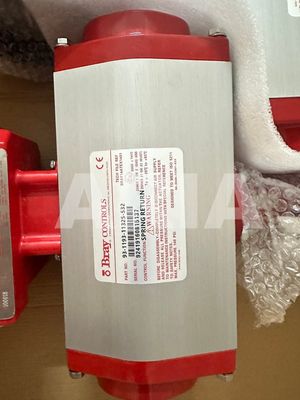

DN100➕93-1193➕S50 93-1193-11325-532 Butterfly valve / DN100 / PN10/16 Pneumatic Actuator

DN100➕93-1193➕S50 93-1193-11325-532 Butterfly valve / DN100 / PN10/16 Pneumatic Actuator

DN100➕93-1193➕S50 93-1193-11325-532 Butterfly valve / DN100 / PN10/16 Pneumatic Actuator

Product Details:

Brand Name:	Bray
Model Number:	DN100➕93-1193➕S50

Payment & Shipping Terms:

Minimum Order Quantity:	1
Payment Terms:	T/T,L/C,Western Union

Contact Now

Detailed Product Description

The Bray Serie 30 Wafer style resilient seated butterfly valve features a one-piece body with a high-strength through-stem design utilizing an internal disc-to-stem connection.

The Serie 30 is engineered to provide bidirectional bubble-tight shutoff and isolation of the line media from the stem or valve body.

Available with a wide selection of high-quality resilient seat&disc materials for various applications, the Serie 30 butterfly valves are easily automated for on-off or modulating service.

Built-in length: 50.8 mm
Width: 154 mm
Height: 297 mm
Weight: 5 kg
Number of steps: 8
Nominal inner diameter (NPS/DN): NPS 4" (DN100)

Butterfly valve seat class: Class B (General service)
Connection type: Wafer type
Valve operation: Bare stem

Temperature range: -29 to 121 ℃
Safety norm: EN ISO 20471
Pressure class: ANSI Class 150
Valve design: Centric
Pressure rating flange: PN10, PN16

Shutoff rating: Bi-directional Air Bubble Tight
Housing seat: Interchangeable

Seat material: EPDM
Spindle material: Stainless steel 416
Housing material: Cast Iron (GG25) polyester coated
Surface protection: Polyester coated
Disk material: Ductile iron (GGG40) + nylon-11 coated

Testing standard: MSS SP-61, API 598, EN 12266-1
Design standard: MSS SP-67, API 609, Category A
Norm type: (EN) DIN

Type of disc

Normal

Maximum allowable operating pressure

12 Bar

DN100➕93-1193➕S50 93-1193-11325-532 Butterfly valve / DN100 / PN10/16 Pneumatic Actuator 0

DN100➕93-1193➕S50 93-1193-11325-532 Butterfly valve / DN100 / PN10/16 Pneumatic Actuator 1

DN100➕93-1193➕S50 93-1193-11325-532 Butterfly valve / DN100 / PN10/16 Pneumatic Actuator 2
