M25 1'' TURBO Type Diaphragm Repair Kit For Turbo FP25 FM25

Product Description:

Sealing and Opening
The diaphragm realizes the rapid closing (sealing) and opening (releasing compressed air) of the valve port through elastic deformation:
Closed state: It tightly adheres to the valve seat relying on its own elasticity and air pressure difference to ensure no air leakage and maintain system pressure.
Open state: It deforms instantly after receiving a control signal, opens the valve port, and allows compressed air to form a pulse jet.

Energy Transfer
The instant action of the diaphragm directly determines the intensity and speed of the blowing airflow, and its response speed (millisecond level) affects the ash cleaning effect and compressed air utilization rate.

Thickness and Size
The thickness is usually 1-3mm (adjusted according to the pressure level), and the size must accurately match the pulse valve body (such as diameters of 50mm, 65mm, etc.). Excessive deviation will lead to sealing failure or movement jamming.

Temperature Resistance Range
Conventional nitrile rubber (NBR): -20℃~80℃, suitable for normal temperature and dry working conditions.
Fluororubber (FKM): -20℃~200℃ (some models can reach 260℃), suitable for high-temperature and corrosive environments (such as chemical industry, waste incineration).
Silicone rubber (VMQ): -60℃~200℃, with excellent low-temperature resistance, suitable for cold regions.

Pressure Resistance Performance
It needs to withstand a working pressure of 0.4-0.7MPa (special models are adapted to higher pressures). There should be no permanent deformation under long-term pressure to ensure sealing reliability.

Service Life
Under normal working conditions, high-quality diaphragms have a fatigue life of more than 1 million times (number of blows). Frequent movement or harsh environments (such as dust wear, chemical corrosion) will shorten their service life.

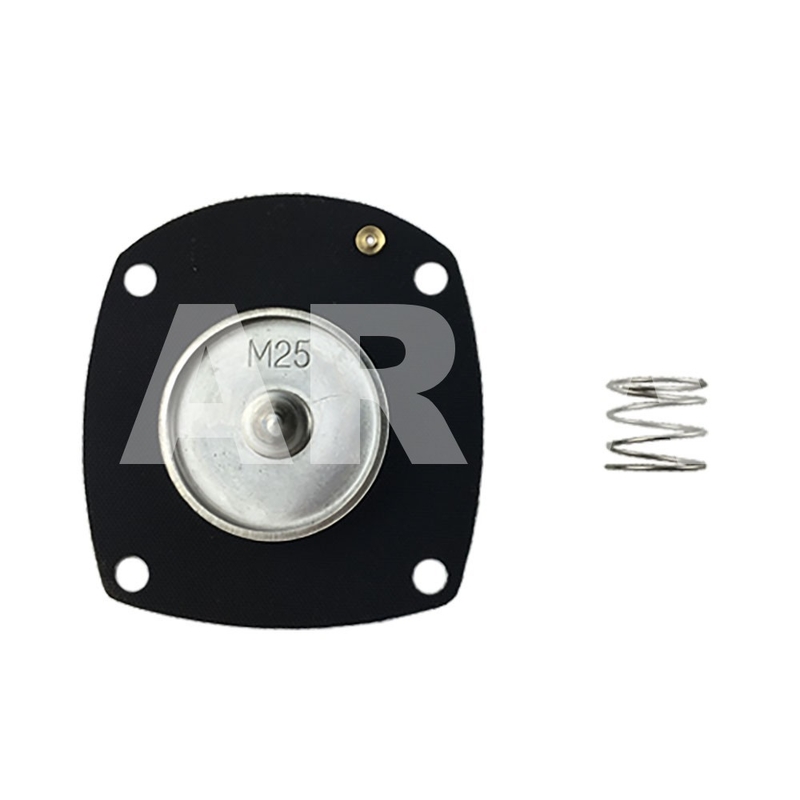

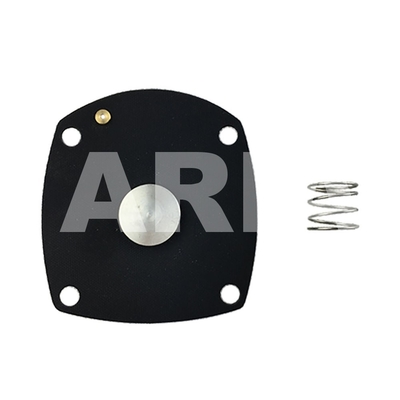

M25 Diaphragm Repair Kit For Turbo FP25 FM25

M25 & M25V Diaphragm Repair Kit is suitablr to the 3/4'' & 1'' FP20, FM20, FP25, FM25, DP20, DM20, DP25, DM25, EP20, EM20, EP25, EM25, SQP20, SQM20, SQP25, SQM25, FDP20, FDM20, FDP25, FDM25 Turbo Valves. There are two kinds of materials for this diaphragm, one is Nitrile and the other is Viton, Nitrile is generally used, Viton is resistant to high temperature and the price is slightly higher.

The M25 Kit is the Nitrile Kit, for use with standard temperature applications
The M25V Kit is the Viton Kit, for use with high temperature applications

1. Fluids: Non-lubricated filtered air.
2. Operating temperature: Nitrile diaphragm (-20°C; +80°C), Viton diaphragm (-20°C; +200°C)
3. Operating pressure: Between 0.5 and 7.5 bar

Overall Dimension of M25 3/4'' & 1'' Pulse Valve Diaphragm Repair Kit:

Product Details of Membrane for 3/4'' & 1'' Pulse Valve Diaphragm Repair Kit:

Available Models of Diaphragm Repair Kit For Turbo Pulse Valves:

Applications:

TURBO Pulse Valve Diaphragm is a high-quality product designed for various industrial applications. With CE certification, this diaphragm ensures reliability and performance, making it a top choice for professionals in the field.

The diaphragm is versatile and can be used in a wide range of scenarios. It is commonly employed in systems that require precise control over air flow, such as dust collection systems, pneumatic conveying systems, and more. The TURBO Pulse Valve Diaphragm is an essential component in maintaining the efficiency and effectiveness of these systems.

One of the key applications of the TURBO Pulse Valve Diaphragm is in the repair and maintenance of ASCO Pulse Valves. The Shockwave Diaphragm Kit includes all the necessary diaphragm repair accessories to ensure seamless operation and longevity of the valves. With a minimum order quantity of 1, customers can easily procure this kit for their repair needs.

The diaphragm is made of high-quality NBR material, which offers excellent performance in a wide temperature range from -20 ℃ to 80 ℃. This makes it ideal for room temperature drying conditions, providing durability and longevity in various environments.

Additionally, the TURBO Pulse Valve Diaphragm is suitable for working pressure ranges from 0.4 to 0.7MPa, ensuring compatibility with a wide range of systems. The diaphragm's compatibility with different pressure ranges makes it a versatile and reliable choice for industrial applications.

With a supply ability of 5000 pieces per month, customers can rely on the TURBO Pulse Valve Diaphragm to meet their demand consistently. The product is packaged in cartons for convenient storage and transportation, with delivery times ranging from 1 to 7 work days after payment.

For pricing, negotiation is available, and payment terms include T/T, Western Union, and Paypal. This flexibility in payment options makes it convenient for customers to purchase the TURBO Pulse Valve Diaphragm for their specific needs.
