Turbo 1 1/2'' Diaphragm Valve Repair Kit M40 1.5'' FP40 Pulse Jet Valve Membrane

Product Description:

Sealing and Opening

The diaphragm realizes the rapid closing (sealing) and opening (releasing compressed air) of the valve port through elastic deformation:

Closed state: It tightly adheres to the valve seat relying on its own elasticity and air pressure difference to ensure no air leakage and maintain system pressure.

Open state: It deforms instantly after receiving a control signal, opens the valve port, and allows compressed air to form a pulse jet.

Energy Transfer

The instant action of the diaphragm directly determines the intensity and speed of the blowing airflow, and its response speed (millisecond level) affects the ash cleaning effect and compressed air utilization rate.

Thickness and Size

The thickness is usually 1-3mm (adjusted according to the pressure level), and the size must accurately match the pulse valve body (such as diameters of 50mm, 65mm, etc.). Excessive deviation will lead to sealing failure or movement jamming.

Temperature Resistance Range

Conventional nitrile rubber (NBR): -20℃~80℃, suitable for normal temperature and dry working conditions.

Fluororubber (FKM): -20℃~200℃ (some models can reach 260℃), suitable for high-temperature and corrosive environments (such as chemical industry, waste incineration).

Silicone rubber (VMQ): -60℃~200℃, with excellent low-temperature resistance, suitable for cold regions.

Pressure Resistance Performance

It needs to withstand a working pressure of 0.4-0.7MPa (special models are adapted to higher pressures). There should be no permanent deformation under long-term pressure to ensure sealing reliability.

Service Life

Under normal working conditions, high-quality diaphragms have a fatigue life of more than 1 million times (number of blows). Frequent movement or harsh environments (such as dust wear, chemical corrosion) will shorten their service life.

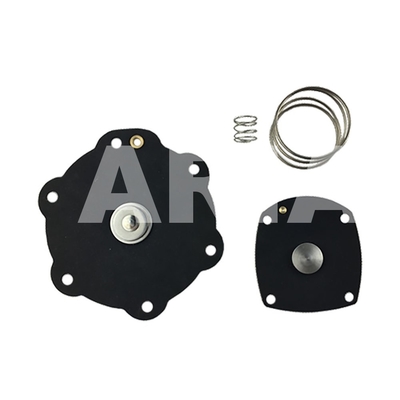

M40 M25 Turbo Pulse Valve Diaphragm Repair Kit

This is M40 diaphragm repair kit for Turbo 1 1/2'' inch FP40, FM40, DP40, DM40, EP40, EM40 pulse jet valves. It is maded of NBR, which is a kind of synthetic rubber, copolymer formed by polymerization of acrylonitrile and butadiene monomer, and has the advantages of good oil resistance (especially alkane oil), high abrasion resistance, good air tightness, good heat resistance, strong adhesion, good aging resistance and so on.

Overall Dimension of M40+M25 1 1/2'' Turbo Diaphragm Repair Kit:

Product Details of M40 Diaphragm Repair Kit For 1.5'' Turbo Valve:

Available Models of Diaphragm Repair Kit For Turbo Pulse Valves:

Applications:

TURBO Pulse Valve Diaphragm is a high-quality product suitable for various industrial applications. The diaphragm is made of Conventional nitrile rubber (NBR), which makes it suitable for room temperature drying conditions ranging from -20 ℃ to 80 ℃. This makes it ideal for use in a wide range of environments.

One of the key features of the TURBO Pulse Valve Diaphragm is its durability and long-lasting performance. The NBR material ensures that the diaphragm can withstand tough operating conditions and provide reliable service over an extended period of time.

These diaphragms are essential components in pulse valves, and they play a crucial role in controlling the flow of air and ensuring the proper functioning of the valve. The TURBO Pulse Valve Diaphragm is designed to provide efficient and consistent performance, making it a reliable choice for industrial applications.

The TURBO Pulse Valve Diaphragm is available in black color and is compatible with a wide range of pulse valves. It is easy to install and maintain, making it a cost-effective solution for diaphragm repair. In addition to individual diaphragms, TURBO also offers Diaphragm repair kits and Shockwave Diaphragm Kits for convenient repairs and replacements.

With CE certification and a minimum order quantity of 1, the TURBO Pulse Valve Diaphragm is suitable for both small-scale and large-scale industrial operations. The pricing is negotiable, and the product is packaged in cartons for safe transportation and storage.

Orders are processed quickly, with a delivery time of 1-7 work days after payment. Payment can be made via T/T, Western Union, or Paypal, providing flexibility for customers. With a supply ability of 5000 pieces per month, TURBO ensures that customers have access to a consistent and reliable source of Pulse Valve Diaphragms.

For applications requiring high temperature and corrosive resistance, TURBO also offers Pulse Valve Diaphragms made of Fluororubber (FKM). These diaphragms can withstand temperatures ranging from -20 ℃ to 200 ℃, with some models capable of reaching up to 260 ℃. They are specifically designed for use in challenging environments such as chemical and waste incineration facilities.

Whether you need individual diaphragms, Diaphragm repair accessories, or complete repair kits, TURBO has the right solution for your pulse valve maintenance needs. Trust TURBO for quality, reliability, and performance in every diaphragm.

Packing and Shipping:

Product Name: Pulse Valve Diaphragm

Product Description: The Pulse Valve Diaphragm is a crucial component for pulse valves, ensuring proper functioning and durability in pneumatic systems.

Package Contents:

• 1 x Pulse Valve Diaphragm
• Installation Instructions

Shipping Information:

• We offer standard and expedited shipping options.
• Orders are typically processed and shipped within 1-2 business days.
• Shipping costs may vary depending on location and selected shipping method.
