M40 1.5 Inch FP DP Series Pulse Jet Valve Diaphragm Repair Kit

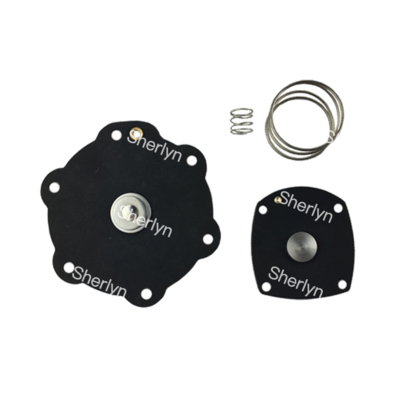

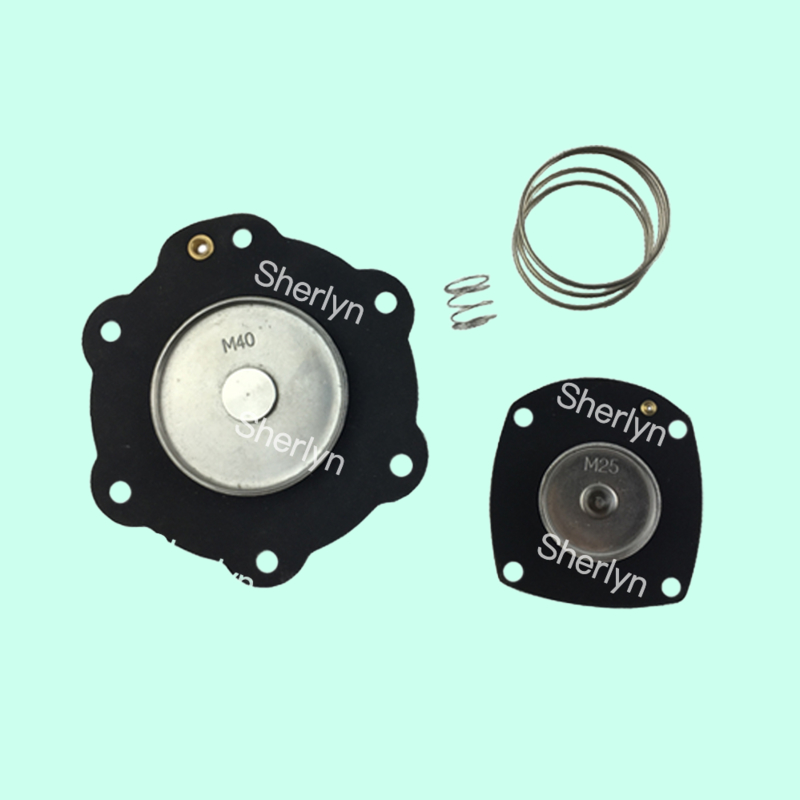

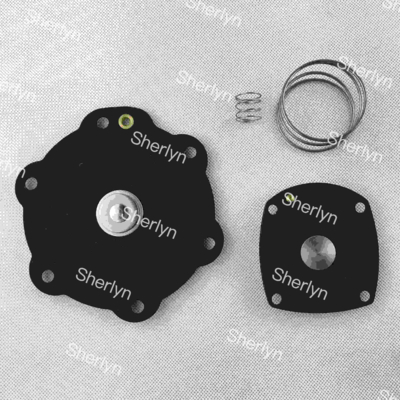

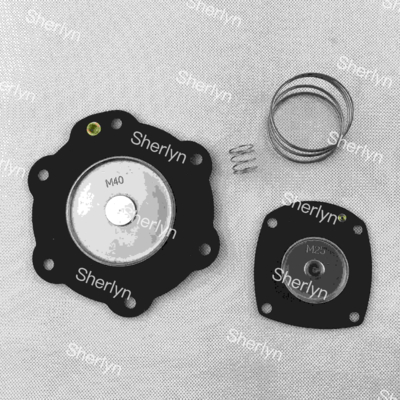

1½" Turbo Diaphragm Repair Kit consisting of a double diaphragm (M45+M10) plus springs (TM0L40 + TMOL11G)
| Fluids: |
Non-lubricated filtered air. |
| Operating temperature: |
Nitrile diaphragm -20°C; +80°C
Viton diaphragm -20°C; +200°C |
| Operating pressure: |
Between 0.5 and 7.5 bar
|
M40 & M40V Diaphragm Repair Kit is suitablr to the 1 1/2'' FM45, FP45, DM45 & DP45 Turbo Valves. There are two kinds of materials for this diaphragm, one is Nitrile and the other is Viton, Nitrile is generally used, Viton is resistant to high temperature and the price is slightly higher.
The M40 Kit is the Nitrile Kit, for use with standard temperature applications
The M40V Kit is the Viton Kit, for use with high temperature applications
1. Fluids: Non-lubricated filtered air.
2. Operating temperature: Nitrile diaphragm (-20°C; +80°C), Viton diaphragm (-20°C; +200°C)
3. Operating pressure: Between 0.5 and 7.5 bar
Applications:
Baghouse Pulse Jet System
The M/D series diaphragms (such as M/D25 type) act as the core sealing and actuating components of the pulse valve in the baghouse. They control the instantaneous release of compressed air to perform high-frequency jetting (several times per second) to clean the surface area of filter bags from dust accumulation.
Workflow: Electrical signal triggers the pulse valve → Diaphragm opens instantly → Compressed air is injected into filter bags via blowing pipes → Filter bags expand and shake off dust → Diaphragm resets and closes.
Valve Compatibility:
- Autel AE1825B, AE2825B, AE1825R, etc., for 1-inch pulse valves
- MD series pulse valves (e.g., MD120, MD125, MD140S) suitable for valve sizes ranging from 20mm to 76mm
Powder Conveying and Silo Arch Breaking
This system is used for pneumatic conveying pipeline cleaning or breaking material bridges in silos. It utilizes pulsating airflows to prevent blockages and is suitable for scenarios involving coal powder, grains, plastic granules, and more.
Industry Applications and Membrane Compatibility
| Industry |
Application |
Compatible Diaphragm Models |
Key Requirements |
| Manufacture of Cement |
Kiln-end dust collector, raw material grinding dust removal |
M/D25, MD140S |
Tolerant to typical dust temperatures (<80℃) |
| Steel Smelting |
Sintering machine head dust removal, blast furnace gas purification |
MD150S, MD162S |
Requires cooler integration (temperature ≤60℃) |
| Wood Processing |
Sawdust collection system |
MD125 |
Explosion-proof design |
| Food/Chemical Industry |
Powder pneumatic conveyance for blockage clearance |
M/D25 (TPE material) |
Oil-free dry air requirement (FDA compatibility) |
| Waste Incineration |
Flue gas treatment system |
Requires EPDM/FKM diaphragms |
Corrosion-resistant (acidic gases) |
| Ordering code |
Fitted valve code |
Valve port size |
Material |
| M25 |
FP20, FM20, FP25, FM25, DP20, DM20, DP25, DM25, EP25, EM25, SQP20, SQM20, SQP25, SQM25, FDP20, FDM20, FDP25, FDM25 |
1'' |
Nitrile/Buna |
| M40 & M25 |
FP40, FM40, DP40, DM40, EP40, EM40 |
1-1/2'' |
Nitrile/Buna |
| M50 & M25 |
SQP50, SQM50, SQP55, SQM55, SQP60, SQM60, SQP65, SQM65 |
2'' |
Nitrile/Buna |
| M75 & M25 |
FP65, FM65, SQP75-IN, SQM75-IN, SQP100-IN, SQM100-IN |
3'' |
Nitrile/Buna |
| Tips: EPDM, Viton all available. |
