TURBO M25 Diaphragm Repair Kit FP25 1-inch Right Angle Pulse Valve Repair Kit

Product Description:

M25 1'' Diaphragm Repair Kit For FP25 FM25 DP25 Pulse Jet Valve

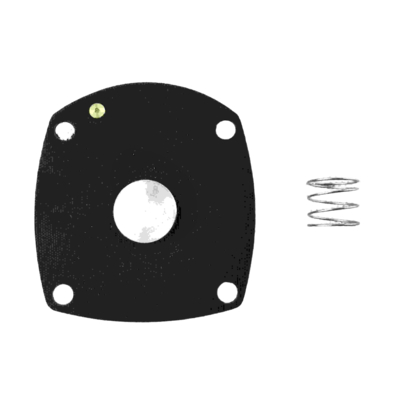

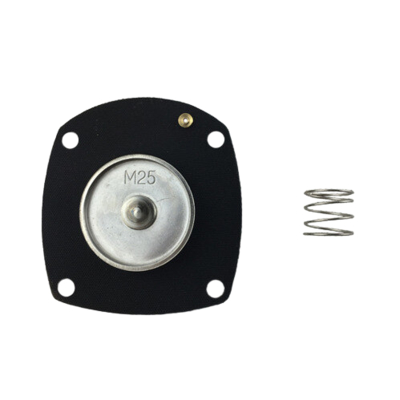

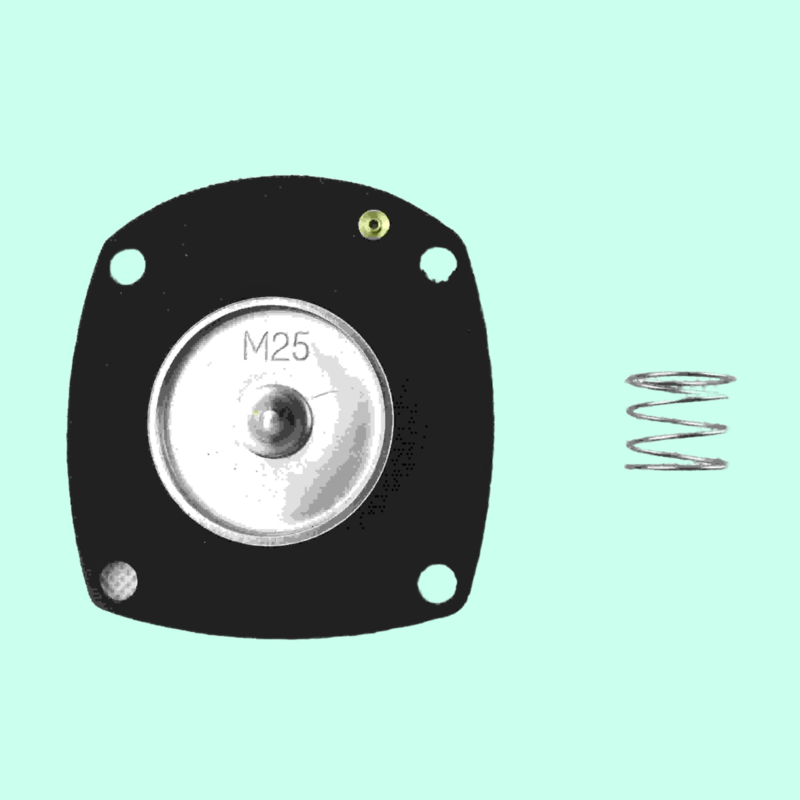

 1" Turbo Diaphragm Repair Kit consisting of a single diaphragm (M25) plus spring (TM0L10G)

M25 or M25V Diaphragm Repair Kit is used in Turbo 3/4'' & 1'' FP20, FM20, FP25, FM25, DP20, DM20, DP25, DM25, EP20, EM20, EP25, EM25, SQP20, SQM20, SQP25, SQM25, FDP20, FDM20, FDP25, FDM25 pulse jet valves. The M25 Diaphragm Repair Kit is the Nitrile Kit, for use with standard temperature applications. The M25V Diaphragm Repair Kit is the Viton Kit, for use with high temperature applications.

We produced series Turbo type diaphragm repair kits, it is nice replacement for Turbo diaphragm.

Ordering code: M20, M25, M40, M50, M55, M75

Applications:

The bag type dust collector spray system

The M/D series diaphragms (e.g., M/D25) serve as the core sealing and actuating elements of the pulse valve in the dust collector, controlling the instantaneous release of compressed air to clear dust on the filter bag surface through high-frequency spraying (several times per second).

Workflow: Electric signal triggers the pulse valve → Diaphragm instantly opens → Compressed air is injected into the filter bag through the spray tube → Filter bag expands and shakes off dust → Diaphragm resets and closes.

Compatible valve models:

• Autel AE1825B, AE2825B, AE1825R, etc., 1-inch pulse valves
• MD series pulse valves (e.g., MD120, MD125, MD140S), especially suitable for valve sizes ranging from 20mm to 76mm.

Powder conveying and bin arch-breaking

Used for clearing blockages in pneumatic conveying pipelines or breaking material bridges in bins, preventing clogging through pulse air impact, suitable for scenarios involving coal dust, grains, plastic granules, and more.

Support and Services:

Our Product Technical Support and Services for the Pulse Valve Diaphragm include:

- Comprehensive troubleshooting assistance for any issues related to the product.

- Expert guidance on installation, maintenance, and optimization of the pulse valve diaphragm.

- Access to product documentation, user manuals, and technical specifications to aid in product usage.

- Repairs and replacement services for damaged or faulty pulse valve diaphragm components.
