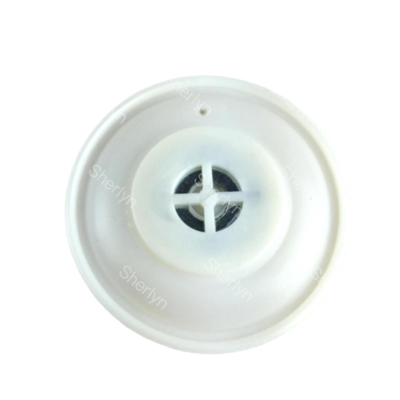

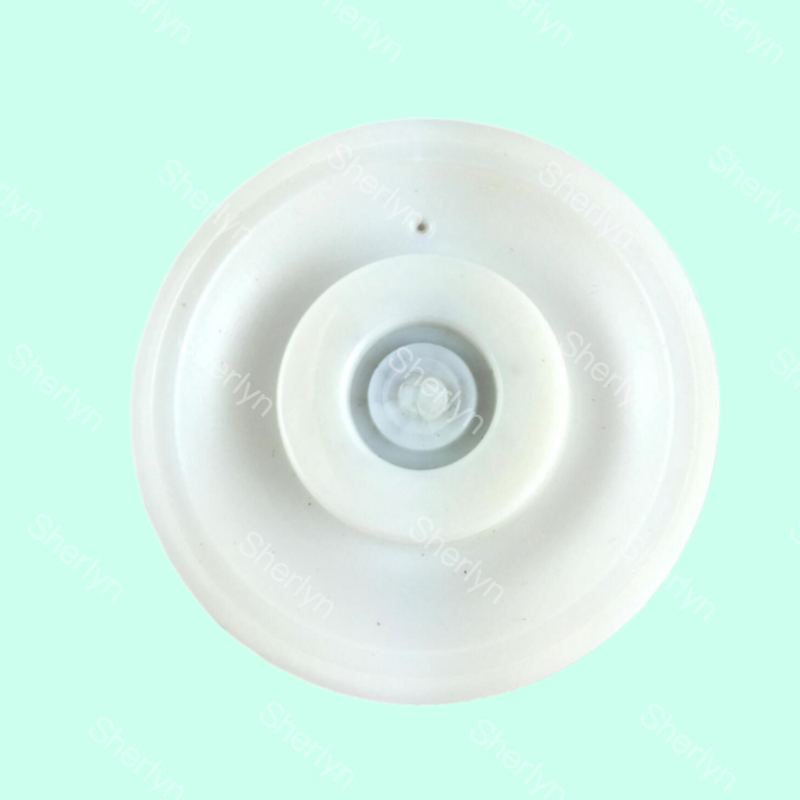

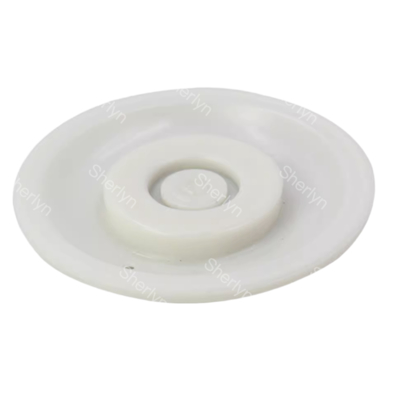

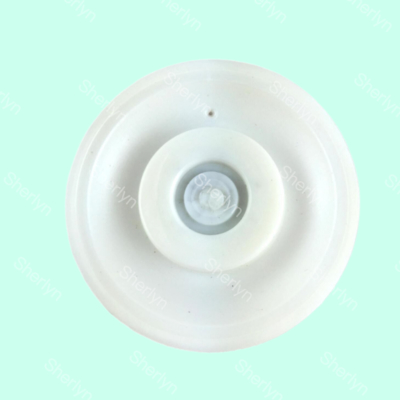

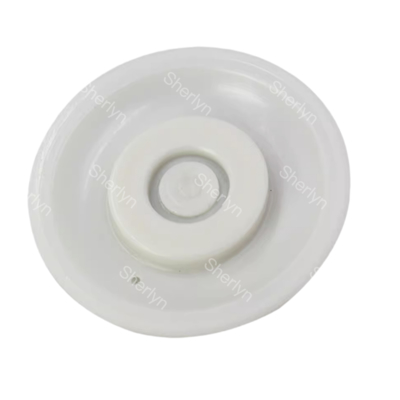

M/D20 Diaphragm For Autel Dust Collector Pulse Valve 3/4'' AE1818B AE2818B

M/D20 Diaphragm For Autel Dust Collector Pulse Valve 3/4'' AE1818B AE2818B

  • M/D20 Diaphragm For Autel Dust Collector Pulse Valve 3/4'' AE1818B AE2818B
  • M/D20 Diaphragm For Autel Dust Collector Pulse Valve 3/4'' AE1818B AE2818B
  • M/D20 Diaphragm For Autel Dust Collector Pulse Valve 3/4'' AE1818B AE2818B
  • M/D20 Diaphragm For Autel Dust Collector Pulse Valve 3/4'' AE1818B AE2818B
  • M/D20 Diaphragm For Autel Dust Collector Pulse Valve 3/4'' AE1818B AE2818B
M/D20 Diaphragm For Autel Dust Collector Pulse Valve 3/4'' AE1818B AE2818B
Product Details:
Brand Name: Autel
Certification: CE
Model Number: M/D20
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1-7Work Days After Payment
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 5000 Pieces/1Month
Contact Now
Detailed Product Description
Diaphragm Material: TPE Fitted Pulse Valve Model: AE1818B, AE2818B
Port Size: 3/4'' Product Name: Pulse Valve Diaphragm
Highlight:

Industrial NBR diaphragm pulse valve

,

3/4'' pulse valve for dust collector

,

AE1818B dust collector diaphragm valve

Detailed Product Description
Product Name: Pulse Valve Diaphragm Diaphragm Material: TPE
Fitted Pulse Valve Port: 3/4'' Fitted Pulse Valve Model: AE1818B, AE2818B
Highlight:

M/D20 Diaphragm Kits

TPE Diaphragm Kits

Autel M/D20 Diaphragm

Product Description:

The M/D series membrane (such as M/D25 type) is made of thermoplastic elastomer (TPE) material, which has excellent fatigue resistance and wide temperature adaptability (-40 ℃~100 ℃), designed specifically for the high-frequency blowing and cleaning requirements of Autel pulse valves. The three-layer composite structure (sealing layer+polyester fiber skeleton+elastic layer) ensures fast response (≤ 30ms) and long lifespan (standard 1 million actions) in high-pressure environments.


  • Diaphragm Material Options: TPE, NBR, EPDM, FKM
  • Seat Material Options: Nylon, Rubber, PTFE
  • Diaphragm Color Options: Black, White, Red, Green, and more
  • Diaphragm Size: Custom sizes available to match your specific requirements
  • Packaging: Custom plastic bags with low minimum order quantity (MOQ) for your convenience



Applications:

The baghouse pulse jet system utilizes M/D series diaphragms (e.g., M/D25) as core sealing and actuating components of the pulse valves. These diaphragms control the momentary release of compressed air in the baghouse, allowing high-frequency pulses (several times per second) to clean the surface area of filter bags.

Operating procedure: electrical signal triggers the pulse valve → diaphragm opens instantaneously → compressed air is injected into the filter bags via blowpipes → filter bag expands and shakes off dust → diaphragm returns to closed position.

Compatible valve models include:

  • Autel AE1825B, AE2825B, AE1825R, and other 1-inch pulse valves;
  • MD series pulse valves (e.g., MD120, MD125, MD140S), especially suitable for valves with nominal diameters ranging from 20mm to 76mm.

Powder conveying and silo arch breaking play a crucial role in clearing blockages in pneumatic conveying pipelines or breaking material bridges in silos. The use of pulse airflows helps prevent clogging and is applicable in scenarios involving coal dust, grains, plastic pellets, and more.

Industry Application Compatible Diaphragm Models Key Requirements
Cement Manufacturing Kiln tail dust collector, raw material grinding dust removal M/D25, MD140S Resistant to normal-temperature dust (<80°C)
Steel Smelting Sintering machine head dust removal, blast furnace gas purification MD150S, MD162S Requires cooling device (temperature ≤60°C)
Wood Processing Sawdust collection system MD125 Explosion-proof design
Food/Chemical Industry Powder pneumatic conveying for blockage clearance M/D25 (TPE material) Oil-free dry air (FDA compatibility)
Waste Incineration Flue gas treatment system Requires EPDM/FKM diaphragms Corrosion-resistant (acidic gas)

M/D20 Diaphragm For Autel Dust Collector Pulse Valve 3/4'' AE1818B AE2818B 0

M/D20 Diaphragm For Autel Dust Collector Pulse Valve 3/4'' AE1818B AE2818B 1

M/D20 Diaphragm For Autel Dust Collector Pulse Valve 3/4'' AE1818B AE2818B 2

M/D20 Diaphragm For Autel Dust Collector Pulse Valve 3/4'' AE1818B AE2818B 3

M/D20 TPE Diaphragm Kits For 3/4'' 1'' Dust Collector Pulse Jet Valve


The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.



Options for your customization:
1. Diaphragm Material: TPE, NBR, EPDM, FKM
2. Seat Material: Nylon, Rubber, PTFE
3. Diaphragm Color: Black, White, Red, Green, etc
4. Diaphragm Size: We can make it as same as your drawing
5. Packaging: We can provide you custom plastic bag with low MOQ

M/D20 Diaphragm For Autel Dust Collector Pulse Valve 3/4'' AE1818B AE2818B 4
Ordering Code of Diaphragm For AUTEL Pulse Valve:
Diaphragm Diaphragm Pulse Valve Pulse Valve Diaphragm
Order Code Reference No Model No Port Size Material
AE18 M/D20 AE1818B, AE2818B 3/4'', 1'' TPE (Standard)
AE1822B, AE2822B FKM+PTFE (High Temperature)
AE25 M/D25 AE1825B, AE2825B 1''
AE1825R, AE2825R
AE40 M/D40 AE1440B, AE2440B 1-1/2''
AE1440R, AE2440R
AE50 M/D50 AE1450B, AE2450B 2'', 2-1/2''
M/D60 AE1460B, AE2460B
AE75 M/D75 AE1475I12, AE2475I12 3''

Support and Services:

The Product Technical Support and Services for the Pulse Valve Diaphragm include:

- Troubleshooting assistance for installation and operation issues

- Guidance on maintenance and care for optimal performance

- Access to online resources such as manuals and FAQs

- Warranty information and support for product replacements or repairs


Packing and Shipping:

Product Name: Pulse Valve Diaphragm

Description: High-quality diaphragm designed for pulse valves

Material: Durable rubber

Package Includes: One pulse valve diaphragm

Shipping Information:

Shipping Method: Standard Shipping

Shipping Time: 2-5 business days

Shipping Cost: $5.00

Contact Details
YW DKE TRADING COMPANY

Contact Person: Sherlyn

Tel: +8613968387107

Send your inquiry directly to us
