Product Description:

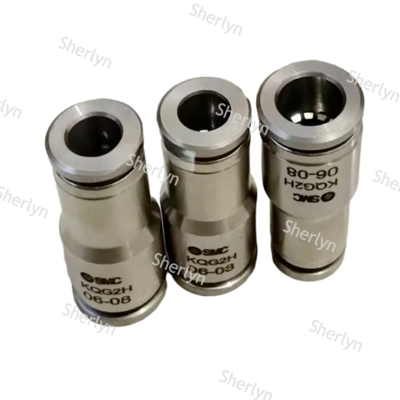

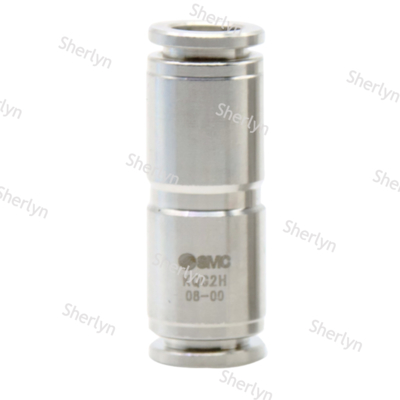

Series KQG2 is a one-touch fitting made of all stainless steel SUS316, except seal parts. The series is suitable for use with steam and is grease-free. Applicable tubing includes FEP, PFA, nylon, soft nylon, polyurethane and polyolefin. The KQG2 series is available in both metric and inch sizes. The KQG2 is more compact and lightweight, and offers more configuration variations and tube sizes than the KQG series.
- Stainless steel 316 one-touch fittings, inch size
- Seal parts: FKM
- Can be used with steam
- Grease-free
- Applicable tubing material includes FEP, PFA, nylon, soft nylon, polyurethane, polyolefin
Applications:
Industrial Dust Removal and Environmental Protection Equipment
Bag type dust removal system: connecting pulse valve and air bag, used for high-temperature dust environment in cement plant kiln tail and steel plant sintering machine (such as DMF-Y submerged valve matching).
Sewage treatment aeration control: corrosion-resistant design to resist acidic media, suitable for quick connection of pneumatic pipelines.
Food and Pharmaceutical Industry
Aseptic fluid delivery: Oil free design+FKM seal, compliant with FDA standards, used for steam cleaning pipelines in filling lines (such as KQG2H16-04S type).
High temperature disinfection system: resistant to steam at 150 ℃, suitable for fermentation tanks and CIP cleaning pipelines.
Chemical and Energy Fields
Corrosive medium transmission: SUS316 material is resistant to acids, alkalis, and solvents and is used for chemical agent transportation pipelines.
Steam power system: The straight through structure (such as KQG2H23-00) optimizes the connection of steam pipelines to reduce the risk of leakage.
Automation and Pneumatic Control
Pneumatic actuator connection: Compact design integrated into the robotic arm fixture (such as CQ2 cylinder pipeline) to improve response speed.
Vacuum equipment: supports -100kPa vacuum environment, used for suction cup control system in electronic semiconductor manufacturing.
| Type |
[Fitting] One-Touch Coupling |
Fitting Type |
Union with different diameters |
| Tube Size 1(φ) |
8 |
Tube Size 2(φ) |
10 |
| Body Material |
316 Stainless Steel |
Application |
Standard |
| Thread Portion Material |
No Thread Part |
Seal/O-Ring Material |
[Fluororubber] Special FKM (Fluorine Coated) |
| Tube to Tube Reducing Union Shape |
[Unequal Dia. Union Straight] Unequal Diameter Straight |
Compatible Fluid |
Water / Air |
| Type Of Connection |
Tube Connection |
Number of Connection Tubes(piece) |
2 |
Support and Services:
Our Product Technical Support team for Pneumatic Pipe Fittings is dedicated to assisting you with any technical inquiries, including product specifications, installation guidance, troubleshooting, and maintenance tips. Our team of experts is committed to providing you with the support you need to ensure optimal performance and reliability of your pneumatic system.
In addition to technical support, we also offer a range of services for Pneumatic Pipe Fittings, such as customization options, training workshops, and on-site consultations. Our goal is to help you maximize the efficiency and effectiveness of your pneumatic system through our comprehensive support services.
Packing and Shipping:

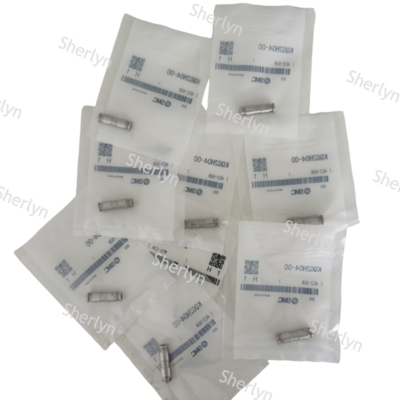

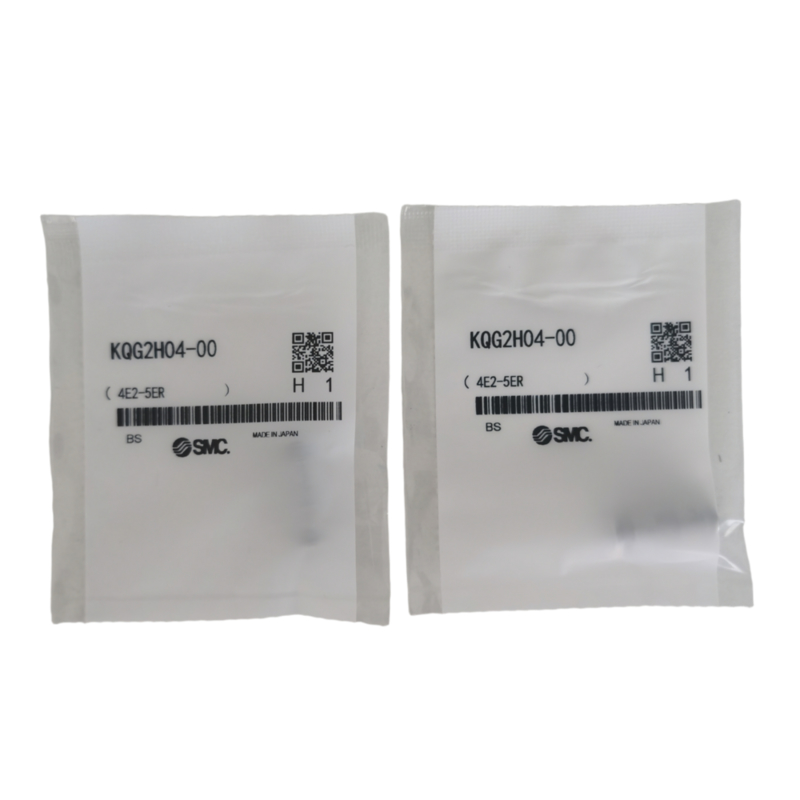

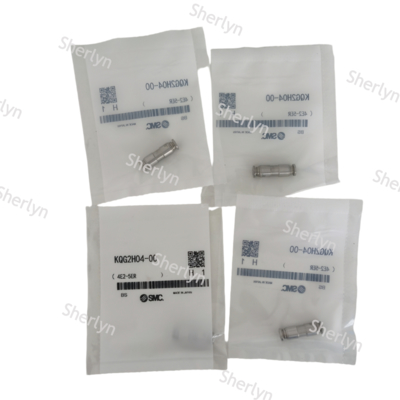

Product Packaging and Shipping:
Our Pneumatic Pipe Fittings are meticulously packaged to ensure safe delivery to our customers. Each fitting is wrapped in protective material to prevent scratches or damage during transit.
For shipping, we partner with reliable carriers to guarantee timely delivery. Our products are shipped in sturdy boxes to prevent any mishandling during transportation.
