Shape Union
Brand SMC
Series KQG2
Fitting Body Material 316 Stainless Steel
Material Grade 316
Compatible Tube Material FEP; Nylon; PFA
Fitting Side A Tube Outer Diameter 10 mm
Fitting Side B Tube Outer Diameter (Actual) 10 mm
Color Silver
Product Description:
The joint is constructed from stainless steel 304 material, and it is designed for compatibility with copper and zinc-free environments, as well as corrosive settings.
There are numerous models and specifications available, making it suitable for a wide range of pneumatic systems.
The product boasts excellent circulation performance, featuring simple and convenient plug-and-play connections that offer safe, reliable, and long-lasting connections with the airway.
The threaded part of the joint is coated with sealant, while the M5 metric threads come equipped with sealing rings to ensure a leak-free connection at the threaded junction.
Applications:
Industrial dust removal and environmental protection equipment
Bag type dust removal system: connecting pulse valve and air bag, used for high-temperature dust environment in cement plant kiln tail and steel plant sintering machine (such as DMF-Y submerged valve matching).
Sewage treatment aeration control: corrosion-resistant design to resist acidic media, suitable for quick connection of pneumatic pipelines.
Food and pharmaceutical industry
Aseptic fluid delivery: Oil free design+FKM seal, compliant with FDA standards, used for steam cleaning pipelines in filling lines (such as KQG2H16-04S type).
High temperature disinfection system: resistant to steam at 150 ℃, suitable for fermentation tanks and CIP cleaning pipelines.
Chemical and energy fields
Corrosive medium transmission: SUS316 material is resistant to acids, alkalis, and solvents and is used for chemical agent transportation pipelines.
Steam power system: The straight through structure (such as KQG2H23-00) optimizes the connection of steam pipelines to reduce the risk of leakage.
Automation and Pneumatic Control
Pneumatic actuator connection: Compact design integrated into the robotic arm fixture (such as CQ2 cylinder pipeline) to improve response speed.
Vacuum equipment: supports -100kPa vacuum environment, used for suction cup control system in electronic semiconductor manufacturing.
| Brand: |
SMC |
| Fitting/Connector Type: |
Union |
| Length: |
35 mm |
| Manufacturer: |
SMC Corporation of America |
| Material: |
Stainless Steel |
| Name: |

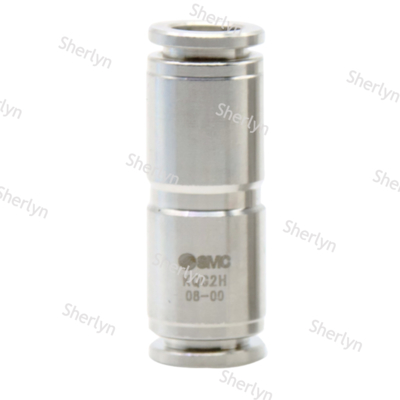

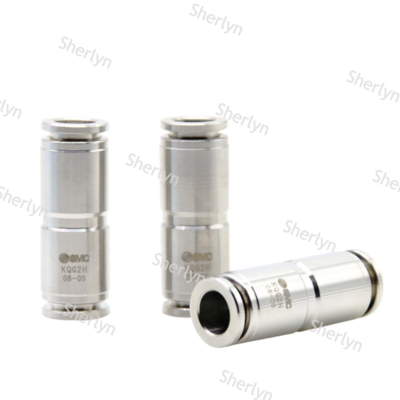

SMC KQG2H10-00 KQG2 Metric Straight Union, 10 x 10 mm Nominal, Stainless Steel |
| Nominal Size: |
10 x 10 mm |
| Product Type: |
Simple |
| Series: |
KQG2 |
| Temperature Rating: |
-5 to 150 deg C |
| Type: |
Metric Straight |
| Unit Of Measure: |
EA |
| Weight: |
1.00 |
Support and Services:
Our product technical support team for Pneumatic Pipe Fittings is dedicated to assisting you with any technical questions or issues you may encounter. We offer troubleshooting guidance, product specifications, and application assistance to ensure the proper installation and operation of our fittings.
In addition, we provide various services to support our customers, such as maintenance programs, repair services, and training sessions. Our goal is to help you maximize the performance and lifespan of your pneumatic pipe fittings.
Feel free to reach out to our technical support team for any assistance you may need in using our Pneumatic Pipe Fittings.

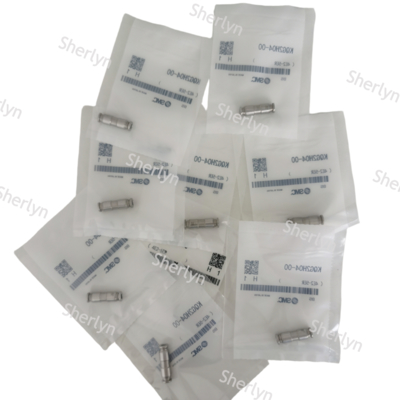

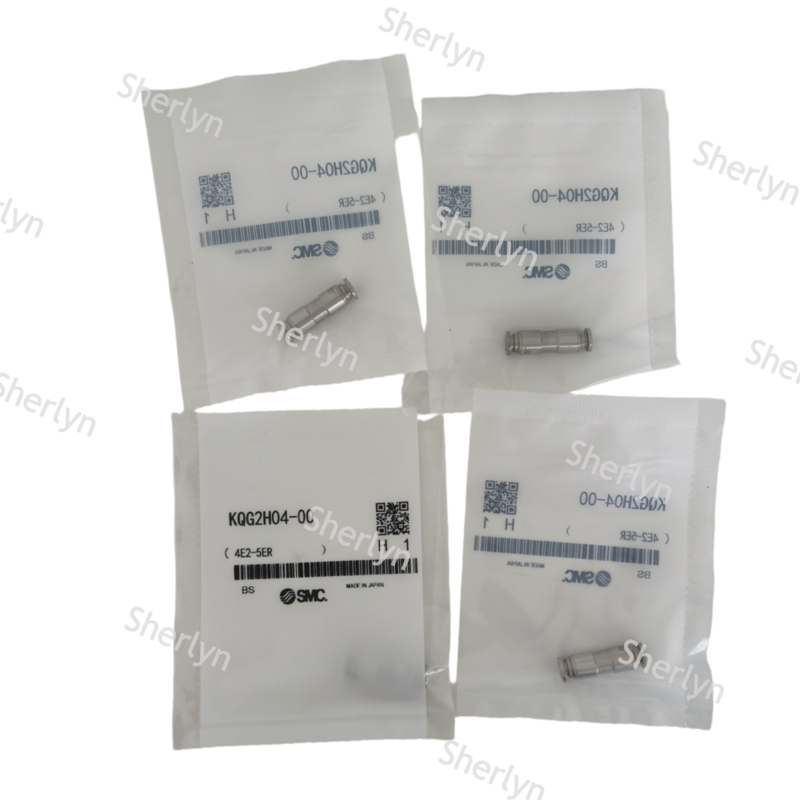

Packing and Shipping:
Product Name: Pneumatic Pipe Fittings
Description: High-quality pneumatic pipe fittings for industrial use.
Package Contents: Assorted pneumatic pipe fittings in various sizes.
Package Material: Sturdy cardboard box to ensure safe delivery.
Shipping Method: Standard shipping via reputable courier services.
Shipping Time: Estimated delivery within 5-7 business days.
