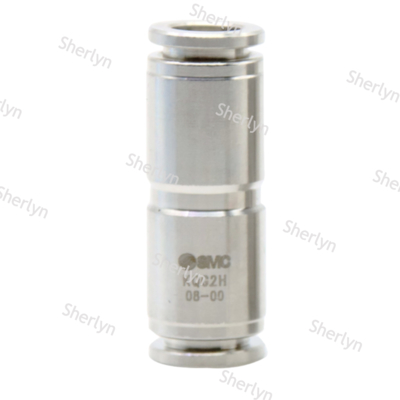

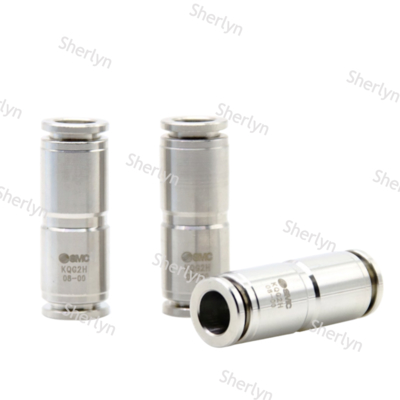

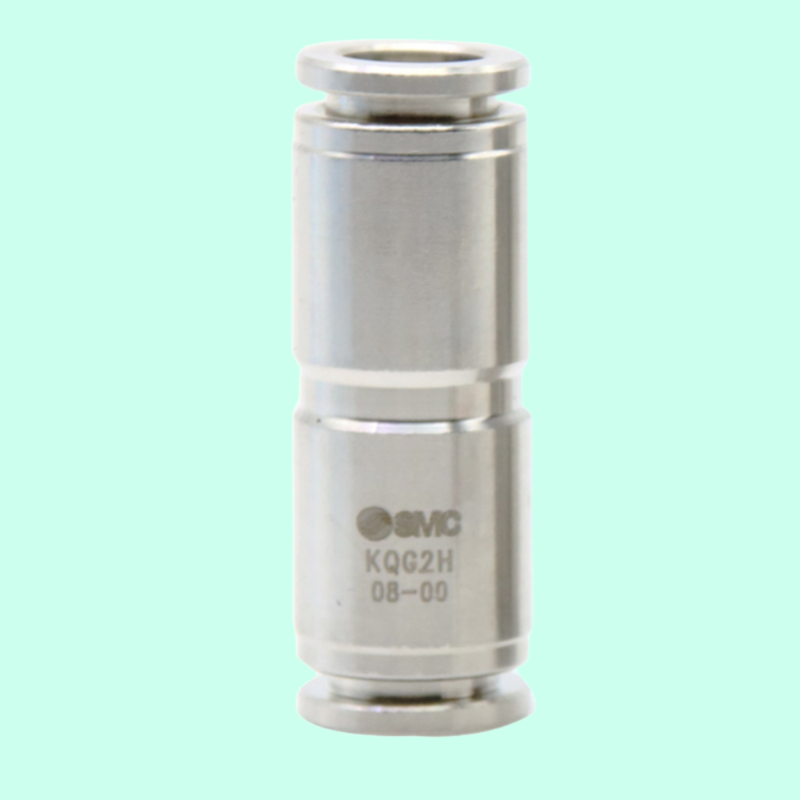

Product Description:
The joint is constructed from stainless steel 304 material, making it suitable for applications in environments free of copper and zinc as well as in corrosive environments.
Featuring multiple models and specifications, this product is extensively utilized in a variety of pneumatic systems.
It boasts exceptional circulation performance and offers straightforward plug-and-play connections, ensuring secure, reliable, and long-lasting connections with the airway.
The threaded portion is treated with sealant, and M5 metric threads come with sealing rings to guarantee a leak-free threaded connection.
Applications:
Industrial dust removal and environmental protection equipment
Bag type dust removal system: connecting pulse valve and air bag, used for high-temperature dust environment in cement plant kiln tail and steel plant sintering machine (such as DMF-Y submerged valve matching).
Sewage treatment aeration control: corrosion-resistant design to resist acidic media, suitable for quick connection of pneumatic pipelines.
Food and pharmaceutical industry
Aseptic fluid delivery: Oil free design+FKM seal, compliant with FDA standards, used for steam cleaning pipelines in filling lines (such as KQG2H16-04S type).
High temperature disinfection system: resistant to steam at 150 ℃, suitable for fermentation tanks and CIP cleaning pipelines.
Chemical and energy fields
Corrosive medium transmission: SUS316 material is resistant to acids, alkalis, and solvents and is used for chemical agent transportation pipelines.
Steam power system: The straight through structure (such as KQG2H23-00) optimizes the connection of steam pipelines to reduce the risk of leakage.
Automation and Pneumatic Control
Pneumatic actuator connection: Compact design integrated into the robotic arm fixture (such as CQ2 cylinder pipeline) to improve response speed.
Vacuum equipment: supports -100kPa vacuum environment, used for suction cup control system in electronic semiconductor manufacturing.
| Type |
[Fitting] One-Touch Coupling |
Fitting Type |
Union with same diameter |
| Tube Size 1(φ) |
6 |
Body Material |
316 Stainless Steel |
| Application |
Standard |
Thread Portion Material |
No Thread Part |
| Seal/O-Ring Material |
[Fluororubber] Special FKM (Fluorine Coated) |
Tube to Tube Union Shape |
Union Straight |
| Compatible Fluid |
Water / Air |
Type Of Connection |
Tube Connection |
| Number of Connection Tubes(piece) |
2 |
Color |
silvery |
Support and Services:
Our product technical support team for Pneumatic Pipe Fittings is dedicated to providing assistance with any inquiries or issues you may encounter. Our experts are available to help with installation guidance, troubleshooting, and product information.
In addition to technical support, we also offer a range of services for Pneumatic Pipe Fittings, including maintenance programs, training sessions, and product customization options. Our goal is to ensure that you have the support and resources needed to maximize the performance and longevity of your pneumatic pipe fittings.

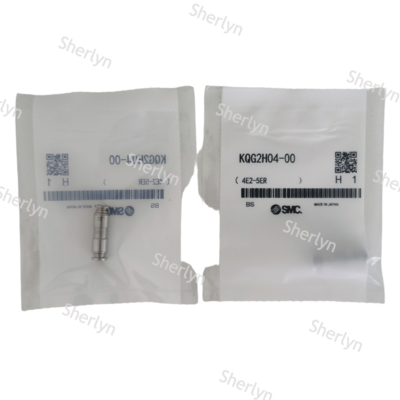

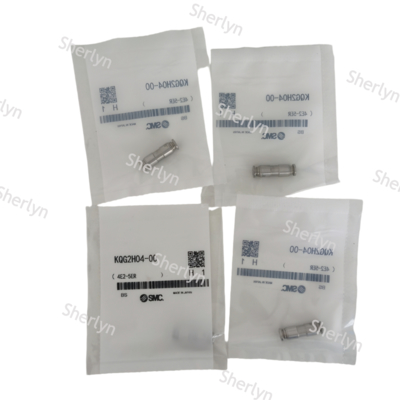

Packing and Shipping:
Product Name: Pneumatic Pipe Fittings
Description: High-quality pneumatic pipe fittings for industrial use.
Package Includes: Set of pneumatic pipe fittings
Shipping: This product will be carefully packaged to ensure safe delivery. Shipping options available at checkout.
