Product Description:
Core Features and Design Advantages
Material and sealing
SUS316 stainless steel: significantly superior to 304 stainless steel in terms of pitting and chloride corrosion resistance, suitable for high corrosion environments such as chemical and marine industries.
FKM seal: resistant to temperatures up to 150 ℃, compatible with steam and chemical solvents, and does not require lubricating grease, meeting the hygiene requirements of the food/pharmaceutical industry.
Lightweight and compact structure
The volume of the KQG series is reduced by 30% compared to the old model, and the weight is reduced by 62%. It is suitable for pipes with a diameter of 3.2~16mm and is suitable for devices with limited space.
Wide working condition adaptability
Pressure range: -100kPa (vacuum) to 1MPa (pressure resistance 3MPa).
Temperature range: -5 ℃~+150 ℃, supporting steam medium.
Applications:
Food and pharmaceutical industry
Aseptic fluid delivery: Oil free design and FKM sealing that adhere to FDA standards are utilized for filling lines, CIP (in-situ cleaning) steam pipelines. An example is model KQG2L16-04S, which is connected to steam disinfection systems.
High temperature disinfection: Capable of withstanding steam at 150 ℃, this equipment is applied to fermentation tanks and sterilization equipment pipelines.
Chemical and energy equipment
Corrosive medium transmission: Made of SUS316 material, resistant to acids, alkalis, and organic solvents, this equipment is used for transporting chemical agents in processes like sulfuric acid and chlor alkali.
Steam power system: Featuring a straight through structure, for example, KQG2L12-00, which optimizes the connection of steam pipelines to minimize the risk of leakage.
Industrial environmental protection equipment
Dust removal system: Combining pulse valve with air bag, this system is employed in high-temperature dust environments in places like cement plant kiln tail and steel plant sintering machine. An ideal match is the DMF-Y submerged valve.
Wastewater treatment aeration: Designed for acid-resistant medium, this equipment is suitable for quick connection of pneumatic pipelines, especially in aeration tank control valves.
Automated pneumatic control
Precision equipment integration: Compact in structure, like the KQG2L23-M5, making it suitable for mechanical arm fixtures, sensor air path connections, and enhancing space utilization.
Vacuum system: Supports a -100kPa vacuum environment and is used for controlling suction cups in semiconductor manufacturing.
Support and Services:
Our Product Technical Support and Services for Pneumatic Pipe Fittings include:
- Expert assistance with product selection and compatibility
- Troubleshooting guidance for installation and usage
- Maintenance tips and best practices to ensure optimal performance
- Product manuals and documentation for reference
- Warranty information and assistance with claims
Packing and Shipping:
Product Name: Pneumatic Pipe Fittings
Description: High-quality pneumatic pipe fittings for industrial use.

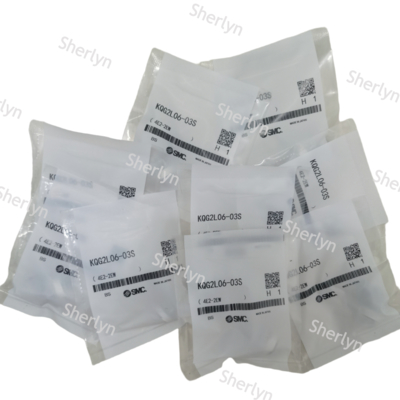

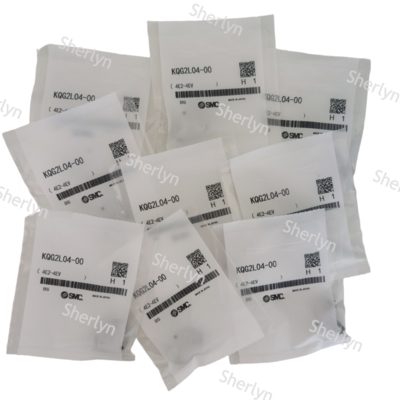

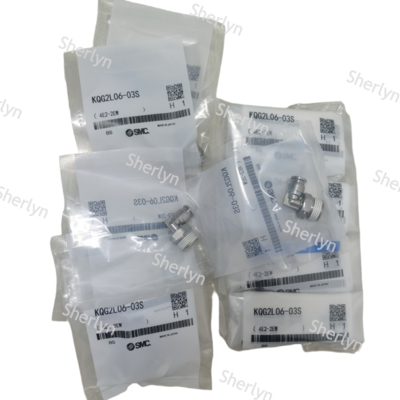

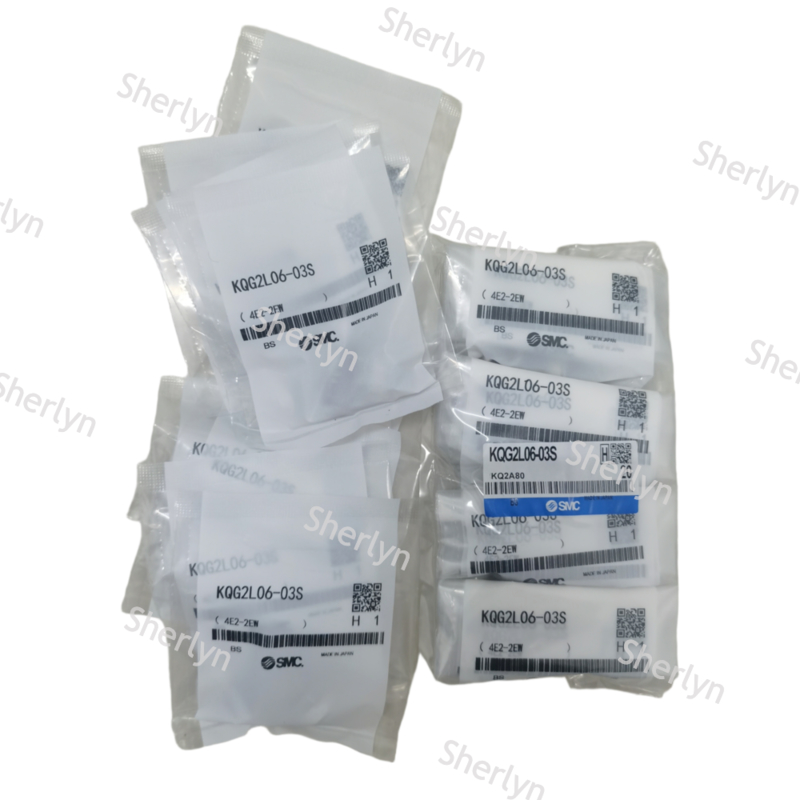

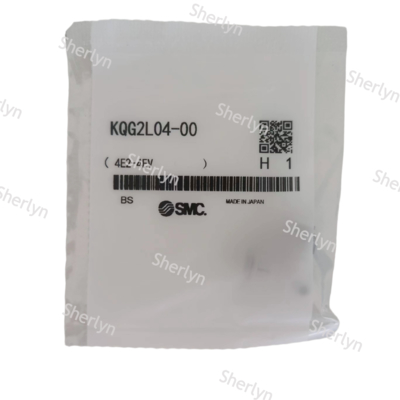

Packaging:
The pneumatic pipe fittings are carefully packed in a sturdy cardboard box to ensure safe transportation. Each fitting is individually wrapped to prevent scratching or damage during shipping.
Shipping:
We offer fast and reliable shipping services for our pneumatic pipe fittings. Orders are processed within 24 hours and shipped with tracking information provided to monitor delivery status. We ensure that the fittings are securely packaged to prevent any damage during transit.
