SMC KQG2L04-01S 90 Deg Elbow With Sealant 316 Stainless Steel 4 Mm X R1/8

Product Description:

Core Features and Design Advantages

Material and sealing
SUS316 stainless steel: significantly superior to 304 stainless steel in terms of pitting and chloride corrosion resistance, suitable for high corrosion environments such as chemical and marine industries.
FKM seal: resistant to temperatures up to 150 ℃, compatible with steam and chemical solvents, and does not require lubricating grease, meeting the hygiene requirements of the food/pharmaceutical industry.

Lightweight and compact structure
The volume of the KQG series is reduced by 30% compared to the old model, and the weight is reduced by 62%. It is suitable for pipes with a diameter of 3.2~16mm and is suitable for devices with limited space.

Wide working condition adaptability
Pressure range: -100kPa (vacuum) to 1MPa (pressure resistance 3MPa).
Temperature range: -5 ℃~+150 ℃, supporting steam medium.

Applications:

Food and pharmaceutical industry

Aseptic fluid delivery: Oil free design+FKM sealing meets FDA standards, used for filling lines, CIP (in-situ cleaning) steam pipelines (such as model KQG2L16-04S connected to steam disinfection systems).

High temperature disinfection: Resistant to steam at 150 ℃, applied to fermentation tanks and sterilization equipment pipelines.

Chemical and energy equipment

Corrosive medium transmission: SUS316 material is resistant to acids, alkalis, and organic solvents, and is used for chemical agent transportation pipelines (such as sulfuric acid and chlor alkali processes).

Steam power system: The straight through structure (such as KQG2L12-00) optimizes the connection of steam pipelines to reduce the risk of leakage.

Industrial environmental protection equipment

Dust removal system: Connect pulse valve and air bag, used for high-temperature dust environment in cement plant kiln tail and steel plant sintering machine (such as matching DMF-Y submerged valve).

Wastewater treatment aeration: acid resistant medium design, suitable for quick connection of pneumatic pipelines (such as aeration tank control valves).

Automated pneumatic control

Precision equipment integration: Compact structure (such as KQG2L23-M5) is suitable for mechanical arm fixtures, sensor air path connections, and improves space utilization.

Vacuum system: supports -100kPa vacuum environment, used for suction cup control in semiconductor manufacturing.

Support and Services:

Our Product Technical Support team for Pneumatic Pipe Fittings is dedicated to assisting customers with any technical questions or issues they may encounter. Our experts are available to provide guidance on product selection, installation, troubleshooting, and maintenance to ensure optimal performance of the fittings.

In addition to technical support, we also offer various services related to Pneumatic Pipe Fittings, such as on-site consultations, training programs, and customized solutions to meet specific application requirements. Our goal is to help customers maximize the efficiency and reliability of their pneumatic systems through our comprehensive support and services.

Packing and Shipping:

Product Packaging:

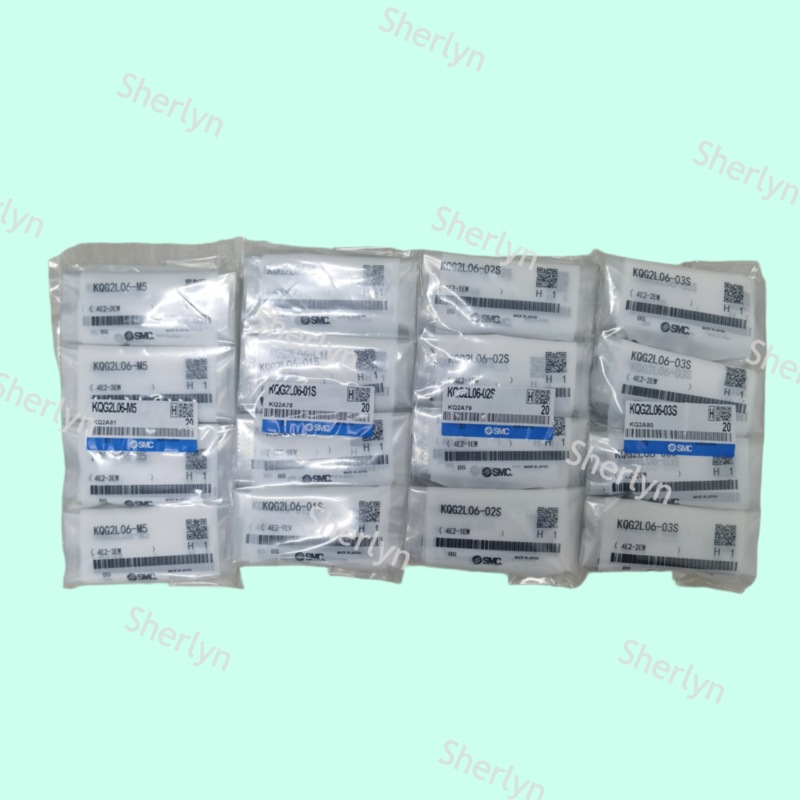

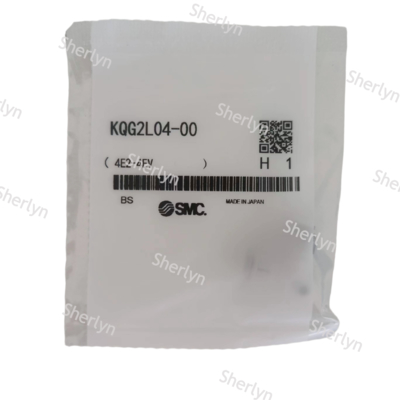

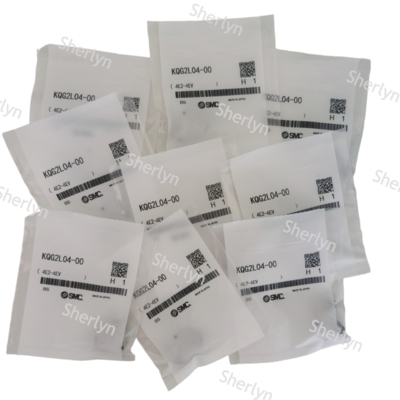

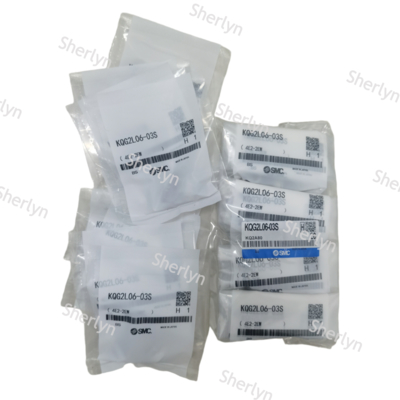

Our pneumatic pipe fittings are carefully packaged to ensure their safety during transit. Each fitting is individually wrapped in bubble wrap and then placed in a sturdy cardboard box filled with cushioning material to prevent any damage.

Shipping:

We offer fast and reliable shipping options for our pneumatic pipe fittings. Orders are typically processed within 1-2 business days and shipped using trusted carriers such as UPS or FedEx. Tracking information will be provided so you can easily monitor the status of your delivery.
