Product Description:

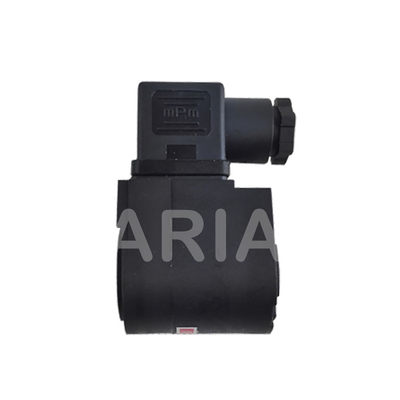

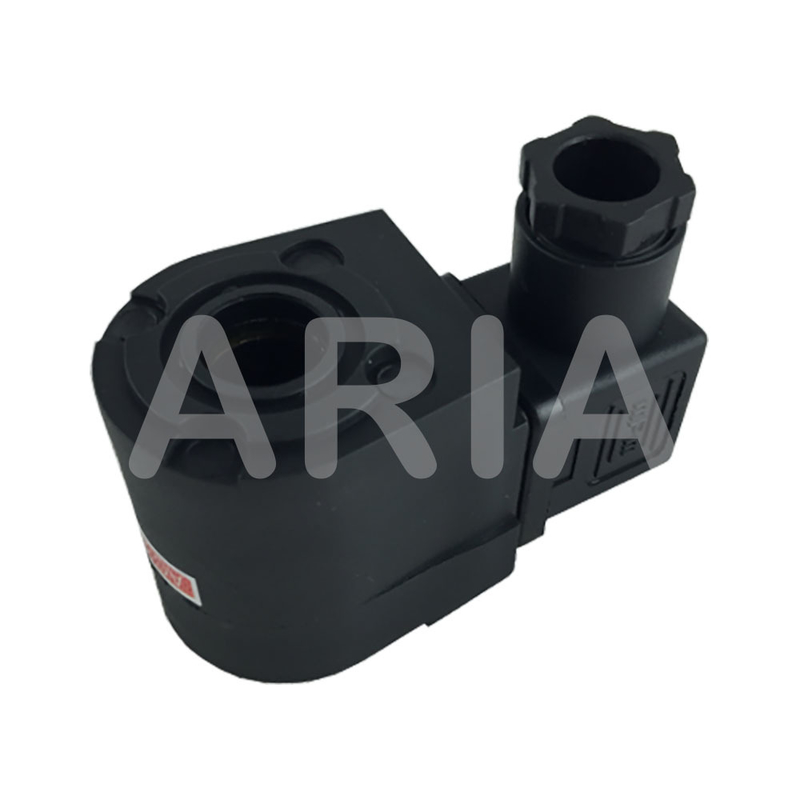

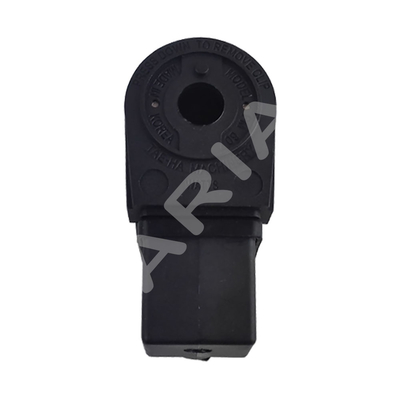

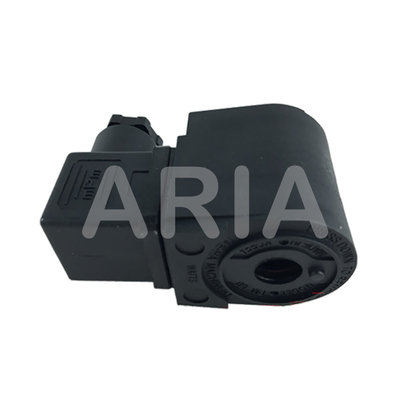

This is PM 60 (PM60, PM-60) solenoid coil for Taeha Pulse Jet Valve TH-4820-B, TH-4820-C, TH-4825-B, TH-4825-C, TH-4840-F, TH-4840-B, TH-4440-B, TH-4840-C, TH-4440-C, TH-4850-F, TH-4450-F, TH-4440-M, TH-4450-B, TH-4450-M, TH-4460-B, TH-4460-S, TH-4475-B. Voltage: 24VDC, 24VAC, 110VAC, 220VAC; Power: 18VA,15W; Connector: DIN43650A. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Technical Parameters:
| Ordering No |
PM-60 |
| Brando No. |
BB14145706 |
| Connector |
DIN43650A |
| Voltages |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Powers |
18VA, 15W |
| Application |
TH-4820-B, TH-4820-C, TH-4825-B, TH-4825-C, TH-4840-F, TH-4840-B, TH-4440-B, TH-4840-C, TH-4440-C, TH-4850-F, TH-4450-F, TH-4440-M, TH-4450-B, TH-4450-M, TH-4460-B, TH-4460-S, TH-4475-B |
Applications:
Compatible models: ITSPK1-4825/5825 models are compatible with 1-inch pulse valves such as TH-4825-B, TH-5825-C, TH-5840-F, TH-5825-M, etc; MD01-30 is compatible with TH-5830-B, TH-5430-B, and TH-4830-B pulse valves that are 1 and 1/4 inches in size; MD03-50M is compatible with 2-inch TH-5450-B, TH-4450-B, TH-5450-M, TH-4450-M pulse valves, etc.
Material parameters: The membrane is usually made of nitrile rubber (NBR) or fluororubber (FKM) material. Nitrile rubber generally has a temperature resistance range of -10 ℃ to 70 ℃, while fluororubber has a temperature resistance range of -10 ℃ to 200 ℃. Metal components and metal plates are generally made of stainless steel, and the membrane is made of nitrile rubber imported from Japan, with adhesive imported from the United States. Some rubber membranes are also reinforced with fabric.
Applicable pressure range: In general, the Taeha pulse valve maintenance capsule can adapt to a pressure range of 0.1MPa to 0.8MPa.
Components included: Typically, each repair kit includes a diaphragm component, and some styles may come with one spring, such as the ITSPK1-4825/5825 repair kit and the MD03-50M repair kit.
Service life: Under normal operating conditions, the key components of the membrane in the maintenance kit have a service life of no less than 1 million cycles.
Operation time parameters: Taking the MD01-30 model as an example, the recommended opening time range is 50 milliseconds to 500 milliseconds, and the recommended pulse interval time is 1 minute or longer.
Packaging specifications: A single film kit is usually individually packaged in a plastic bag, and 10 to 20 sets will be packed into an outer packaging box.
Packing and Shipping:
Product Name: Pulse Valve Diaphragm
Description: This high-quality diaphragm is designed for use in pulse valves to ensure efficient and reliable operation.
Package Includes: 1 Pulse Valve Diaphragm
Shipping Information:
- Shipping Method: Standard Shipping
- Shipping Time: 3-5 business days
- Shipping Cost: $5.99
