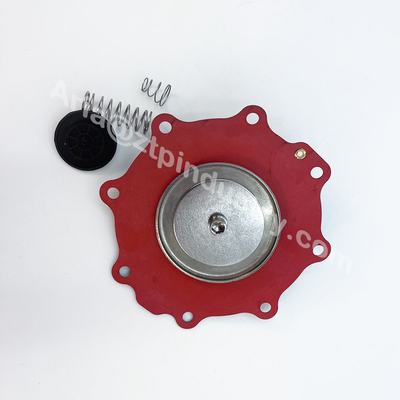

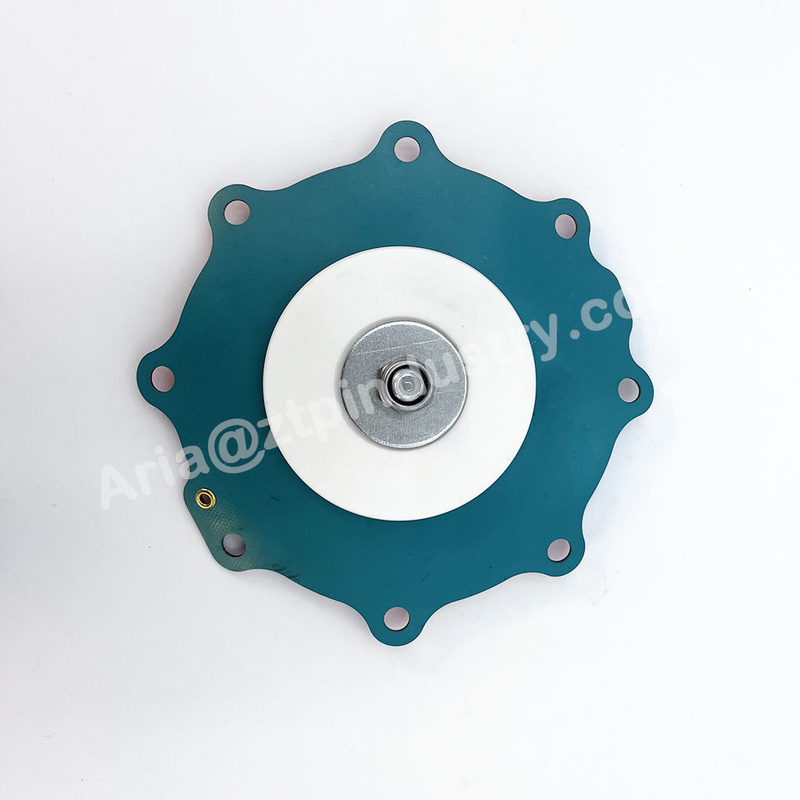

Red green TH-5820-B 2'' TH-5820-B TH-4820-B Diaphragm Valve Repair Kit

Red green TH-5820-B 2'' TH-5820-B TH-4820-B Diaphragm Valve Repair Kit

  • Red green TH-5820-B 2'' TH-5820-B TH-4820-B Diaphragm Valve Repair Kit
  • Red green TH-5820-B 2'' TH-5820-B TH-4820-B Diaphragm Valve Repair Kit
Red green TH-5820-B 2'' TH-5820-B TH-4820-B Diaphragm Valve Repair Kit
Product Details:
Brand Name: Taeha
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1-7Work Days After Payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000 Pieces/1Month
Contact Now
Detailed Product Description
Port Size: 3/4'' Product Name: Pulse Valve Diaphragm
Diaphragm Material: TPE, NBR, EPDM, FKM Seat Material: Nylon, Rubber, PTFE
Color: Black, Green, Red
Highlight:

2 inch diaphragm valve repair kit

,

pulse valve diaphragm replacement

,

TH-5820-B diaphragm repair kit

Product Description:

Connection Type

Type B: Threaded connection.

Type C: Compression fitting connection.

Type F: Flange inlet and hose clamp outlet connection.

Type M: Pulse valve integrated into the air manifold.

Type S: Straight threaded type with straight-through inlet and outlet; only available in a 2.5-inch pipe size.

Port Size Specification

Right-angle pulse valves: Typically 1–3 inches.

Submerged pulse valves: Typically 1–4 inches.

Flanged pulse valves: Typically 1–1.5 inches.

Quick-connect pulse valves: Typically 3/4–1.5 inches.

Straight-through pulse valves: Typically 3/4–2.5 inches.

Operating Environment Adaptability

Ambient temperature: Generally required to be -10°C to 55°C; for outdoor environments, the temperature can be as low as -20°C.

Relative humidity: Generally not more than 85%.

Working medium: Clean air.

Blowing Air Supply Pressure

Right-angle electromagnetic pulse valves: Generally 0.3–0.6 MPa.

Submerged electromagnetic pulse valves: Usually 0.2–0.3 MPa, and can also be used at 0.3–0.6 MPa.

Operating Voltage and Current of Electromagnetic Pilot Valve

When the voltage is DC24V, the current is 0.8A.

When the voltage is AC220V, the current is 0.14A.

When the voltage is AC110V, the current is 0.3A.

Opening Response Time

Under the nominal air supply pressure, when the solenoid valve operating voltage is 85% of the rated voltage, the opening response time of the electromagnetic pulse valve is less than 0.03 seconds.

Valve Body Material

Usually made of aluminum alloy.

Key Notes on Technical Terminology

Pulse Valve: A type of valve used in dust removal systems (e.g., baghouse dust collectors) to release compressed air in short, intense bursts (pulses) for cleaning filter bags.

Submerged Pulse Valve: A valve installed inside the air manifold (submerged in the air chamber), commonly used in large-scale dust collectors for more uniform air distribution.

Electromagnetic Pilot Valve: A small solenoid valve that controls the opening/closing of the main pulse valve by regulating air pressure, serving as the "control core" of the pulse valve.

Blowing Air Supply Pressure

The pressure of compressed air used to generate the cleaning pulse; it directly affects the dust removal efficiency of the filter system.

2'' TH-5820-B TH-4820-B Diaphragm Valve Repair Kit MD03-05



This is MD03-50 diaphragm repair kit for 2'' Tahea TH-5820-B, TH-4820-B Dust Collector Pulse Jet Valve.

1. Diaphragm Repair Kit: MD01-20, MD02-20, MD01-25, MD02-25, MD01-40, MD02-40, MD03-40, MD03-50, MD03-50M, MD03-60, MD04-60

2. Fitted Taeha Pulse Valves: TH-5820-B, TH-4820-B, TH-5825-B, TH-5820-C, TH-4820-C, TH-4825-B, TH-5825-C, TH-4825-C, TH-5840-F, TH-4840-F, TH-5825-M, TH-5840-B, TH-5440-B, TH-4840-B, TH-4440-B, TH-5840-C, TH-5440-C, TH-4840-C, TH-4440-C, TH-5850-F, TH-5450-F, TH-4850-F, TH-4450-F, TH-5440-M, TH-4440-M, TH-5450-B, TH-4450-B, TH-5450-M, TH-4450-M, TH-5460-B, TH-4460-B, TH-5460-S, TH-4460-S.

Technical Parameters:

Color Black, Green, Red
Product Name Pulse Valve Diaphragm
Seat Material Nylon, Rubber, PTFE
Diaphragm Material TPE, NBR, EPDM, FKM
Brand name Taeha
Port Size 3/4''


More Brand Replacement Diaphragm Repair Kit:

Red green TH-5820-B 2'' TH-5820-B TH-4820-B Diaphragm Valve Repair Kit 0Red green TH-5820-B 2'' TH-5820-B TH-4820-B Diaphragm Valve Repair Kit 1Red green TH-5820-B 2'' TH-5820-B TH-4820-B Diaphragm Valve Repair Kit 2

Goyen Type ASCO Type SBFEC Type

Red green TH-5820-B 2'' TH-5820-B TH-4820-B Diaphragm Valve Repair Kit 3Red green TH-5820-B 2'' TH-5820-B TH-4820-B Diaphragm Valve Repair Kit 4Red green TH-5820-B 2'' TH-5820-B TH-4820-B Diaphragm Valve Repair Kit 5

Turbo Type Mecair Type JOIL Type

Red green TH-5820-B 2'' TH-5820-B TH-4820-B Diaphragm Valve Repair Kit 6Red green TH-5820-B 2'' TH-5820-B TH-4820-B Diaphragm Valve Repair Kit 7Red green TH-5820-B 2'' TH-5820-B TH-4820-B Diaphragm Valve Repair Kit 8

Norgren Type AUTEL Type Taeha Type

Applications:

Compatible models:
ITSPK1-4825/5825 models are compatible with 1-inch pulse valves such as TH-4825-B, TH-5825-C, TH-5840-F, TH-5825-M, etc;
MD01-30 is compatible with TH-5830-B, TH-5430-B, and TH-4830-B pulse valves that are 1 and 1/4 inches in size;
MD03-50M is compatible with 2-inch TH-5450-B, TH-4450-B, TH-5450-M, TH-4450-M pulse valves, etc.

Material parameters:
The membrane is usually made of nitrile rubber (NBR) or fluororubber (FKM) material. Nitrile rubber generally has a temperature resistance range of -10 ℃ to 70 ℃, while fluororubber has a temperature resistance range of -10 ℃ to 200 ℃. Metal components and metal plates are generally made of stainless steel, and the membrane is made of nitrile rubber imported from Japan, with adhesive imported from the United States. Some rubber membranes are also reinforced with fabric.

Applicable pressure range:
In general, the Taeha pulse valve maintenance capsule can adapt to a pressure range of 0.1MPa to 0.8MPa.

Components included:
Typically, each repair kit includes a diaphragm component, and some styles may come with one spring, such as the ITSPK1-4825/5825 repair kit and the MD03-50M repair kit.

Service life:
Under normal operating conditions, the key components of the membrane in the maintenance kit have a service life of no less than 1 million cycles.

Operation time parameters:
Taking the MD01-30 model as an example, the recommended opening time range is 50 milliseconds to 500 milliseconds, and the recommended pulse interval time is 1 minute or longer.

Packaging specifications:
A single film kit is usually individually packaged in a plastic bag, and 10 to 20 sets will be packed into an outer packaging box.



Packing and Shipping:

Product Name: Pulse Valve Diaphragm

Description: This high-quality diaphragm is designed for use in pulse valves to effectively control the flow of air.

Package Includes: 1 Pulse Valve Diaphragm

Package Dimensions: 5 x 5 x 1 inches

Shipping Method: Standard Shipping

Shipping Time: Estimated delivery within 5-7 business days
