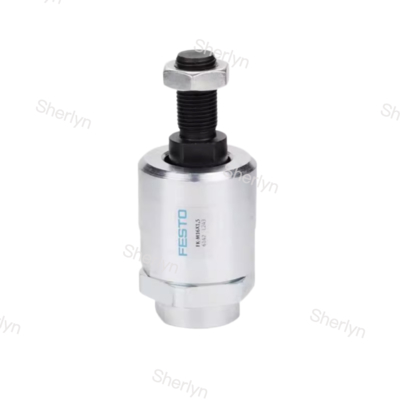

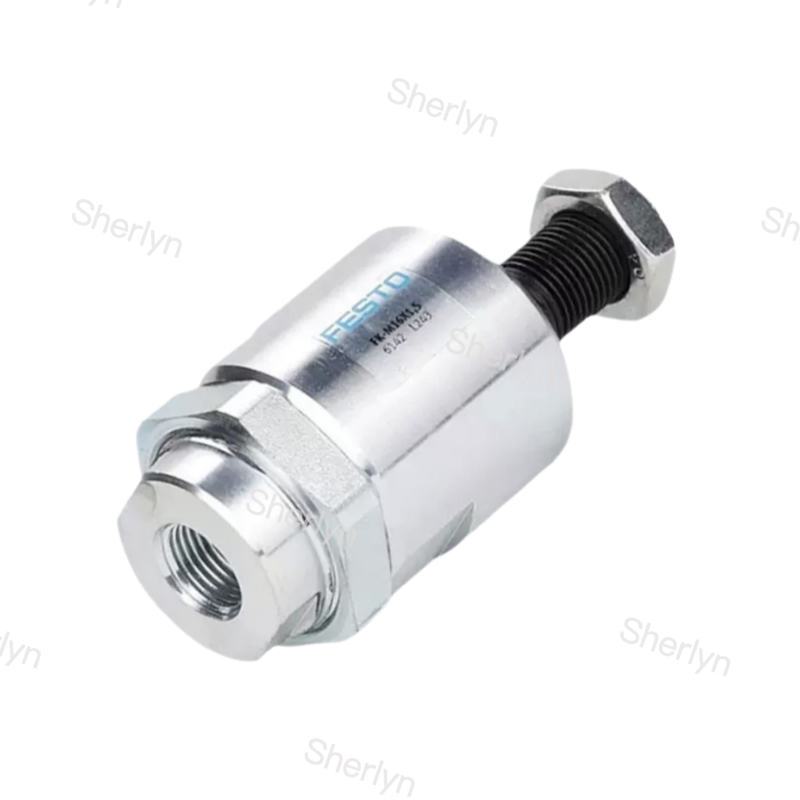

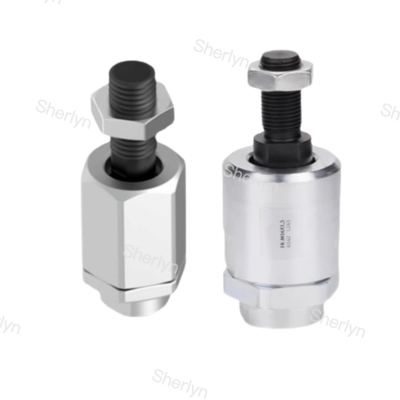

FK-M36X 2 FK SERIES FESTO CYLINDER FLOATING JOINT

FK-M36X 2 FK SERIES FESTO CYLINDER FLOATING JOINT

  • FK-M36X 2 FK SERIES FESTO CYLINDER FLOATING JOINT
  • FK-M36X 2 FK SERIES FESTO CYLINDER FLOATING JOINT
  • FK-M36X 2 FK SERIES FESTO CYLINDER FLOATING JOINT
FK-M36X 2 FK SERIES FESTO CYLINDER FLOATING JOINT
Product Details:
Brand Name: FESTO
Certification: CE
Model Number: FK-M36x 2
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiation
Packaging Details: Carton /As The Clients Require
Delivery Time: 1-7Work Days After Payment
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 5000 Pieces/1Month
Contact Now
Detailed Product Description
Highlight:

1Mpa pneumatic tubing connectors

,

heavy-duty pneumatic pipe fittings

,

pressure range pneumatic connectors

Product Description:

The primary role of the FESTO FK series floating joint is to establish a connection between the cylinder piston rod and the driven load. This component is designed to automatically compensate for potential radial offset and angular deviation during the connection process, typically ranging from ±0.3mm to ±0.7mm. The compensation capability significantly reduces stress, mitigates issues like piston rod seal wear and cylinder damage due to misalignment, thereby extending the lifespan of the entire pneumatic system.

Manufactured from robust materials like galvanized steel, stainless steel, or surface hardened steel components, the FK series joints undergo nickel plating treatment to confer moderate to good corrosion resistance. This feature allows them to function effectively in general industrial settings and even in environments with some level of corrosion risk.

The design of FK series floating joints excludes copper (with copper content exceeding 1% by mass) and PTFE (polytetrafluoroethylene), making them suitable for applications sensitive to copper ions and specific chemicals, like certain chemical processes or scenarios where copper materials could trigger electrochemical corrosion. These joints operate within a broad temperature range, typically from -40°C to +150°C, ensuring stable performance in cold, low-temperature settings as well as high-temperature workshops. With multiple thread specifications available (such as M10x1.25, M16x1.5, M20x1.5, etc.), FK connectors can accommodate various cylinder piston rod thread sizes and load connection ends.


Applications:

FESTO FK series floating joints are widely used in various industrial automation fields. They can play an important role in situations where cylinders are used and there is a certain installation error or need to compensate for eccentricity.

Industrial automation and pneumatic systems: This is the most traditional application area for FK series joints. It is used to connect the cylinder piston rod with any load that requires cylinder drive, such as fixtures, robotic arms, conveyor belt baffles, flipping mechanisms, etc. It can ensure that the cylinder can still work smoothly and avoid jamming even when there are slight parallelism or coaxiality errors between the cylinder and the load mounting base.

Lithium ion battery production and assembly: The search results specifically mention that this connector is suitable for lithium ion battery production and assembly. In such high-precision manufacturing processes, the stability and reliability of equipment operation are crucial, and FK joints can help compensate for errors and ensure smooth production processes.

For precision equipment with high requirements for installation alignment: In some equipment that requires high-precision positioning and repeatability, using FK floating joints can eliminate internal forces caused by processing and assembly errors, making the movement smoother and positioning more accurate.

In situations where there is thermal expansion or vibration: During the operation of the equipment, if there is thermal expansion or contraction due to temperature changes, or slight vibration caused by motion, the floating ability of the FK joint can absorb these small displacement changes and maintain the reliability of the connection.

Medium corrosive environment: With its material's corrosion resistance, it can also be used in environments where there is a certain risk of corrosion but no need for all stainless steel joints, such as certain chemical, food processing, or humid industrial environments.

FK-M36X 2 FK SERIES FESTO CYLINDER FLOATING JOINT 0

FK-M36X 2 FK SERIES FESTO CYLINDER FLOATING JOINT 1

FK-M36X 2 FK SERIES FESTO CYLINDER FLOATING JOINT 2


Support and Services:

Our Product Technical Support team is dedicated to providing assistance with any inquiries or issues related to our Pneumatic Pipe Fittings. Whether you need help with installation, troubleshooting, or product specifications, our team is here to support you.

In addition to technical support, we also offer a range of services to ensure the optimal performance of our Pneumatic Pipe Fittings. These services may include maintenance programs, training sessions, and product customization options to meet your specific needs.


Packing and Shipping:

Product Packaging:

Our Pneumatic Pipe Fittings are carefully packaged to ensure their safe delivery to you. Each fitting is individually wrapped in protective material to prevent any damage during transportation. The fittings are then placed in a sturdy cardboard box, and additional cushioning material is added to absorb any shocks or impacts during shipping.

Shipping:

We offer fast and reliable shipping for our Pneumatic Pipe Fittings. Orders are processed promptly, and once shipped, you will receive a tracking number to monitor the delivery status of your package. We partner with trusted shipping carriers to ensure that your fittings arrive safely and on time.
