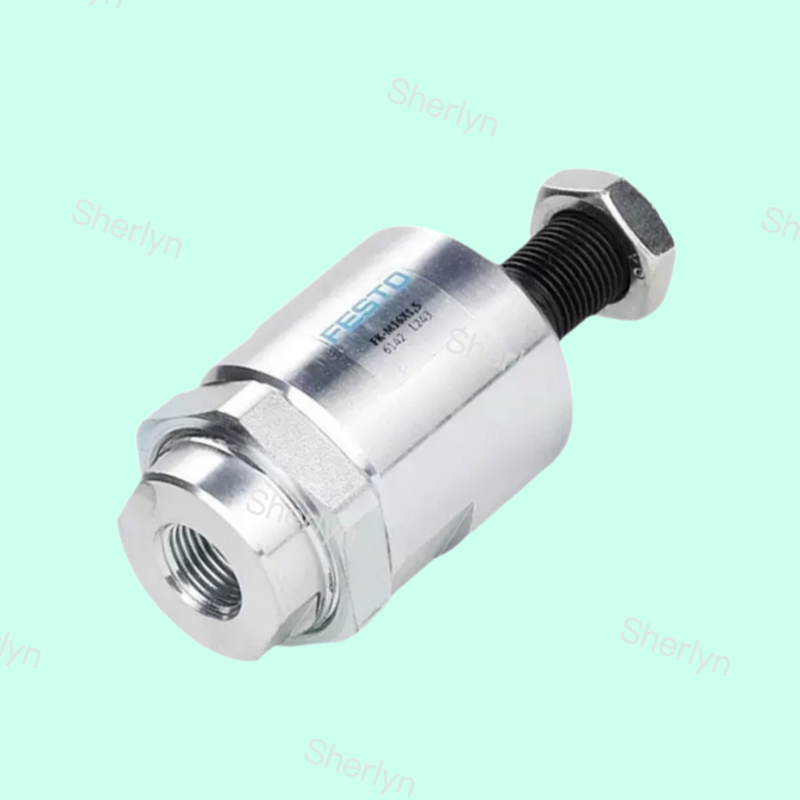

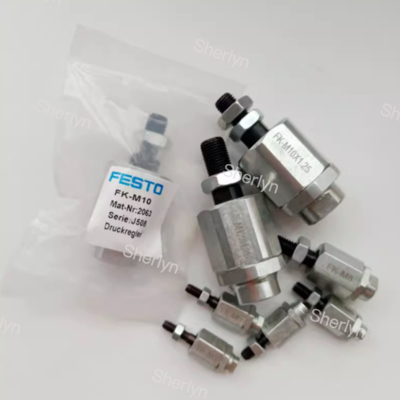

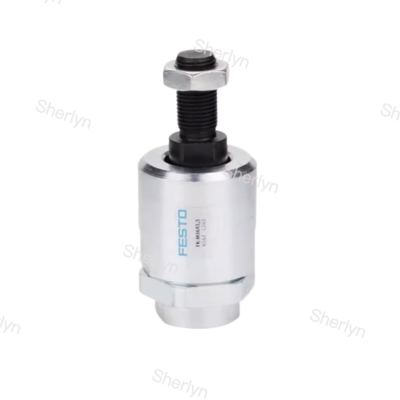

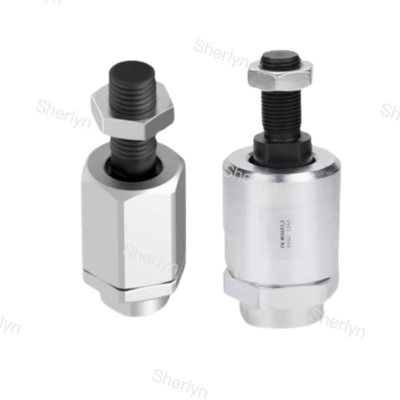

Festo FK-M16X1.5 Floating Joint FK Series

Product Description:

The primary function of the FESTO FK series floating joint is to connect the cylinder piston rod with the driven load. It can automatically compensate for possible radial offset and angular deviation during the connection process, usually up to ± 0.3mm to ± 0.7mm. This compensation capability effectively reduces stress, prevents issues like piston rod seal wear and cylinder damage caused by poor alignment, thus extending the service life of the entire pneumatic system.

This series of joints is typically constructed using sturdy materials like galvanized steel, stainless steel, or surface hardened steel components. They are treated with nickel plating to provide moderate to good corrosion resistance, suitable for general industrial environments and situations with certain corrosion risks.

The FK series floating joint design does not contain copper (with copper content exceeding 1% by mass) or PTFE (polytetrafluoroethylene), making it suitable for applications sensitive to copper ions and specific chemicals, like certain chemical processes or situations where copper materials prevent electrochemical corrosion.

It has a wide working temperature range, typically between -40 °C and +150 °C, allowing it to maintain stable performance in both cold and low-temperature environments as well as high-temperature workshops. FK connectors offer multiple thread specifications (such as M10x1.25, M16x1.5, M20x1.5, etc.) to meet the needs of different sizes of cylinder piston rod threads and load connection ends.

Applications:

FESTO FK Series Floating Joints in Industrial Applications

The FESTO FK series floating joints are extensively utilized across various industrial automation fields. They play a significant role in scenarios where cylinders are employed and there is a need to compensate for installation errors or eccentricity.

Industrial Automation and Pneumatic Systems:

This is the most traditional application area for FK series joints. They are commonly used to link the cylinder piston rod with any load requiring cylinder drive, such as fixtures, robotic arms, conveyor belt baffles, flipping mechanisms, etc. These joints ensure smooth cylinder operation and prevent jamming even in cases of slight parallelism or coaxiality errors between the cylinder and the load mounting base.

Lithium Ion Battery Production and Assembly:

The FK joints are particularly suitable for lithium ion battery production and assembly processes. In high-precision manufacturing environments, where equipment operation stability and reliability are vital, these joints help compensate for errors, ensuring smooth production processes.

Precision Equipment with High Installation Alignment Requirements:

For equipment demanding precise positioning and repeatability, the use of FK floating joints can eliminate internal forces generated by processing and assembly errors. This results in smoother movement and more accurate positioning.

Thermal Expansion or Vibration Conditions:

During equipment operation, if there are thermal expansion or contraction due to temperature fluctuations, or slight vibrations from motion, the floating ability of FK joints can absorb these small displacement changes, maintaining connection reliability.

Medium Corrosive Environments:

Due to their material's corrosion resistance, FK joints can also be employed in environments with moderate corrosion risks where all stainless steel joints are not necessary. Such environments include certain chemical, food processing, or humid industrial settings.
